Wilderness Model

  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the bumper face front. Ref. to EXTERIOR/INTERIOR TRIM>FRONT BUMPER>REMOVAL>BUMPER FACE .

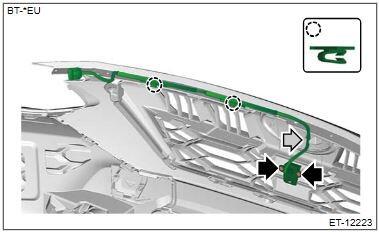

  3. Remove the front view camera assembly.
    1. Remove the cable clamps.
    2. Remove the screws and remove the front view camera assembly from the front grille assembly clamp.
    G00658141Courtesy of SUBARU OF AMERICA, INC.
