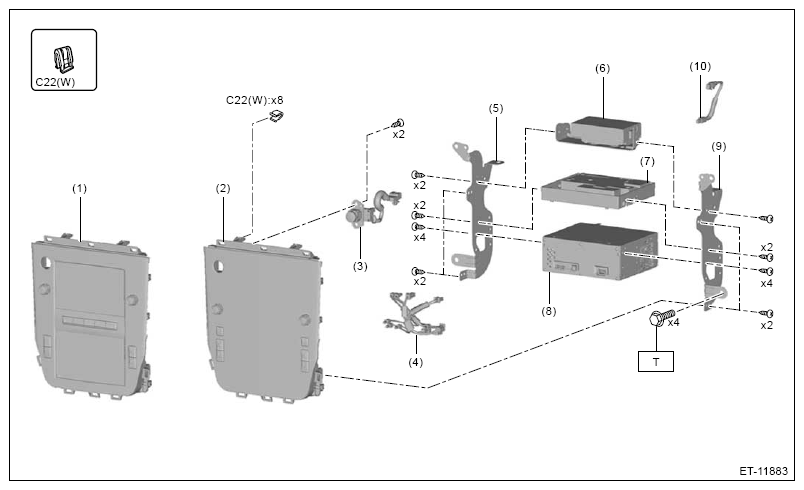

Center Information Display Assembly
| (1) | Center information display (model with dual 7.0-inch display) |
| (2) | Center information display (model with 11.6-inch display) |
| (3) | Switch hazard |
| (4) | Cord ASSY CCM |
| (5) | Unit bracket LH |
| (6) | Backup unit ASSY |
| (7) | Data communication module |
| (8) | Cockpit control module |
| (9) | Unit bracket RH |
| (10) | Data communication module cord |
Tightening torque: N.m (kgf-m, ft-lb)
T: 7.5 (0.8, 5.5)
