Motor Layout

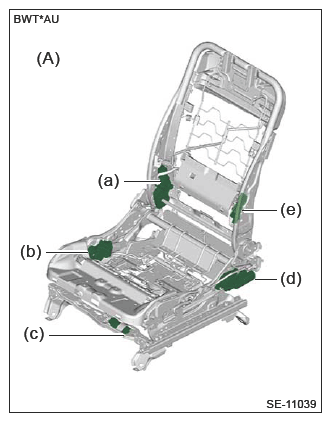

G16386490Courtesy of SUBARU OF AMERICA, INC.

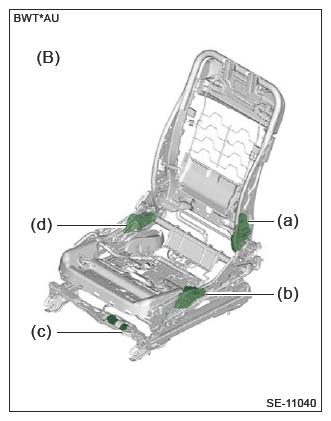

G16386491Courtesy of SUBARU OF AMERICA, INC.
(A) Driver's seat
(B) Passenger's seat
(a) Reclining motor
(b) Tilt motor
(c) Slide motor
(d) Lifter motor
(e) Lumbar motor
