Battery Cable Assembly: Installation

WARNING: This page is about a different variant/trim than selected.
  1. Set the battery cable assembly, and secure the battery cable assembly to the bracket with claw.
    G13620752Courtesy of SUBARU OF AMERICA, INC.
  2. Secure the battery cable assembly with the claw (E) and clip (D).
  3. Connect the connector (C).
  4. Connect the ground terminal (B) to the cable stay.
    CAUTION: As residual anti-rust grease or dirt on the threads (bolts and nuts), terminals and seating surfaces may cause overtorque, clean and degrease them.

    Tightening torque:

    14 N.m (1.4 kgf-m, 10.3 ft-lb)

  5. Connect the terminal (A) to the starter.
    CAUTION: As residual anti-rust grease or dirt on the threads (bolts and nuts), terminals and seating surfaces may cause overtorque, clean and degrease them.

    Tightening torque:

    11 N.m (1.1 kgf-m, 8.1 ft-lb)

    G13620751Courtesy of SUBARU OF AMERICA, INC.
  6. After connecting the terminal B, apply a thin coat of anti-rust grease to the terminal section.
    CAUTION: This procedure is required to prevent rust and suppress sulfation.

    Preparation items:

    Grease: Viscotech R174 or equivalent Ref. to RECOMMENDED MATERIALS>GREASE>STARTING/CHARGING SYSTEM

    G00685908Courtesy of SUBARU OF AMERICA, INC.
    (A) Anti-rust grease application area
  7. After connecting the ground terminal, apply a thin coat of anti-rust grease to the terminal section.
    CAUTION: This procedure is required to prevent rust and suppress sulfation.

    Preparation items:

    Grease: Viscotech R174 or equivalent Ref. to RECOMMENDED MATERIALS>GREASE>STARTING/CHARGING SYSTEM

    G00685909Courtesy of SUBARU OF AMERICA, INC.
    (A) Anti-rust grease application area
  8. Secure the battery cable assembly with the clip (A) and clip (B).
  9. Connect the connector (C), connector (D), connector (E), and the terminal (F).
    CAUTION: As residual anti-rust grease or dirt on the threads (bolts and nuts), terminals and seating surfaces may cause overtorque, clean and degrease them.

    Tightening torque:

    15.5 N.m (1.6 kgf-m, 11.4 ft-lb)

  10. Install the intercooler. Ref. to INTAKE (INDUCTION) (H4DOTC)>INTERCOOLER>INSTALLATION .
    G13619565Courtesy of SUBARU OF AMERICA, INC.
  11. After connecting the terminal B, apply a thin coat of anti-rust grease to the terminal section.
    CAUTION: This procedure is required to prevent rust and suppress sulfation.

    Preparation items:

    Grease: Viscotech R174 or equivalent Ref. to RECOMMENDED MATERIALS>GREASE>STARTING/CHARGING SYSTEM

    G00685910Courtesy of SUBARU OF AMERICA, INC.
    (A) Anti-rust grease application area
  12. Install the V-belt cover.
    NOTE:
    • Check the grommet for peel-off or disengagement.
    • Be careful not to deform the bracket during installation.

    Tightening torque:

    7 N.m (0.7 kgf-m, 5.2 ft-lb)

    G13619537Courtesy of SUBARU OF AMERICA, INC.
  13. Connect the terminals (A), (B), and (C) to the slow blow fuse (D).

    Tightening torque:

    5.5 N.m (0.6 kgf-m, 4.1 ft-lb)

    G16385284Courtesy of SUBARU OF AMERICA, INC.
  14. Set the terminal of battery cable assembly to the terminal base.
    G16383928Courtesy of SUBARU OF AMERICA, INC.
  15. Connect the slow blow fuse to the terminal base.

    Tightening torque:

    7.5 N.m (0.8 kgf-m, 5.5 ft-lb)

    G13619483Courtesy of SUBARU OF AMERICA, INC.
  16. Connect the terminal (C), terminal (B) and terminal (A).
    CAUTION: As residual anti-rust grease or dirt on the threads (bolts and nuts), terminals and seating surfaces may cause overtorque, clean and degrease them.

    Tightening torque:

    T1: 7.5 N.m (0.8 kgf-m, 5.5 ft-lb)

    T2: 14 N.m (1.4 kgf-m, 10.3 ft-lb)

    G16385296Courtesy of SUBARU OF AMERICA, INC.

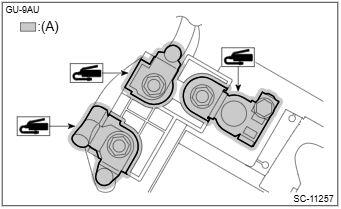

  17. After connecting each terminal, apply a thin coat of anti-rust grease to the terminal section.
    CAUTION: This procedure is required to prevent rust and suppress sulfation.

    Preparation items:

    Grease: Viscotech R174 or equivalent Ref. to RECOMMENDED MATERIALS>GREASE>STARTING/CHARGING SYSTEM

    G00685918Courtesy of SUBARU OF AMERICA, INC.
    (A) Anti-rust grease application area
  18. Install the battery cable assembly to the clip (E).
  19. Install the battery cable holder (D), and connect the ground terminal (C).
    CAUTION:
    • Install the battery sensor and battery cable assembly without applying an excessive force.
    • As residual anti-rust grease or dirt on the threads (bolts and nuts), terminals and seating surfaces may cause overtorque, clean and degrease them.
    • Do not apply anti-rust grease to the battery sensor and the ground terminal.

    Tightening torque:

    7.5 N.m (0.8 kgf-m, 5.5 ft-lb)

  20. Install the ground cable to the clip (B), and connect the ground terminal (A).
    CAUTION: As residual anti-rust grease or dirt on the threads (bolts and nuts), terminals and seating surfaces may cause overtorque, clean and degrease them.

    Tightening torque:

    13 N.m (1.3 kgf-m, 9.6 ft-lb)

    G16385280Courtesy of SUBARU OF AMERICA, INC.
  21. After connecting the ground terminal, apply a thin coat of anti-rust grease to the terminal section.
    CAUTION: This procedure is required to prevent rust and suppress sulfation.

    Preparation items:

    Grease: Viscotech R174 or equivalent Ref. to RECOMMENDED MATERIALS>GREASE>STARTING/CHARGING SYSTEM

    G00685919Courtesy of SUBARU OF AMERICA, INC.
    (A) Anti-rust grease application area
