Front Side Door Window Switch Replacement

WARNING: This page is about a different car, the 2007 Suzuki XL7. However, it is still accessible from the selected car via links, so may be relevant.

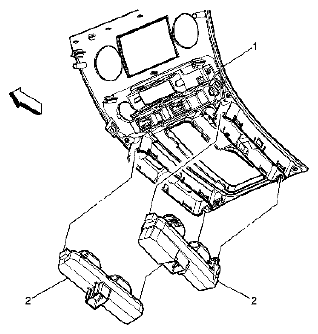

Fig 1: Identifying Instrument Panel Lower Trim Bezel & Power Window Switch Assembly

Courtesy of SUZUKI OF AMERICA CORP.

REFERENCE TABLE

Callout	Component Name
1	Instrument Panel Lower Trim Bezel Refer to INSTRUMENT PANEL ACCESSORY TRIM PLATE REPLACEMENT .
2	Power Window Switch Assembly Tip: Use a flat-bladed tool to pry switch from trim bezel.
