Rear Seat Audio Control Replacement

WARNING: This page is about a different car, the 2007 Suzuki XL7. However, it is still accessible from the selected car via links, so may be relevant.

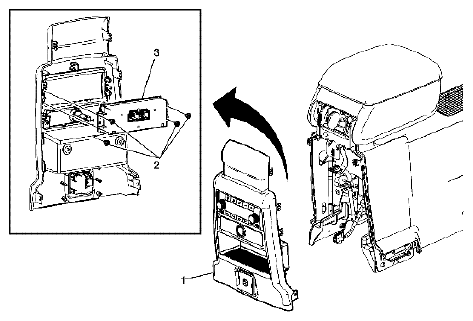

Fig 1: Identifying Rear Console Trim Plate Assembly, Auxiliary Heater & A/C & Radio Control Module Assembly & Screws

Courtesy of SUZUKI OF AMERICA CORP.

REAR SEAT AUDIO CONTROL REPLACEMENT REFERENCE

Callout	Component Name
1	Rear Console Trim Plate Assembly Refer to CONSOLE REAR TRIM PLATE REPLACEMENT .
2	Auxiliary Heater and A/C and Radio Control Module Screw (Qty: 4) CAUTION: Refer to FASTENER NOTICE . Tightening torque 2 N.m (18 lb in)
3	Auxiliary Heater and A/C and Radio Control Module Assembly
