Video Display Replacement

WARNING: This page is about a different car, the 2007 Suzuki XL7. However, it is still accessible from the selected car via links, so may be relevant.

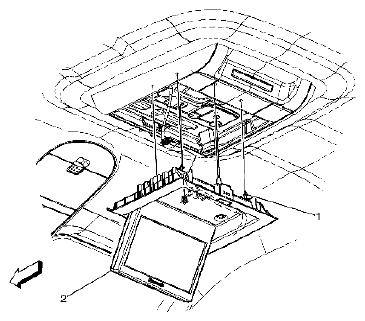

Fig 1: Identifying Video Display Assembly & Screws

Courtesy of SUZUKI OF AMERICA CORP.

VIDEO DISPLAY REPLACEMENT REFERENCE

Callout	Component Name
1	Video Display Assembly Screw (Qty: 4) Tightening torque 2 N.m (18 lb in) NOTE: The bolts have captured washers on them to keep them as part of the video display assembly, ensure that the washers are still on the assembly when reinstalling the display assembly.
2	Video Display Assembly Pull down to disengage the retainer clip and remove from the vehicle. Disconnect the electrical connector.
