Disassembled Views

WARNING: This page is about a different car, the 2007 Suzuki XL7. However, it is still accessible from the selected car via links, so may be relevant.

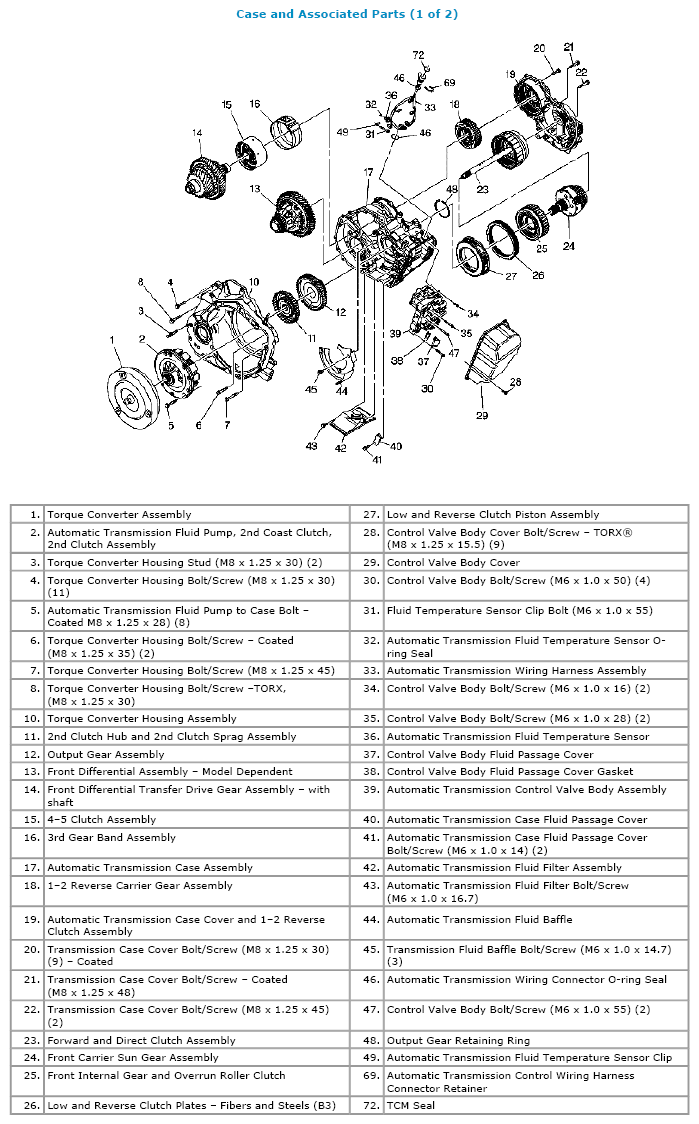

Fig 1: Disassembling Views Of Case & Associated Parts (1 Of 2)

G04845830

Courtesy of SUZUKI OF AMERICA CORP.

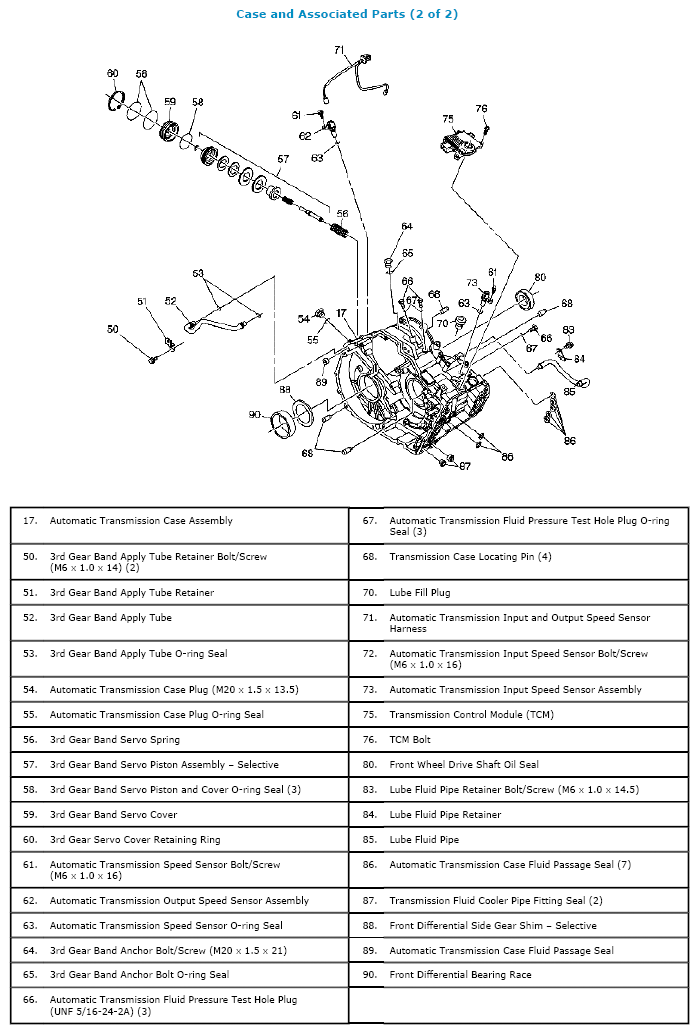

Fig 2: Disassembling Views Of Case & Associated Parts (2 Of 2)

G04845831

Courtesy of SUZUKI OF AMERICA CORP.

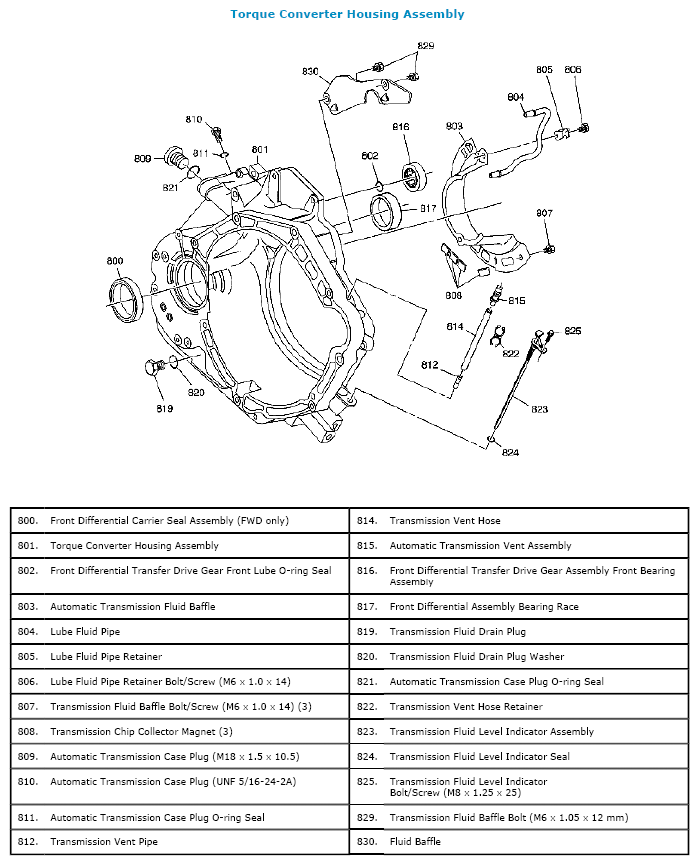

Fig 3: Disassembling Views Of Torque Converter Housing Assembly

G04845832

Courtesy of SUZUKI OF AMERICA CORP.

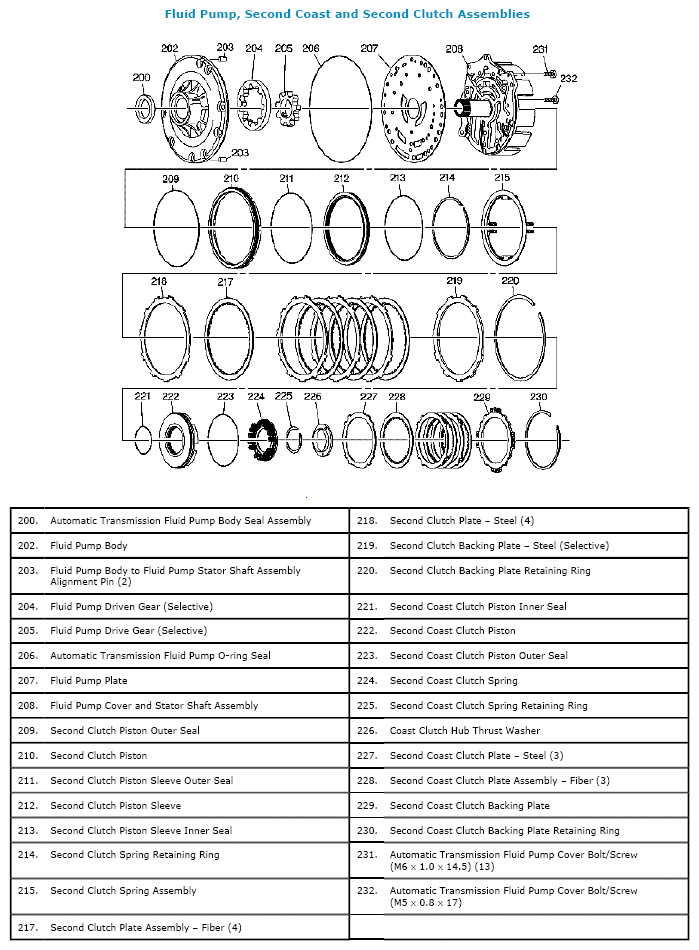

Fig 4: Disassembling Views Of Fluid Pump, Second Coast & Second Clutch Assemblies

G04845833

Courtesy of SUZUKI OF AMERICA CORP.

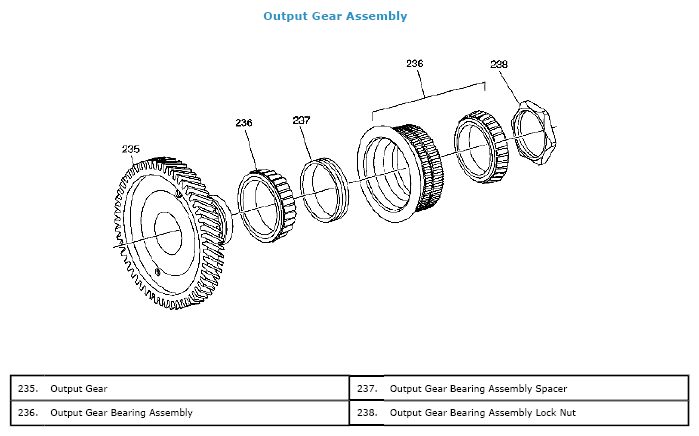

Fig 5: Disassembling Views Of Output Gear Assembly

G04845834

Courtesy of SUZUKI OF AMERICA CORP.

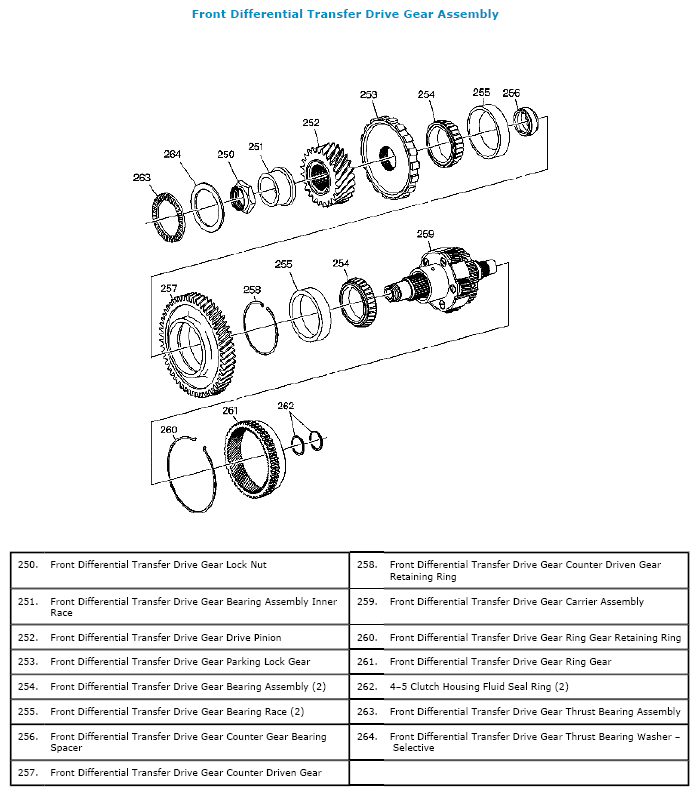

Fig 6: Disassembling Views Of Front Differential Transfer Drive Gear Assembly

G04845835

Courtesy of SUZUKI OF AMERICA CORP.

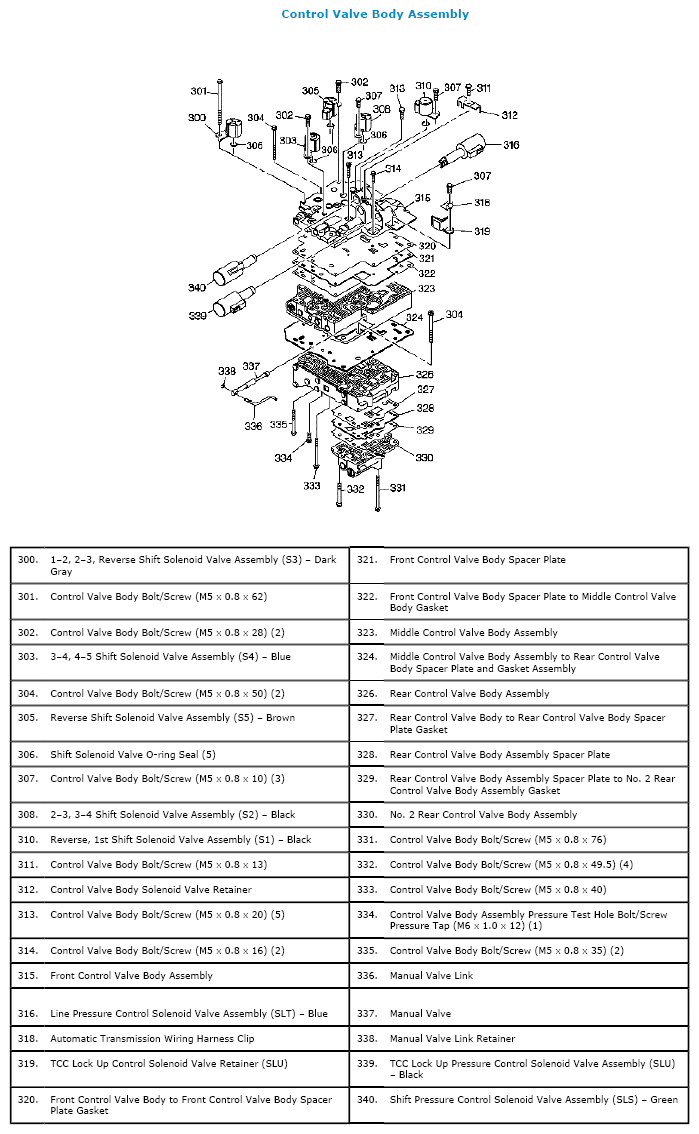

Fig 7: Disassembling Views Of Control Valve Body Assembly

G04845836

Courtesy of SUZUKI OF AMERICA CORP.

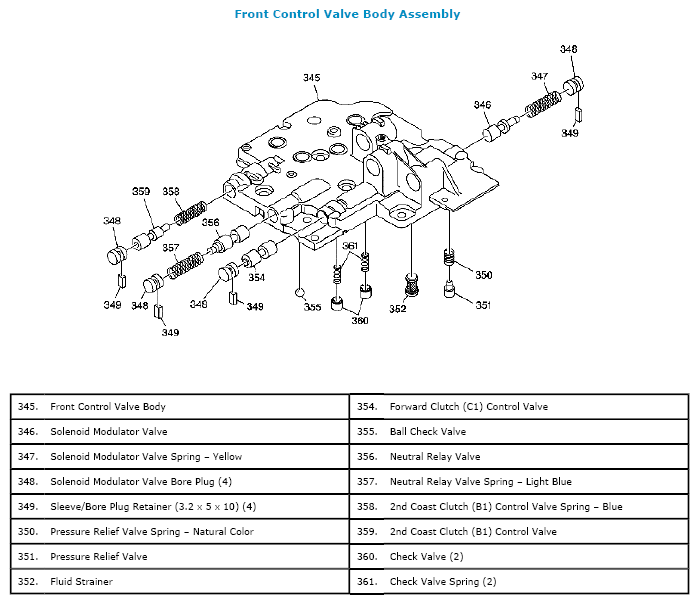

Fig 8: Disassembling Views Of Front Control Valve Body Assembly

G04845837

Courtesy of SUZUKI OF AMERICA CORP.

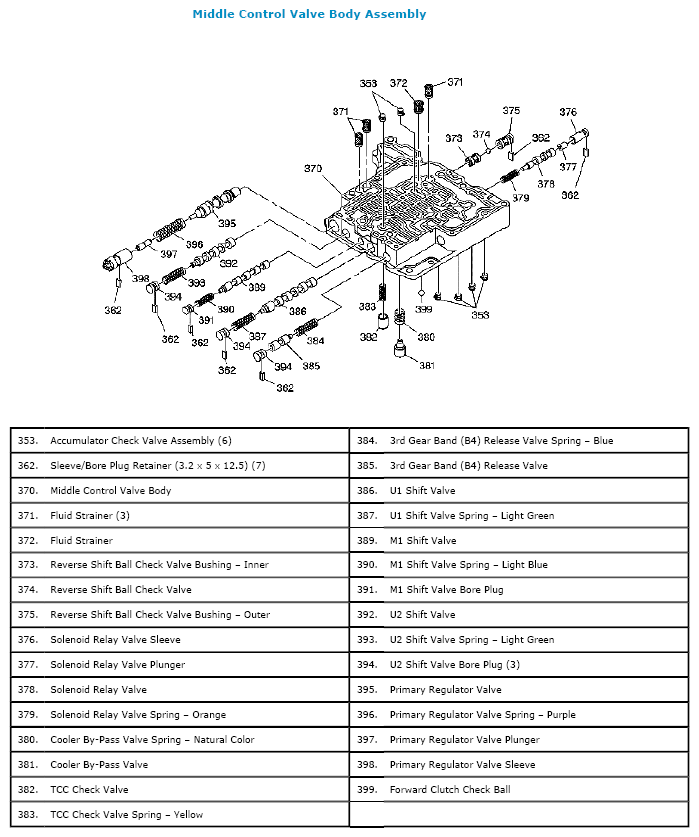

Fig 9: Disassembling Views Of Middle Control Valve Body Assembly

G04845838

Courtesy of SUZUKI OF AMERICA CORP.

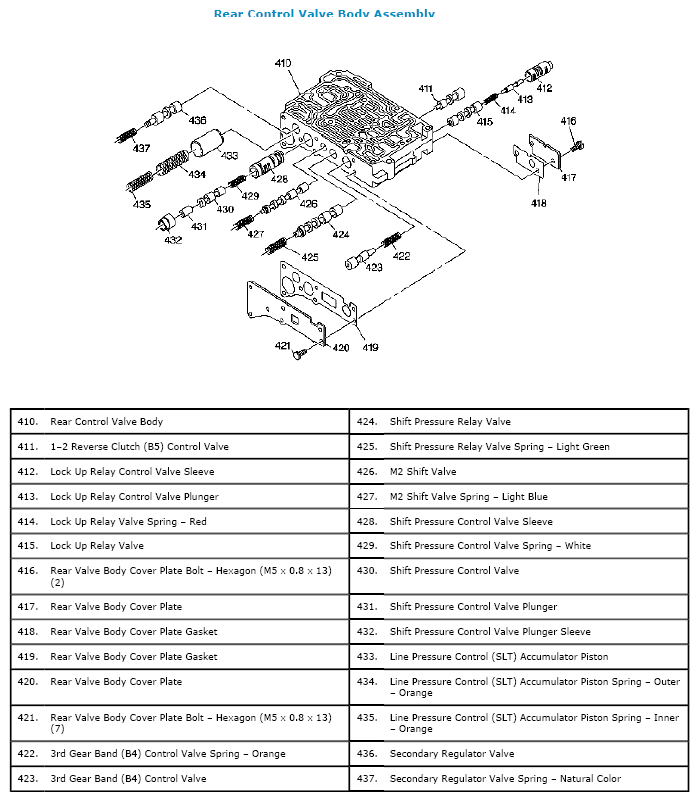

Fig 10: Disassembling Views Of Rear Control Valve Body Assembly

G04845839

Courtesy of SUZUKI OF AMERICA CORP.

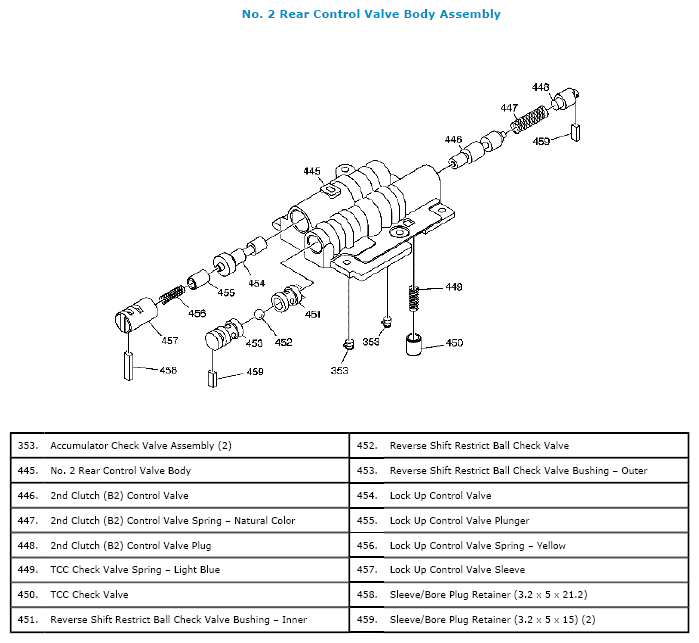

Fig 11: Disassembling Views Of No. 2 Rear Control Valve Body Assembly

G04845840

Courtesy of SUZUKI OF AMERICA CORP.

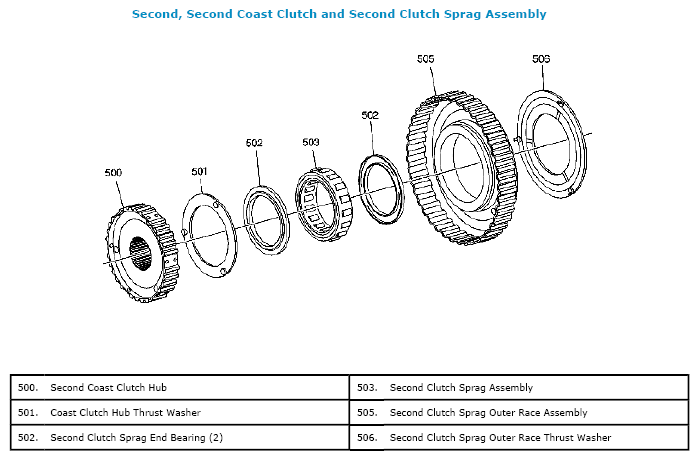

Fig 12: Disassembling Views Of Second, Second Coast Clutch & Second Clutch Sprag Assembly

G04845841

Courtesy of SUZUKI OF AMERICA CORP.

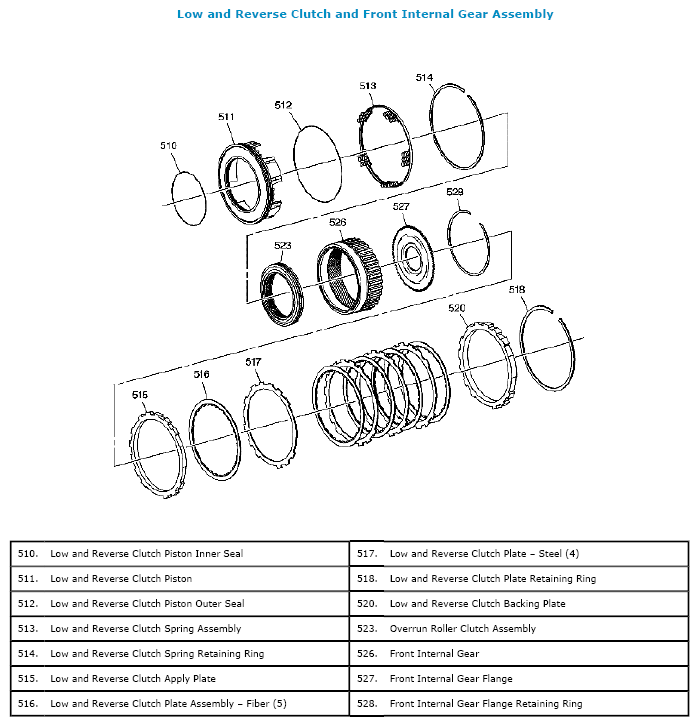

Fig 13: Disassembling Views Of Low & Reverse Clutch & Front Internal Gear Assembly

G04845842

Courtesy of SUZUKI OF AMERICA CORP.

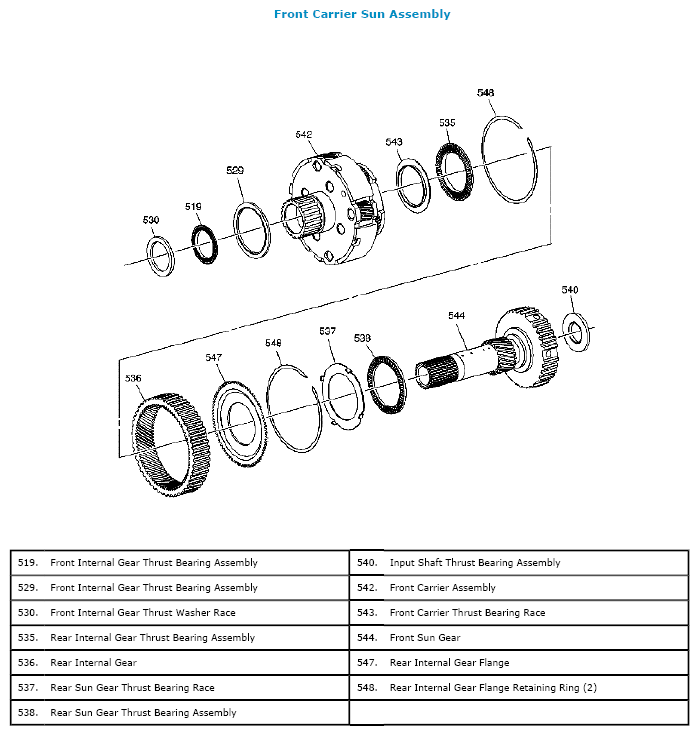

Fig 14: Disassembling Views Of Front Carrier Sun Assembly

G04845843

Courtesy of SUZUKI OF AMERICA CORP.

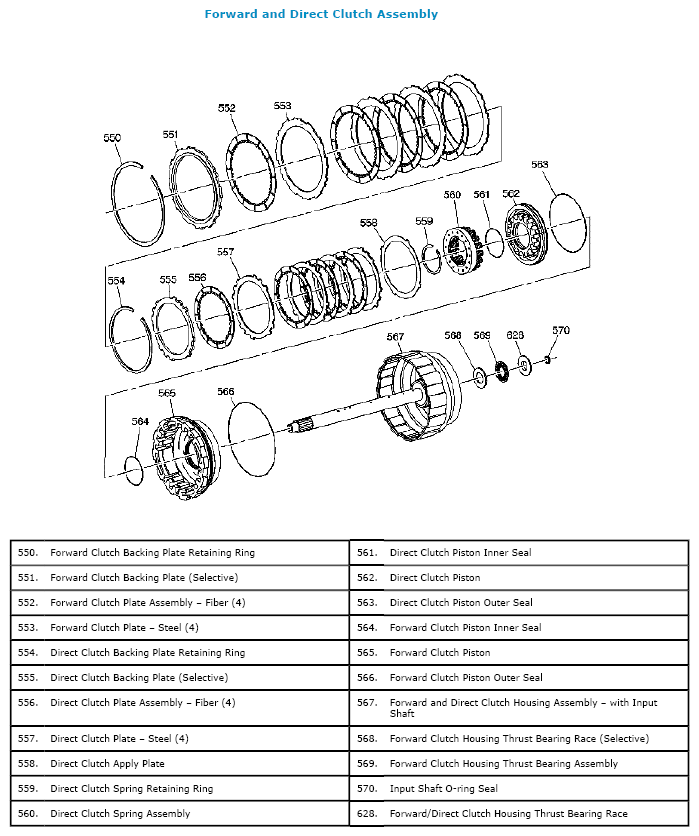

Fig 15: Disassembling Views Of Forward & Direct Clutch Assembly

G04845844

Courtesy of SUZUKI OF AMERICA CORP.

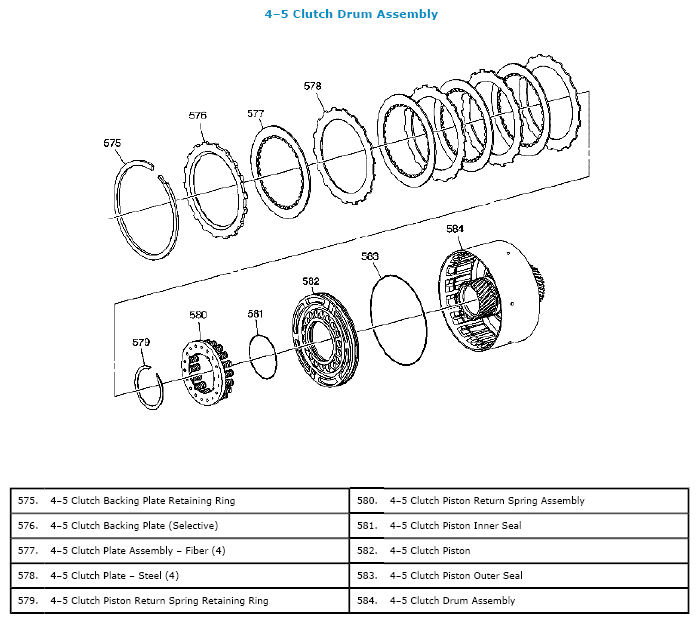

Fig 16: Disassembling Views Of 4-5 Clutch Drum Assembly

G04845845

Courtesy of SUZUKI OF AMERICA CORP.

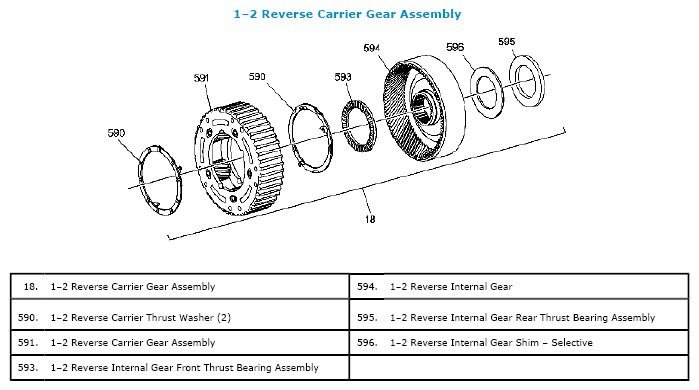

Fig 17: Disassembling Views Of 1-2 Reverse Carrier Gear Assembly

G04845846

Courtesy of SUZUKI OF AMERICA CORP.

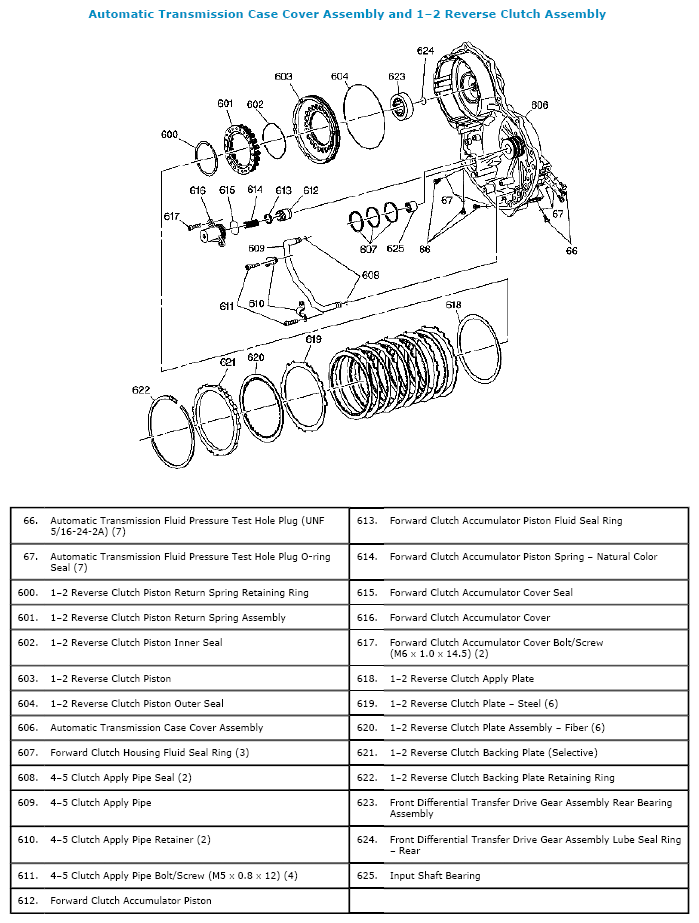

Fig 18: Disassembling Views Of Automatic Transmission Case Cover Assembly & 1-2 Reverse Clutch Assembly

G04845847

Courtesy of SUZUKI OF AMERICA CORP.

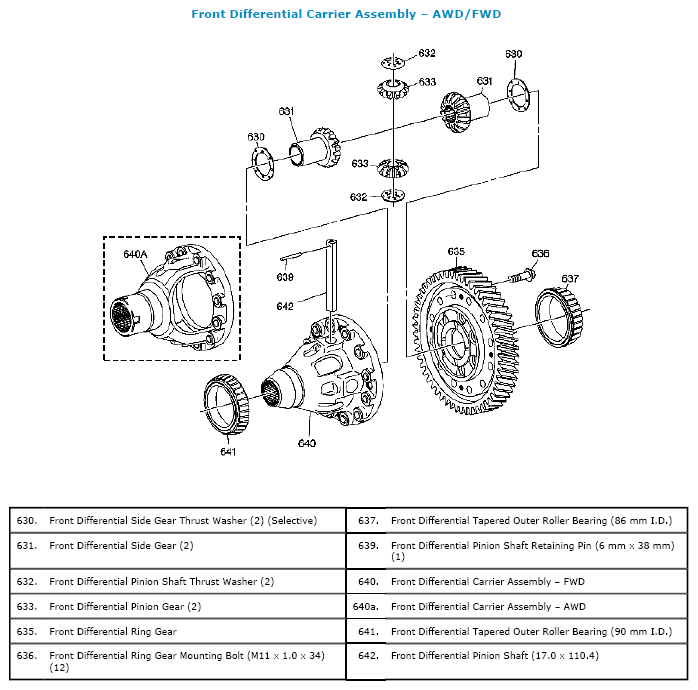

Fig 19: Disassembling Views Of Front Differential Carrier Assembly - AWD/FWD

G04845848

Courtesy of SUZUKI OF AMERICA CORP.

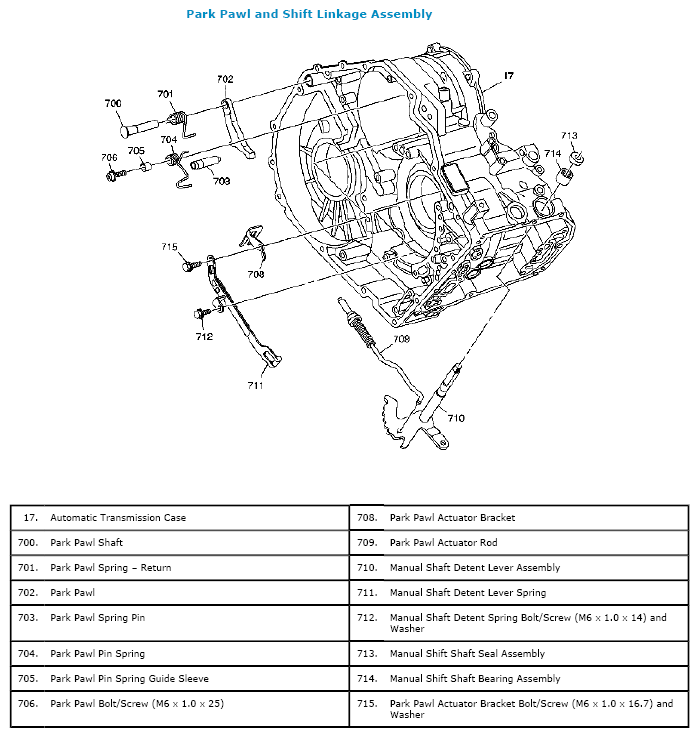

Fig 20: Disassembling Views Of Park Pawl & Shift Linkage Assembly

G04845849

Courtesy of SUZUKI OF AMERICA CORP.
