Fuel System Pressure Release
WARNING:
ALWAYS relieve fuel pressure before disconnecting any fuel injection-related component. DO NOT
allow fuel to contact engine or electrical components.
- Place transmission in Neutral (M/T) or Park (A/T). Set parking brake and block drive wheels. Remove coolant reservoir from bracket. Remove main fuse box cover.

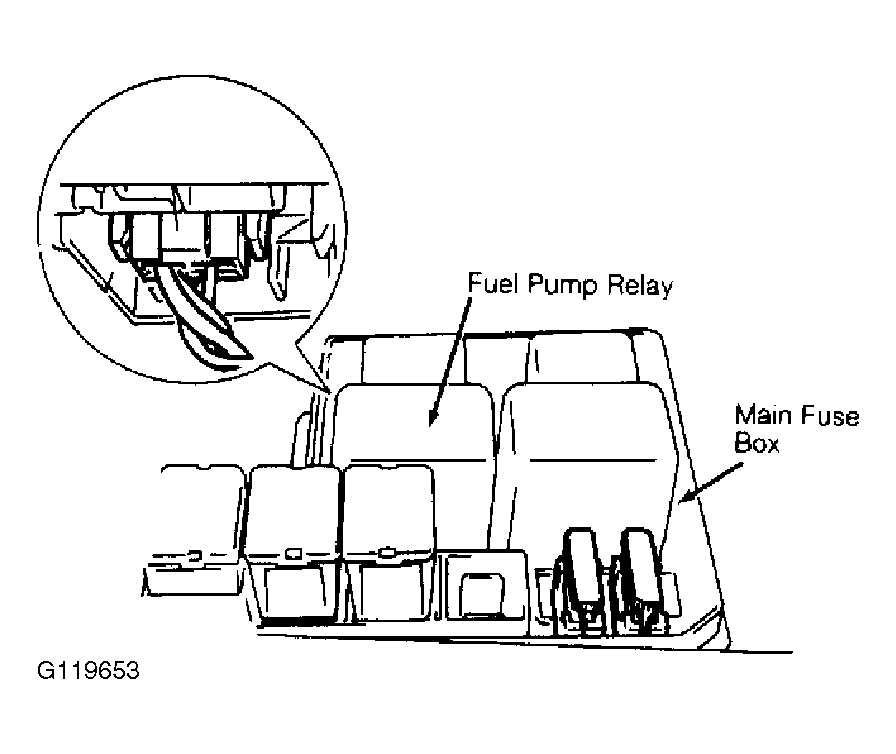

- Main fuse box is located near battery. Disconnect main fuse box from body. Disconnect fuel pump relay connector. See Fig 1 . Remove fuel filler cap to release fuel vapor pressure in fuel tank. Reinstall fuel filler cap.
- Start engine and run until engine runs out of fuel. Crank engine 2-3 times for about 3 seconds to dissipate fuel pressure in lines.
