Code 24 - Speed Sensor Circuit Check

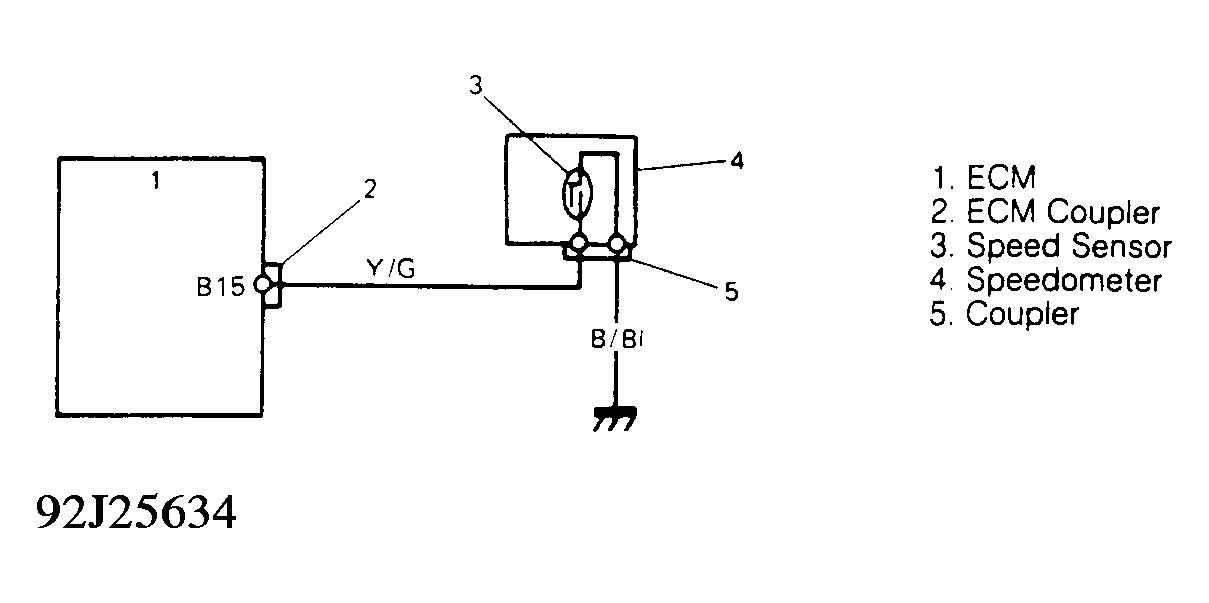

Fig 1: Code 24 Schematic, Speed Sensor Circuit Check
Courtesy of SUZUKI OF AMERICA CORP.

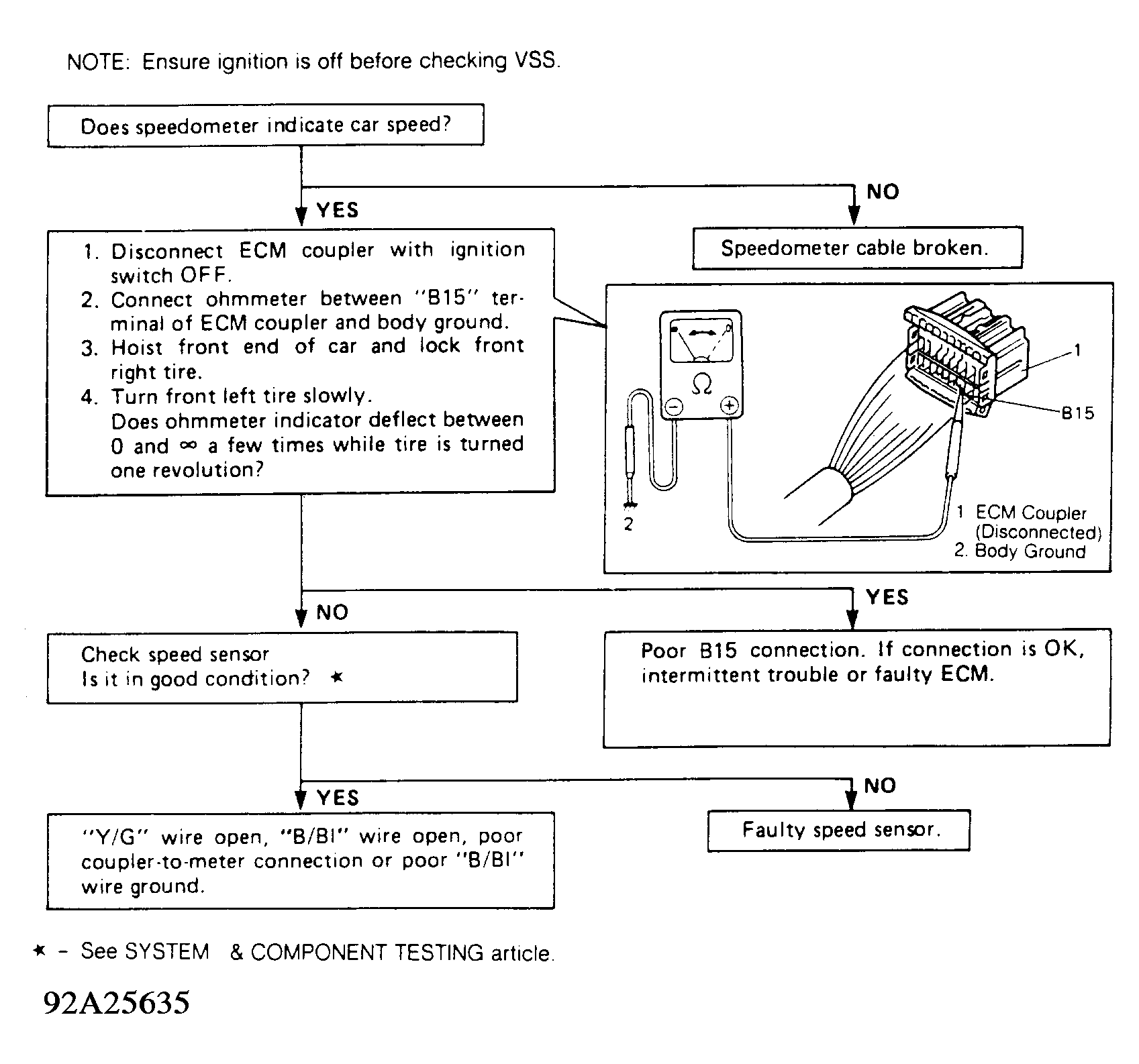

Fig 2: Code 24 Flow Chart, Speed Sensor Circuit Check
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
