Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location | ||
|---|---|---|---|
| A/C In-Line Fuse | On right front inner fender panel, in front of battery. | ||
| Fuse Blocks | |||
| Engine Compartment | On right front inner fender panel, near shock tower. See Figure . | ||
| Passenger Compartment | |||

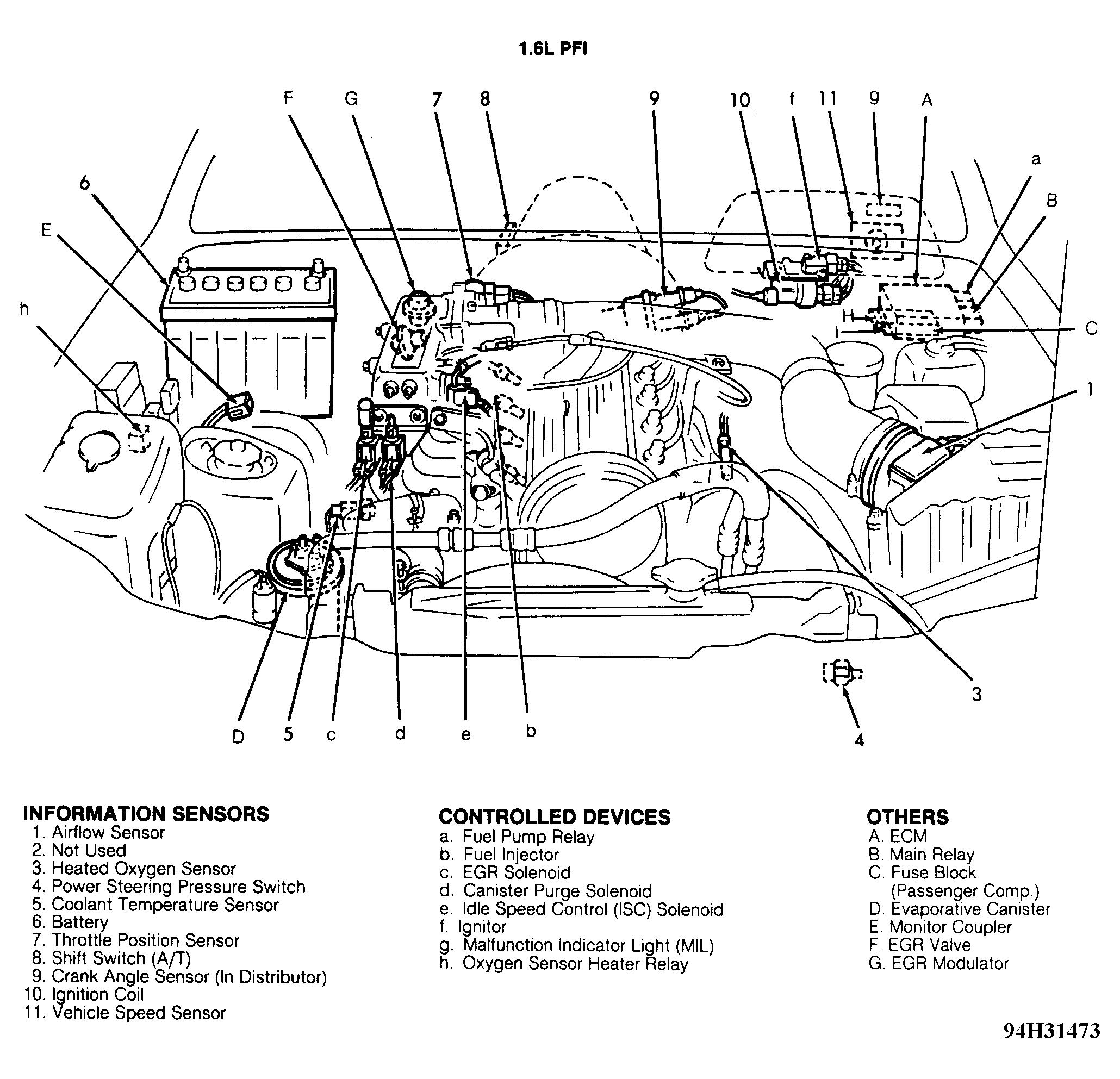

| 1.6L PFI | Under left side of dash. See Figure . | ||

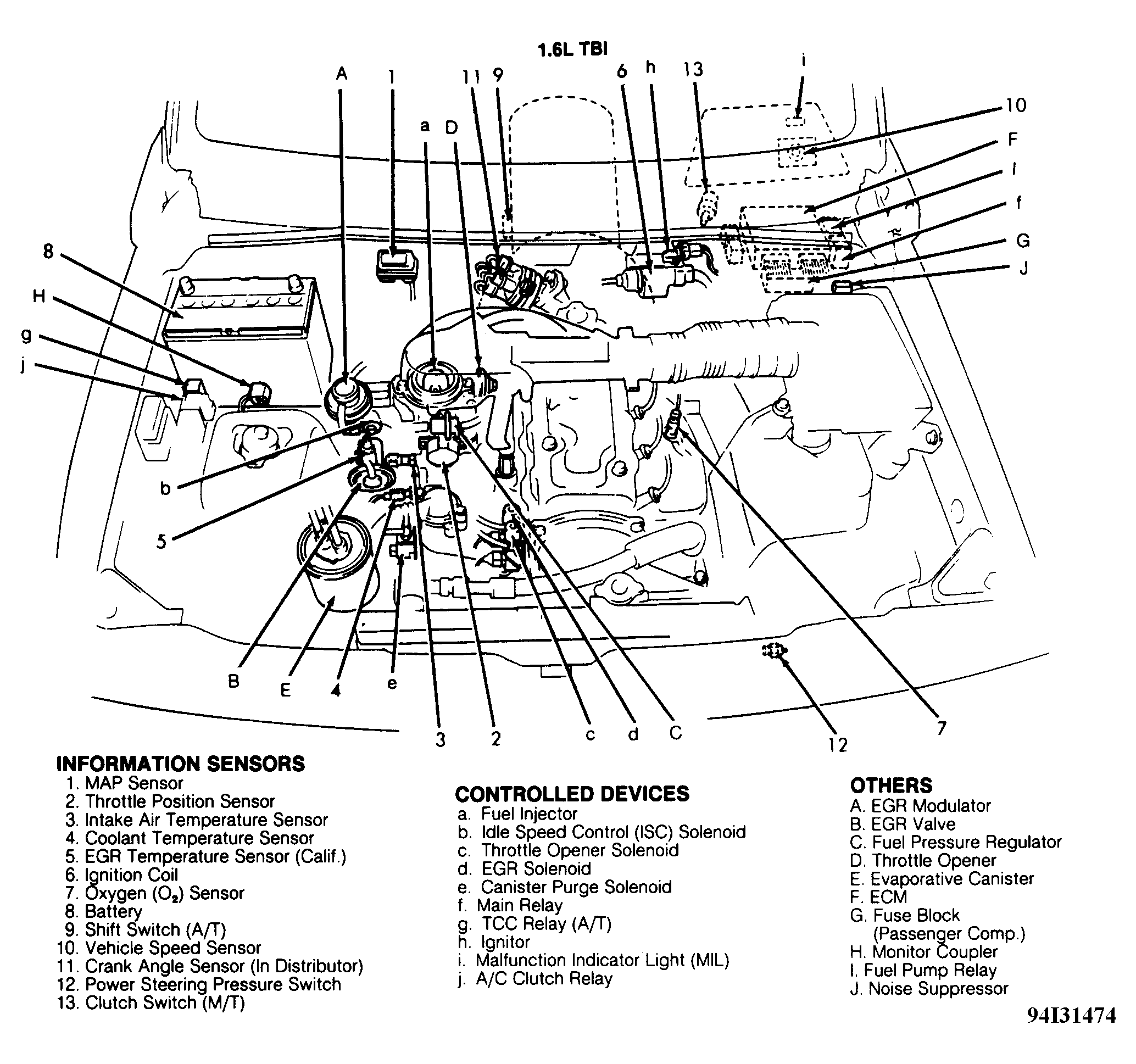

| 1.6L TBI | Under left side of dash. See Figure . | ||
