Code 41 - No Ignition Signal

Fig 1: Code 41 - Schematic
G92J25642Courtesy of SUZUKI OF AMERICA CORP.

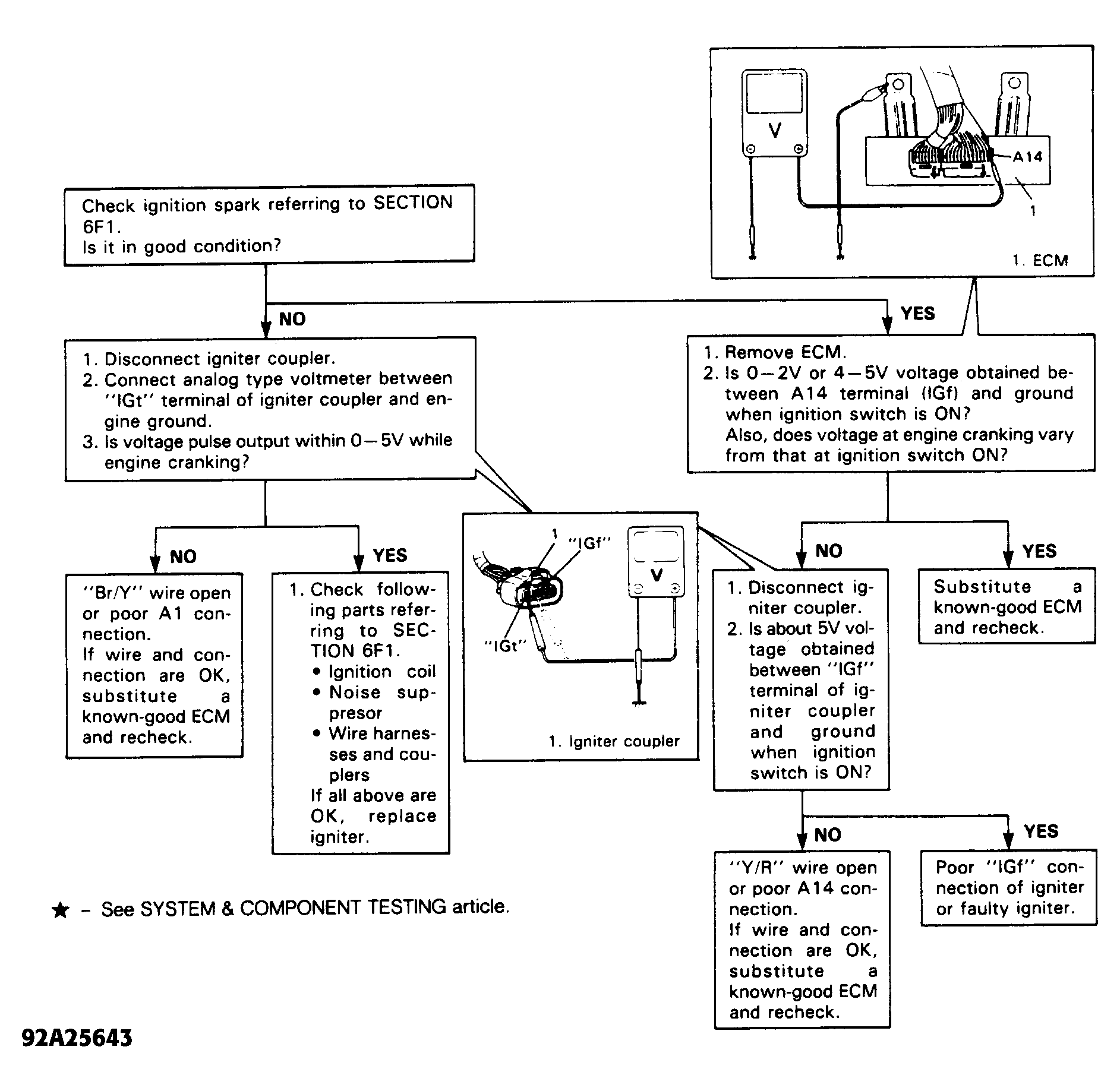

Fig 2: Code 41 - Diagnostic Flowchart
G92A25643Courtesy of SUZUKI OF AMERICA CORP.
