Mirror Component Views

WARNING: This page is about a different car, the 2007 Suzuki XL7. However, it is still accessible from the selected car via links, so may be relevant.

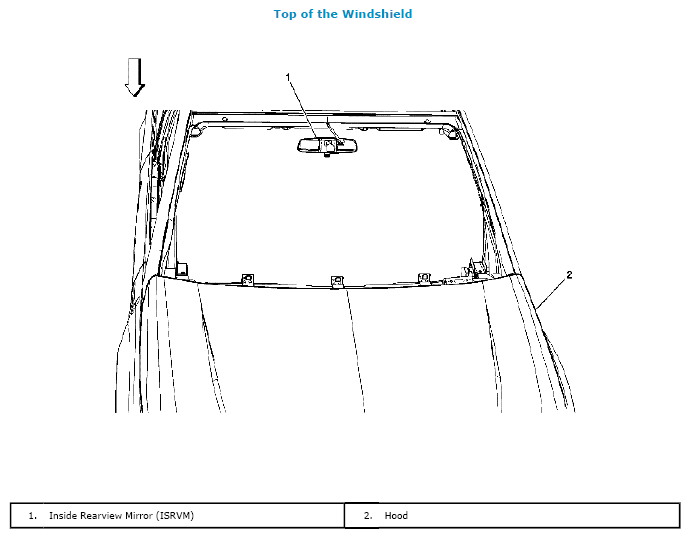

Fig 1: Identifying Inside Rearview Mirror & Hood

Courtesy of SUZUKI OF AMERICA CORP.

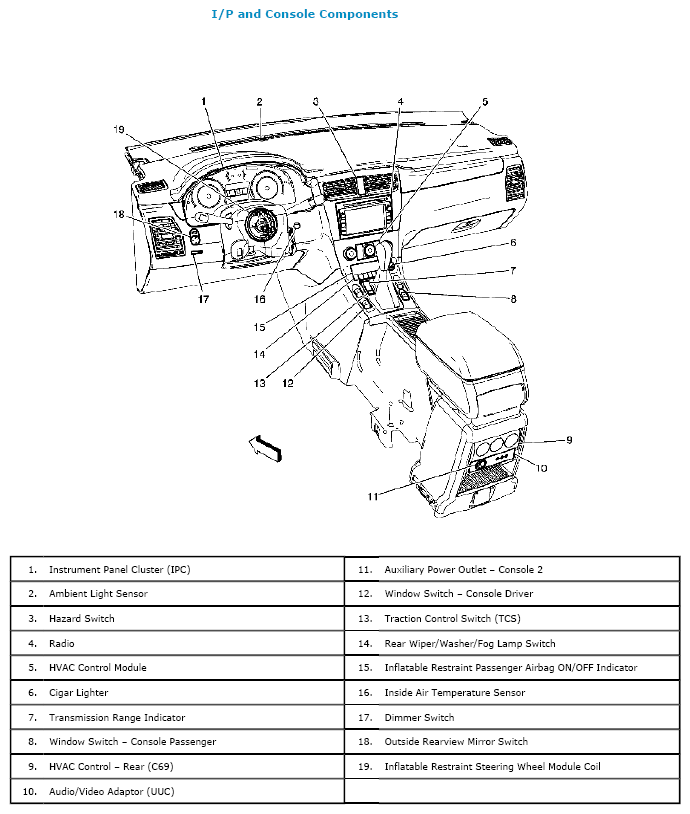

Fig 2: Identifying I/P & Console Components

Courtesy of SUZUKI OF AMERICA CORP.

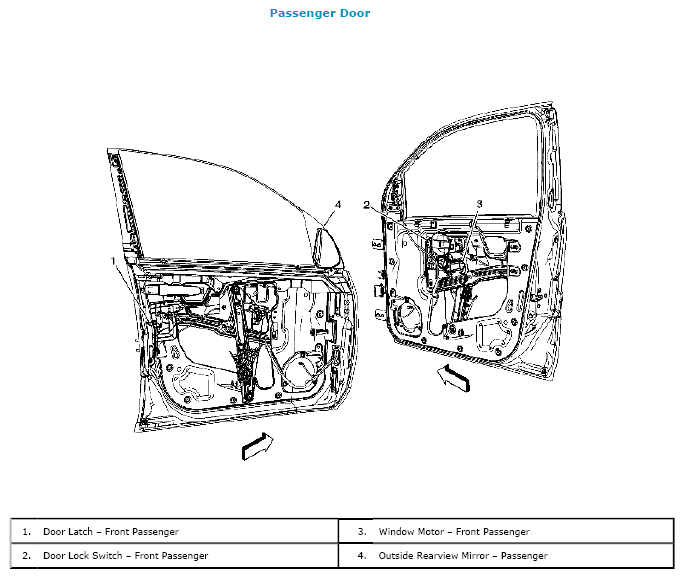

Fig 3: Identifying Door Latch, Outside Rear View Mirror & Door Lock Switch (Front Passenger)

Courtesy of SUZUKI OF AMERICA CORP.

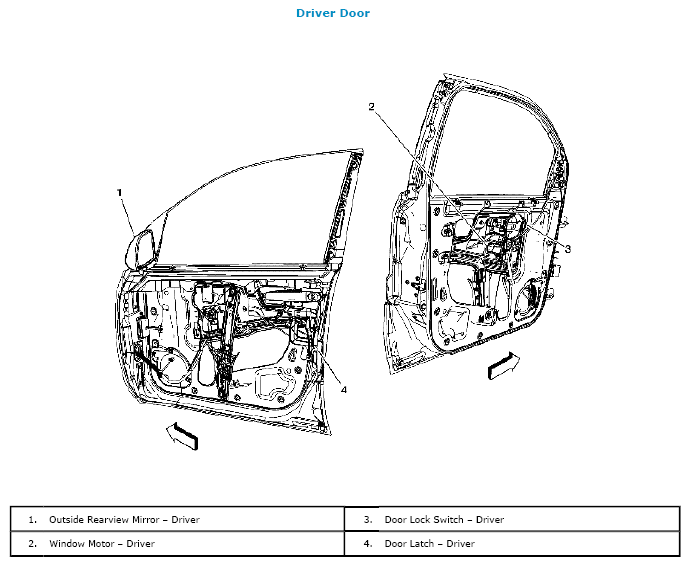

Fig 4: Identifying Door Latch, Outside Rear View Mirror & Door Lock Switch (Driver)

Courtesy of SUZUKI OF AMERICA CORP.
