Radio/Navigation System Schematics

WARNING: This page is about a different car, the 2007 Suzuki XL7. However, it is still accessible from the selected car via links, so may be relevant.

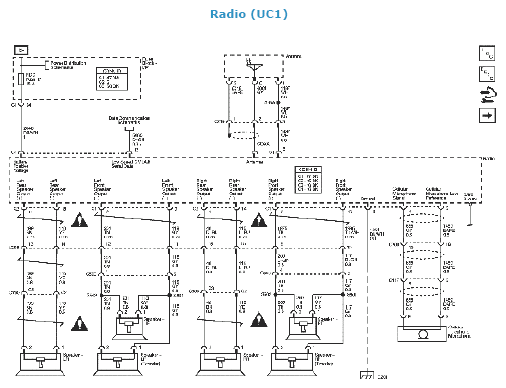

Fig 1: Identifying Radio (UC1) Navigation System Schematic Diagram

Courtesy of SUZUKI OF AMERICA CORP.

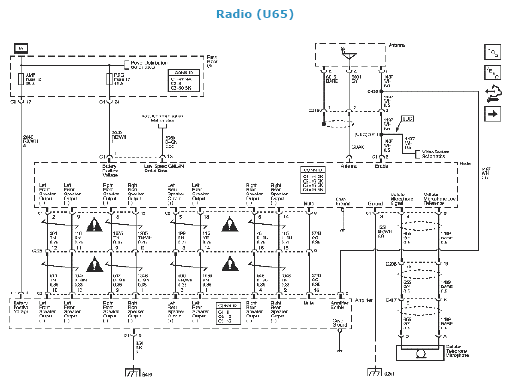

Fig 2: Identifying Radio (U65) Navigation System Schematic Diagram

Courtesy of SUZUKI OF AMERICA CORP.

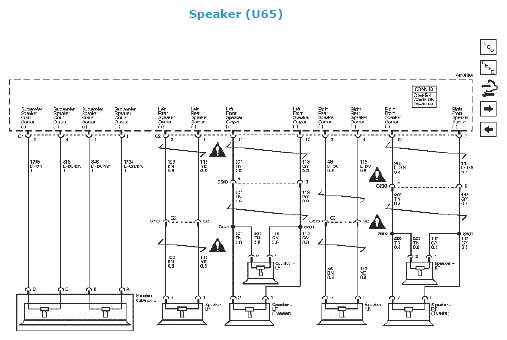

Fig 3: Identifying Speaker (U65) Navigation System Schematic Diagram

Courtesy of SUZUKI OF AMERICA CORP.

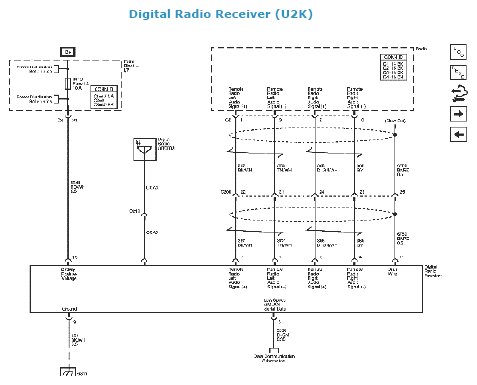

Fig 4: Identifying Digital Radio Receiver (U2K) Navigation System Schematic Diagram

Courtesy of SUZUKI OF AMERICA CORP.

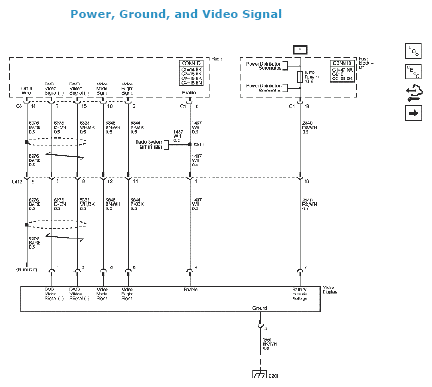

Fig 5: Identifying Power, Ground & Video Signal/Navigation System Schematic Diagram

Courtesy of SUZUKI OF AMERICA CORP.

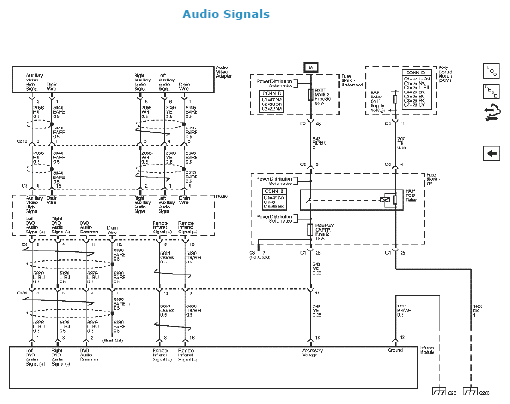

Fig 6: Identifying Audio Signals/Navigation System Schematic Diagram

Courtesy of SUZUKI OF AMERICA CORP.

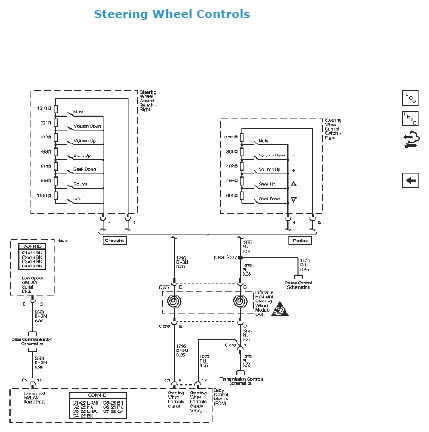

Fig 7: Identifying Power & Ground/Navigation System Schematic Diagram

Courtesy of SUZUKI OF AMERICA CORP.
