Cruise Main Switch

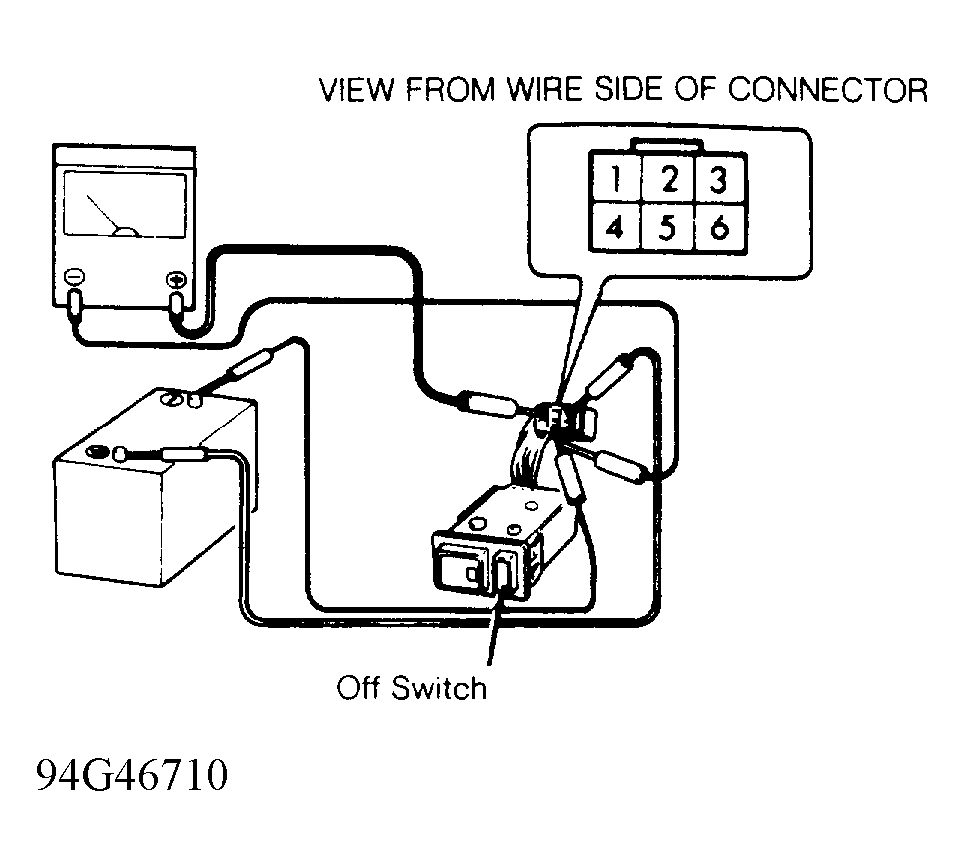

- Disconnect cruise main switch electrical connector. Connect positive battery test lead to cruise main switch terminal No. 3. Connect negative battery test lead to cruise main switch terminal No. 5. Be careful to avoid accidental short.SeeFig 1
.
- Connect positive voltmeter lead to cruise main switch terminal No. 1. Connect negative voltmeter lead to cruise main switch terminal No. 5. SeeFig 1
.
- Turn cruise main switch to ON position. Voltmeter should indicate 10-14 volts. Turn cruise main switch to OFF position. Voltmeter should indicate zero volts. If voltage is not as specified, replace cruise main switch.
Courtesy of SUZUKI OF AMERICA CORP.
