Valve Body Spring Specifications: Notes

LOWER VALVE BODY SPRING SPECIFICATIONS

Spring No. Diameter In. (mm) Free Length In. (mm)
No. 1 .677 (17.20) 2.216 (56.30)
No. 2 .394 (10.0) 1.395 (35.43)
No. 3 .394 (10.0) 1.667 (42.35)
No. 4 .445 (11.30) 1.362 (34.60)
No. 5 .517 (13.14) 1.501 (38.14)
No. 6 .437 (11.11) 1.265 (42.14)
FRONT UPPER VALVE BODY SPRING SPECIFICATIONS

Spring No. Diameter In. (mm) Free Length In. (mm)
No. 1 .681 (17.43) 2.804 (71.23)
No. 2 .338 (8.58) .757 (19.24)
No. 3 .429 (10.90) 1.557 (39.55)
No. 4 .270 (6.85) .906 (23.00)
REAR UPPER VALVE BODY SPRING SPECIFICATIONS

Spring No. Diameter In. (mm) Free Length In. (mm)
No. 1-3 .350 (8.90) 1.148 (29.15)
No. 4 .362 (9.20) 1.478 (37.55)

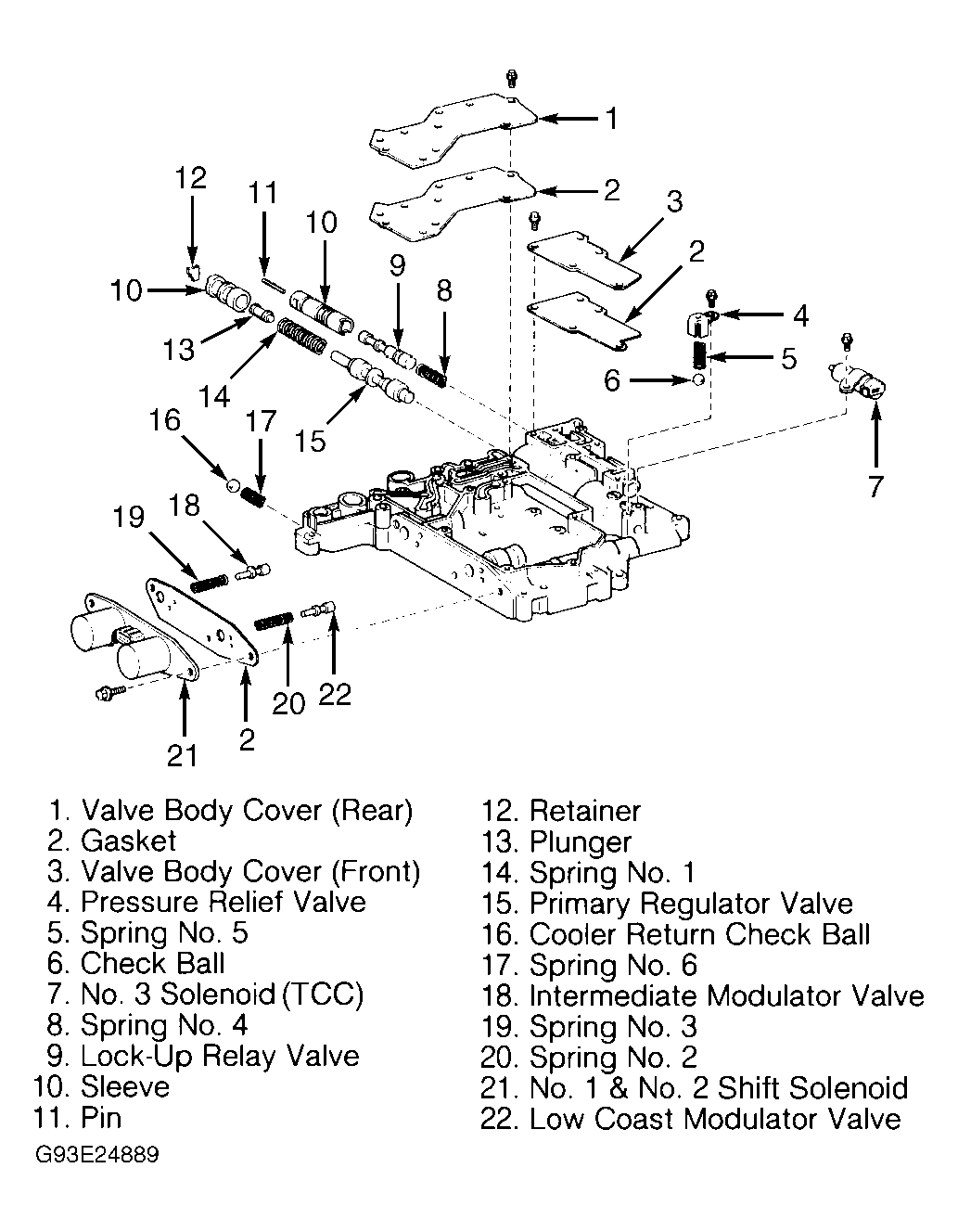

Fig 1: Exploded View Of Lower Valve Body
G93E24889Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

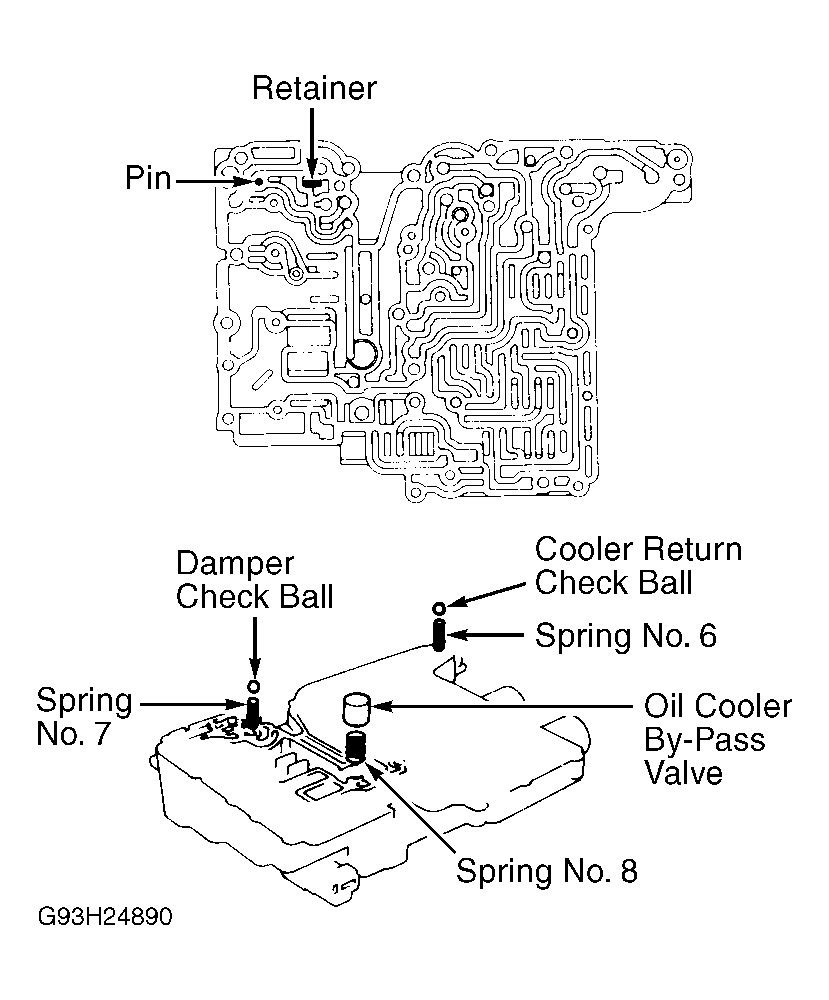

Fig 2: Lower Valve Body Check Ball Pin, Spring & Retainer Locations
G93H24890Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

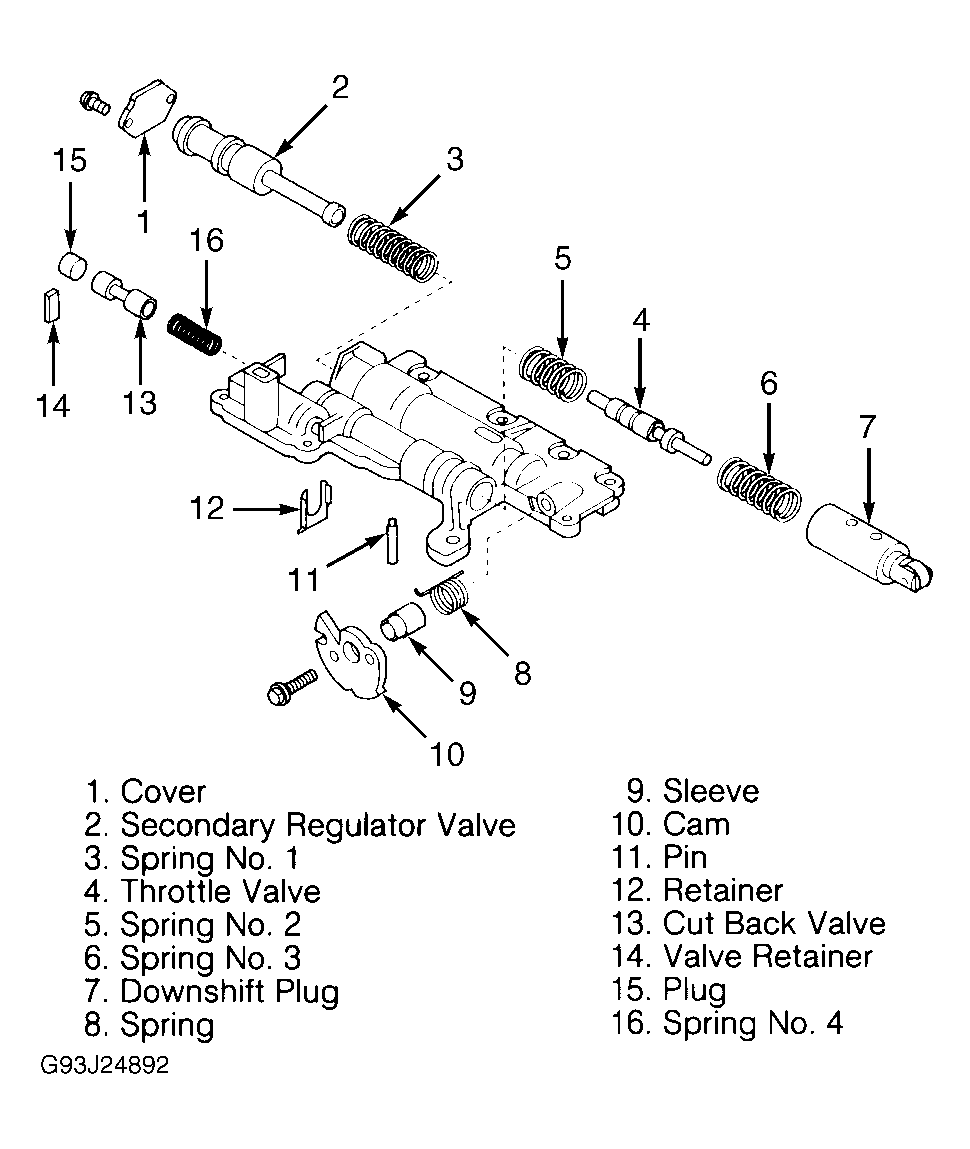

Fig 3: Exploded View Of Front Upper Valve Body
G93J24892Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

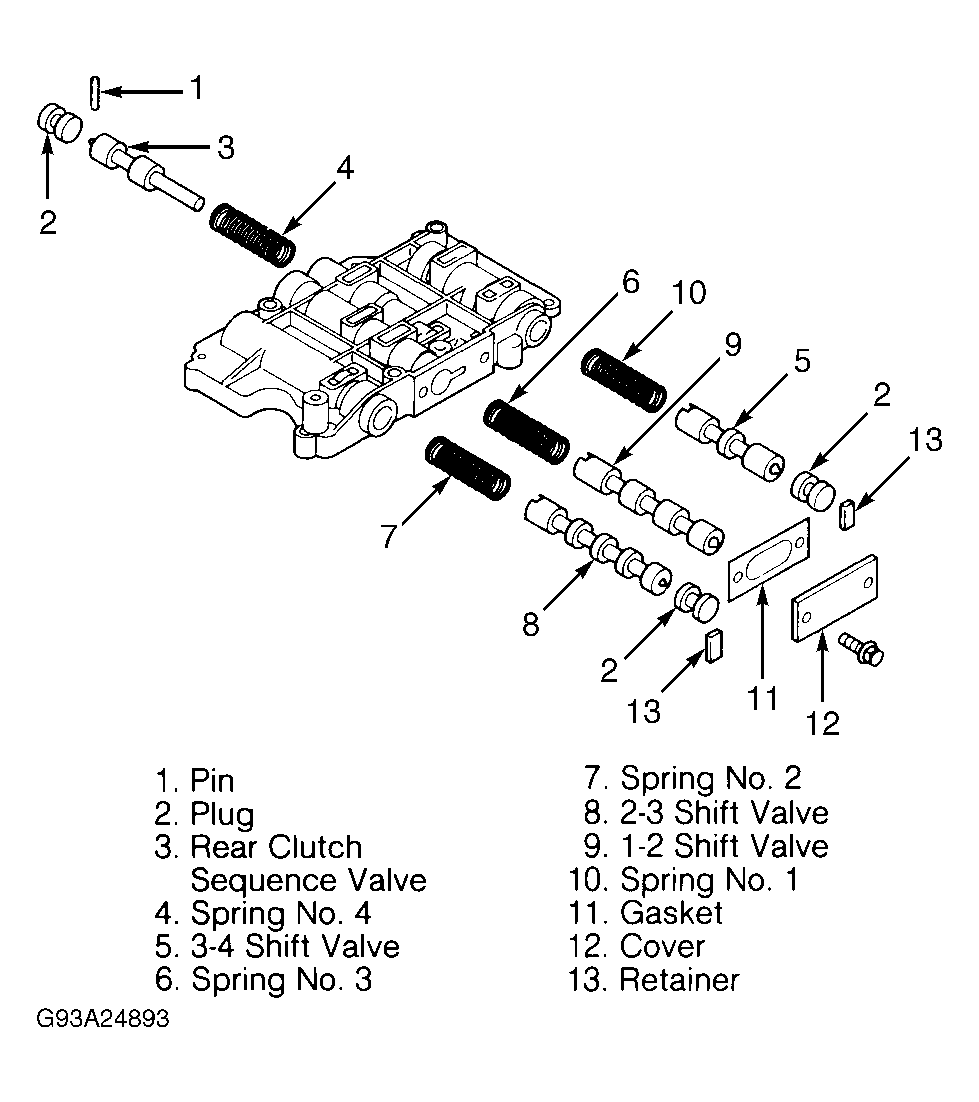

Fig 4: Exploded View Of Rear Upper Valve Body
G93A24893Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
Fig 5: Rear Upper Valve Body Check Ball Pin & Retainer Locations
G95B20173Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
