Circuit Protection Devices

CIRCUIT PROTECTION DEVICES

Component Component Location
A/C Fusible Link On positive battery cable, at battery.

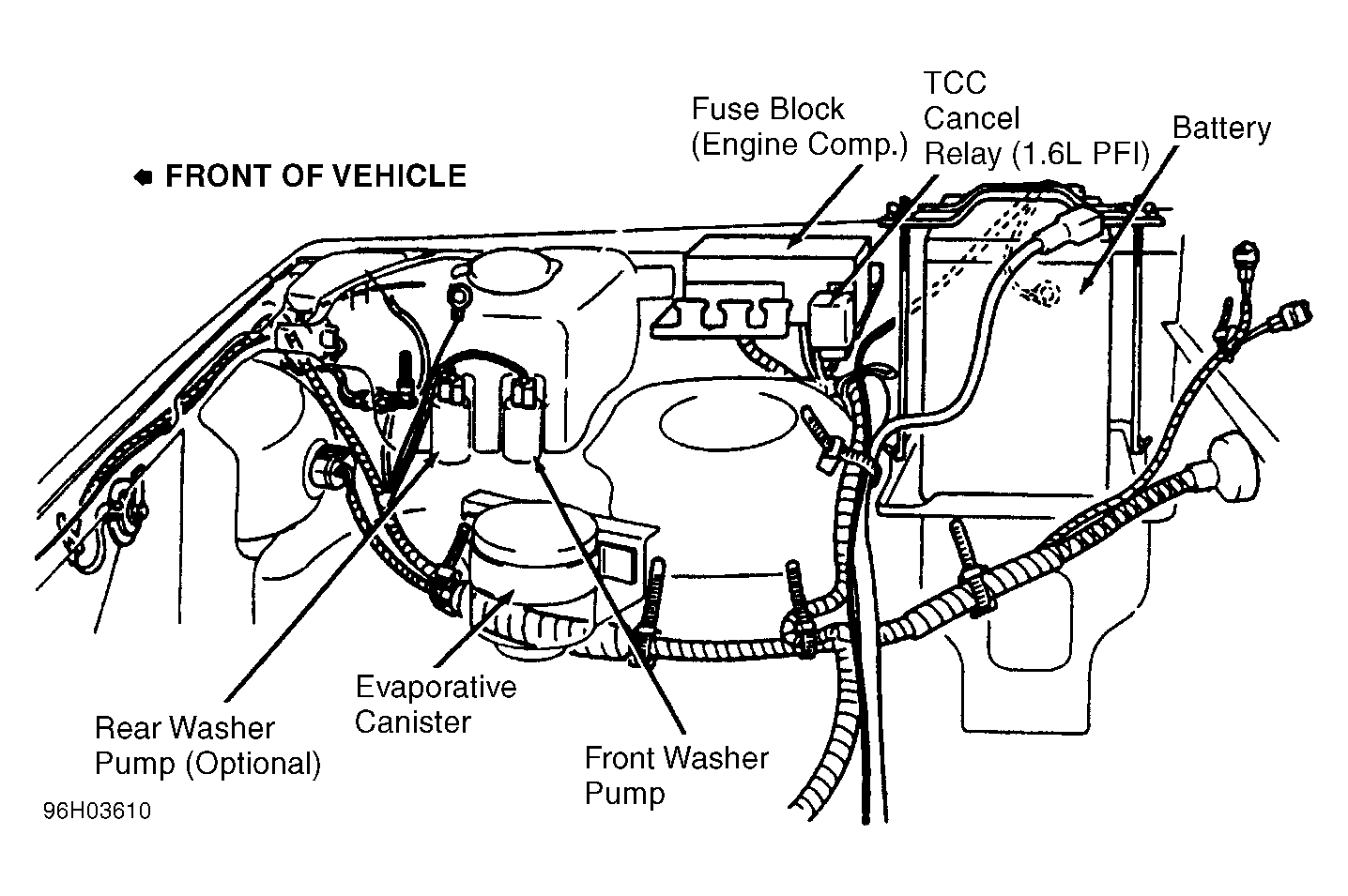

Engine Compartment Fuse Block On right front inner fender panel, near shock tower. See Figure .
Passenger Compartment Fuse Block (1.6L PFI) Under left side of dash. See Figure .
Passenger Compartment Fuse Block (1.6L TBI) Under left side of dash. See Figure .
