Control Units
CONTROL UNITS
| Component | Component Location |
|---|---|
| Cruise Control Unit | Behind dash, near steering column. |
| Door Lock Control Unit | Behind dash, near steering column. |
| DRL Controller | Under left side of dash. |

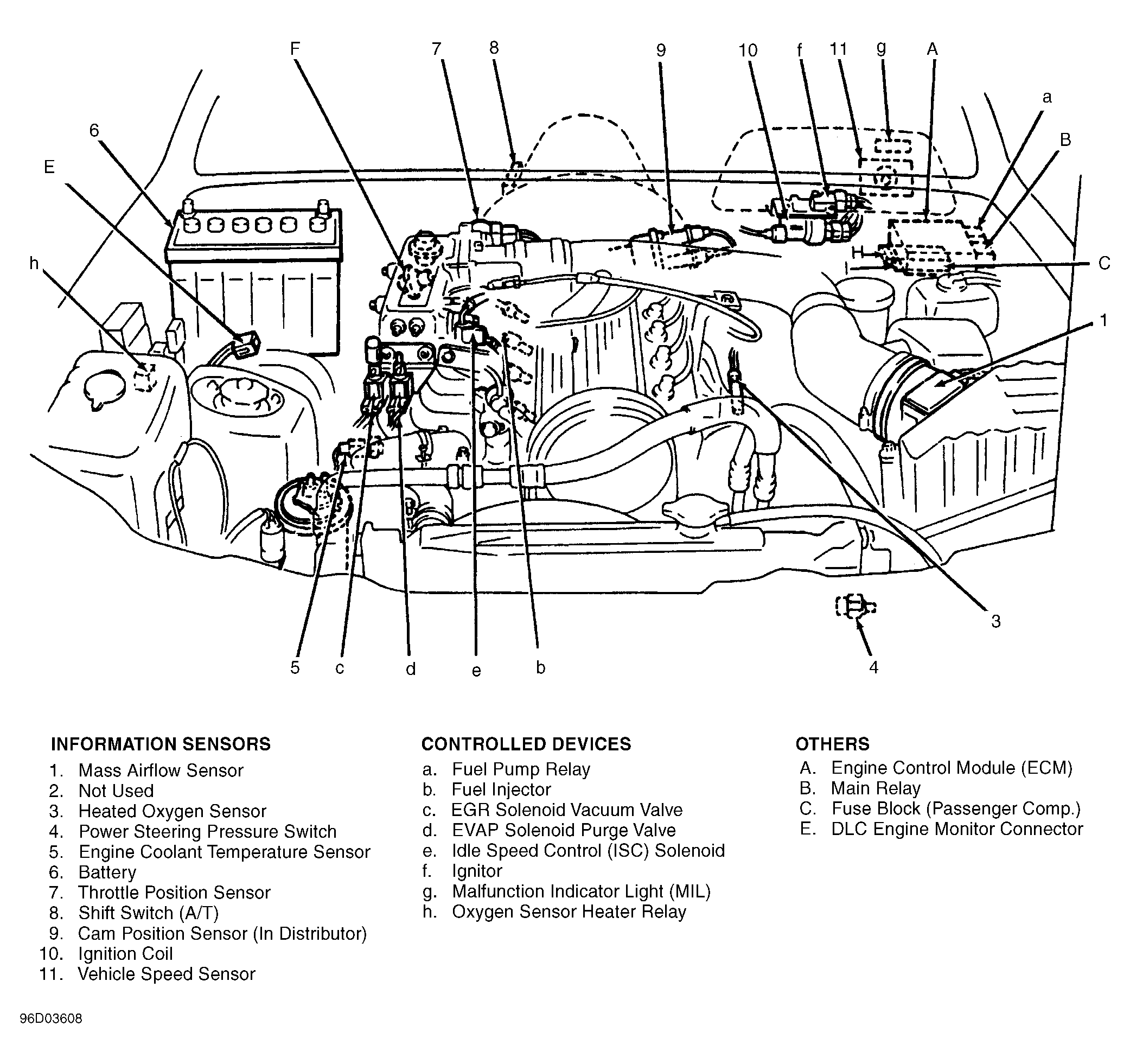

| Engine Control Module (ECM) (1.6L PFI) | Behind left side of dash. See Figure . |

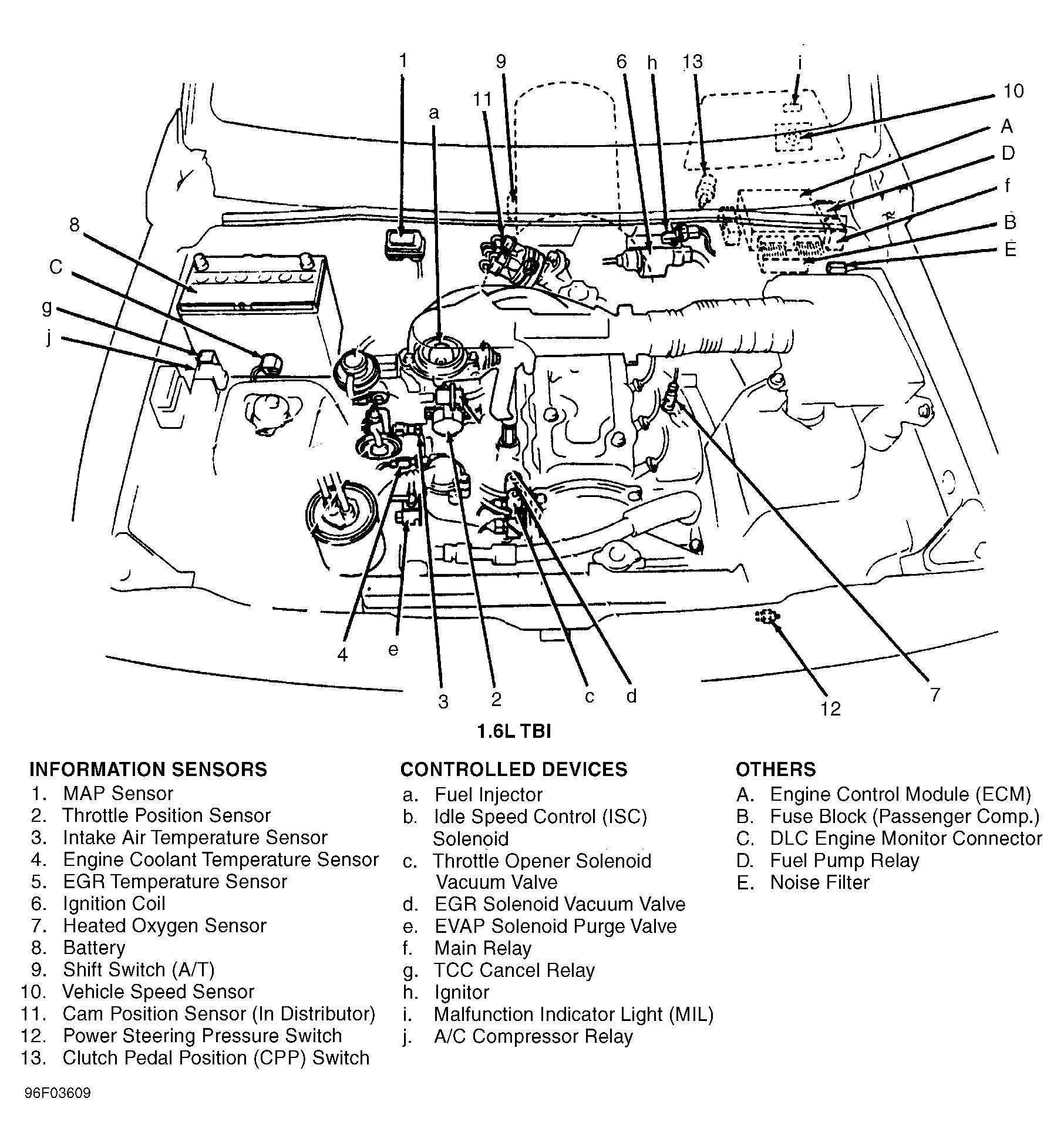

| Engine Control Module (ECM) (1.6L TBI) | Behind left side of dash. See Figure . |
| RWAL Control Module | Behind left side of dash. |
| Transmission Control Module (TCM) | Behind dash, near steering column. |
