4-Speed A/T

WARNING: This page is about a different car, the 1995 Suzuki Sidekick. However, it is still accessible from the selected car via links, so may be relevant.
  1. Apply parking brake. Disconnect electrical connector at shift switch, located on side of transmission. Note terminal identification on shift switch. SeeFig 1 .
  2. Using ohmmeter, check for continuity between specified terminals with shift lever in specified positions. See SHIFT SWITCH SPECIFICATIONS  . If proper continuity does not exist, adjust or replace shift switch as necessary.

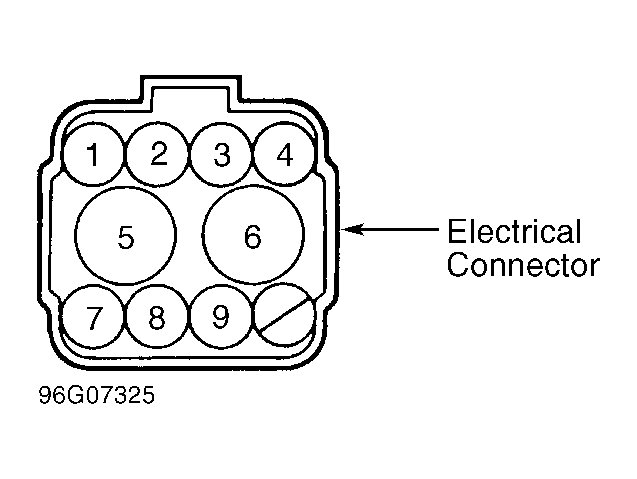

Fig 1: Identifying Shift Switch Terminals (4-Speed A/T)
G96G07325Courtesy of SUZUKI OF AMERICA CORP.
