Home >> Suzuki >> 1997 >> Esteem GLX L4-1.6L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Control Module, A/T

April 5, 2026: LEMON Manuals is launched! Read the announcement.

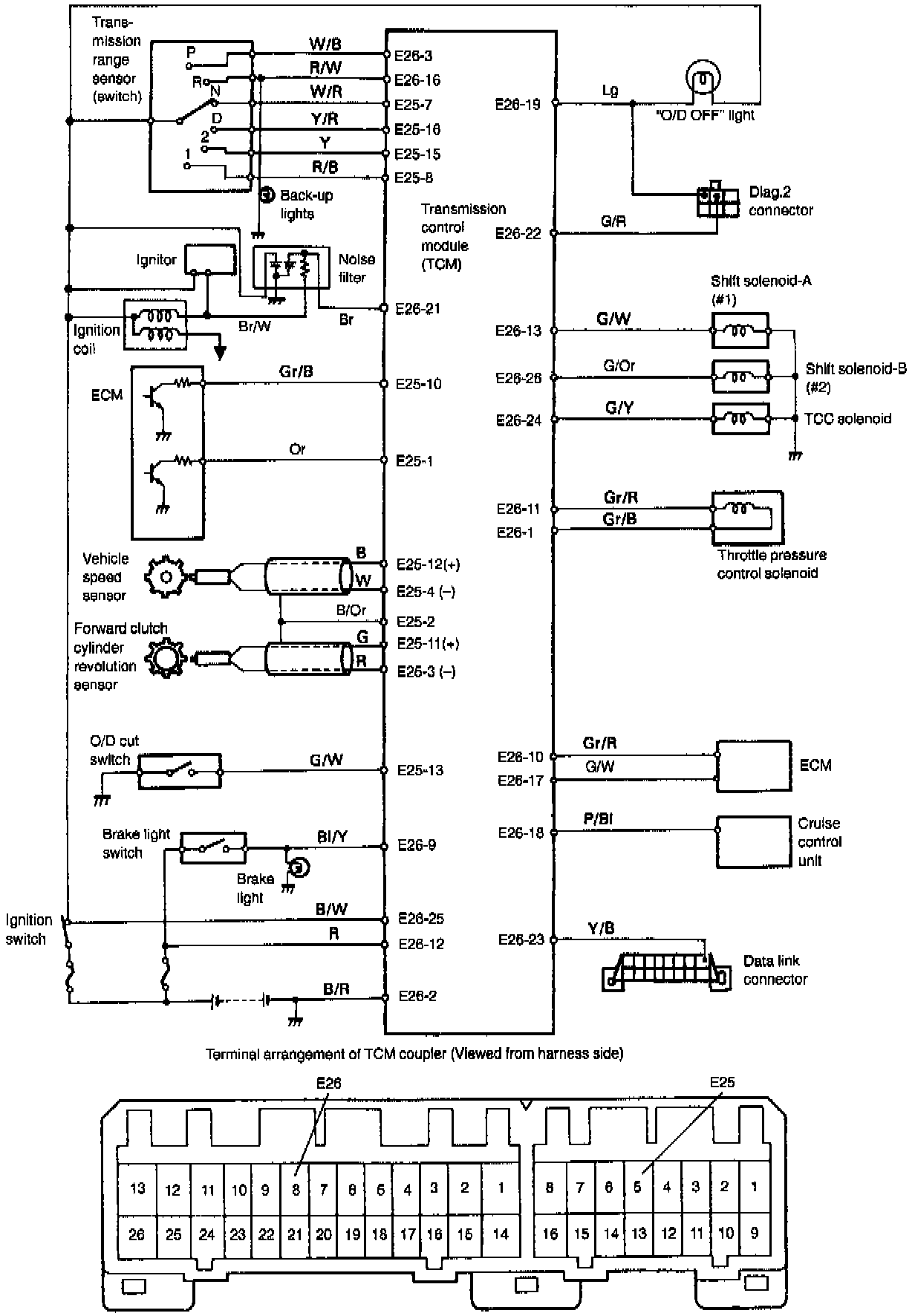

Control Module, A/T
