Crankshaft Position Sensor: Testing and Inspection





Check crankshaft position sensor referring to step 1 and 2 of DTC P0335 Flow Chart below. If malfunction is found, replace.

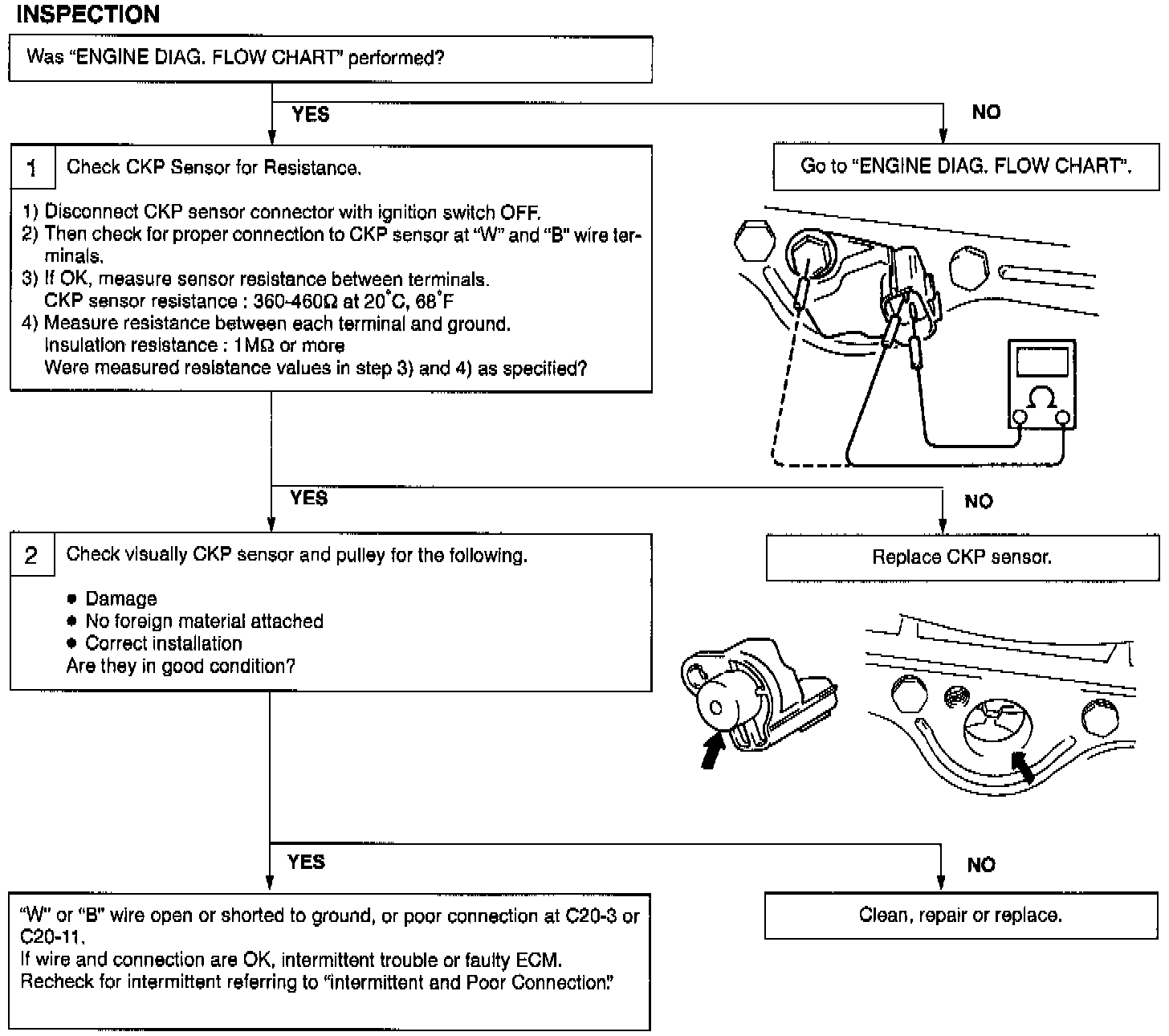

DTC P0335 Inspection Chart
