Connector Indicator Diagrams

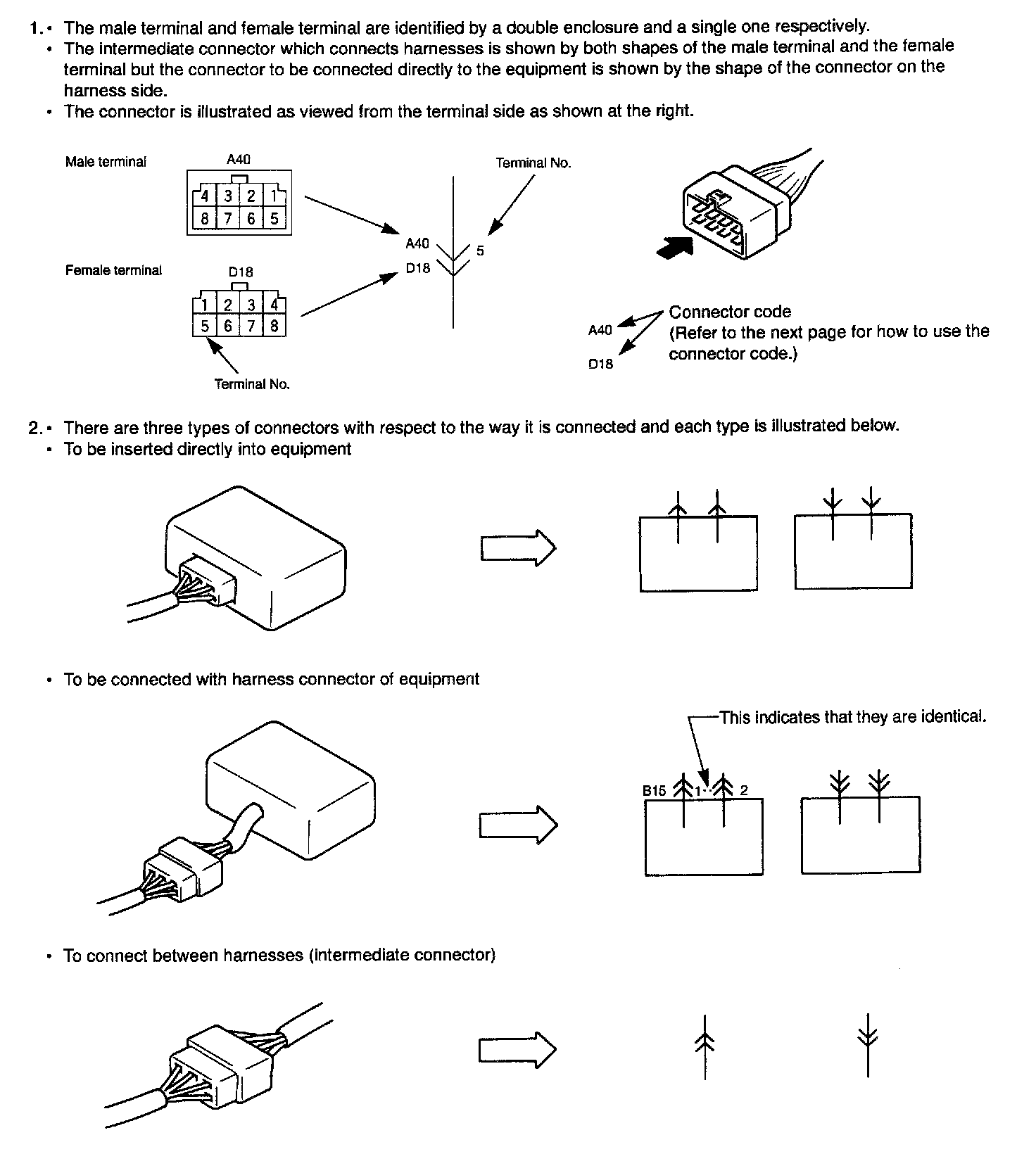

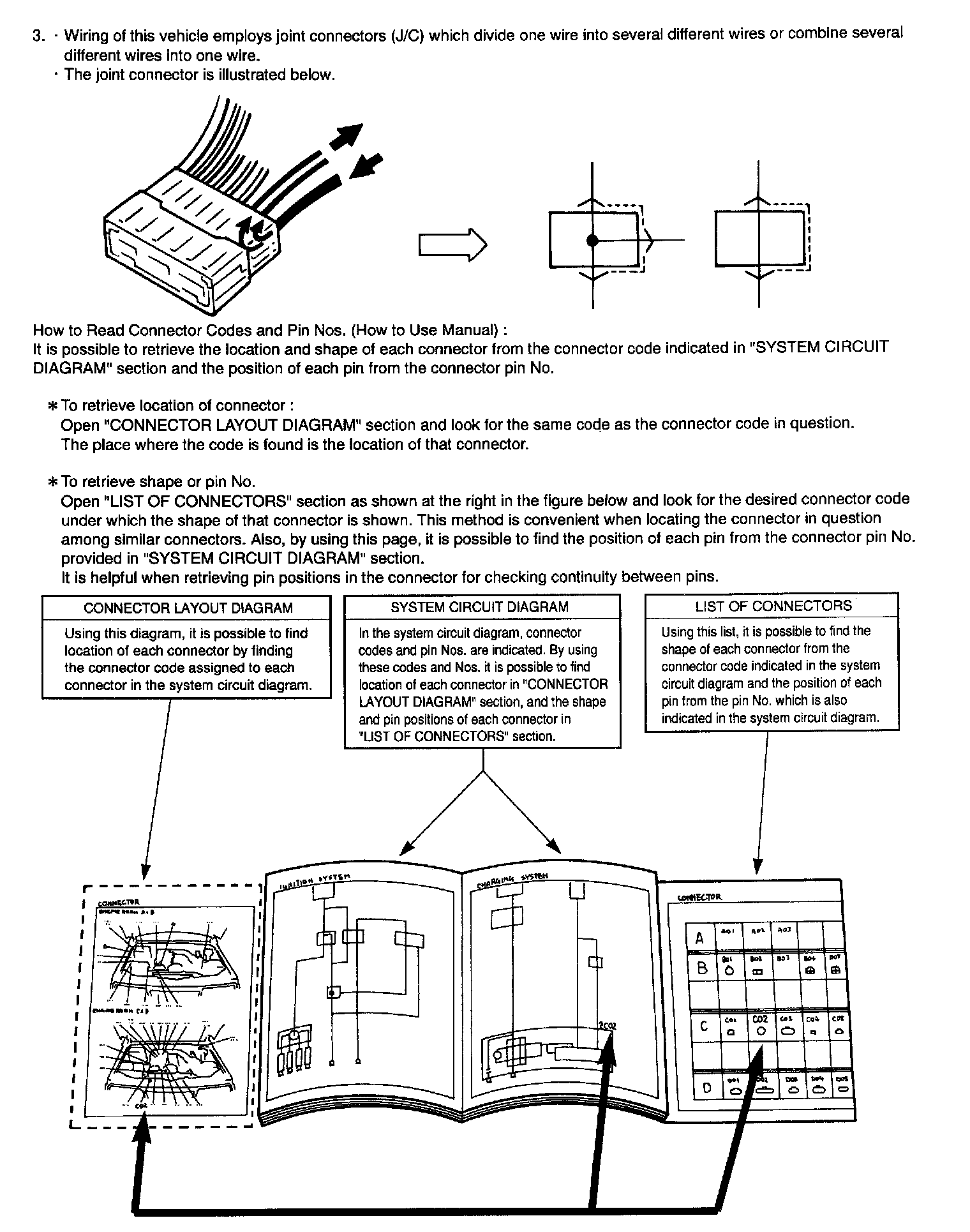

The connectors are indicated as shown in System Circuit Diagram. For the shape and pin arrangement of each connector, refer to List of Connectors. How they are indicated and how to read them is indicated in the diagram.
