Control Module HVAC: Testing and Inspection

TABLE B-4 A/C SIGNAL CIRCUIT CHECK (IF EQUIPPED)




CIRCUIT DIAGRAM

CIRCUIT DESCRIPTION
ECM (PCM) outputs A/C ON signal (one of the signals for A/C control module to control the A/C) to A/C control module when A/C switch signal inputted to ECM (PCM) and engine conditions are specified.

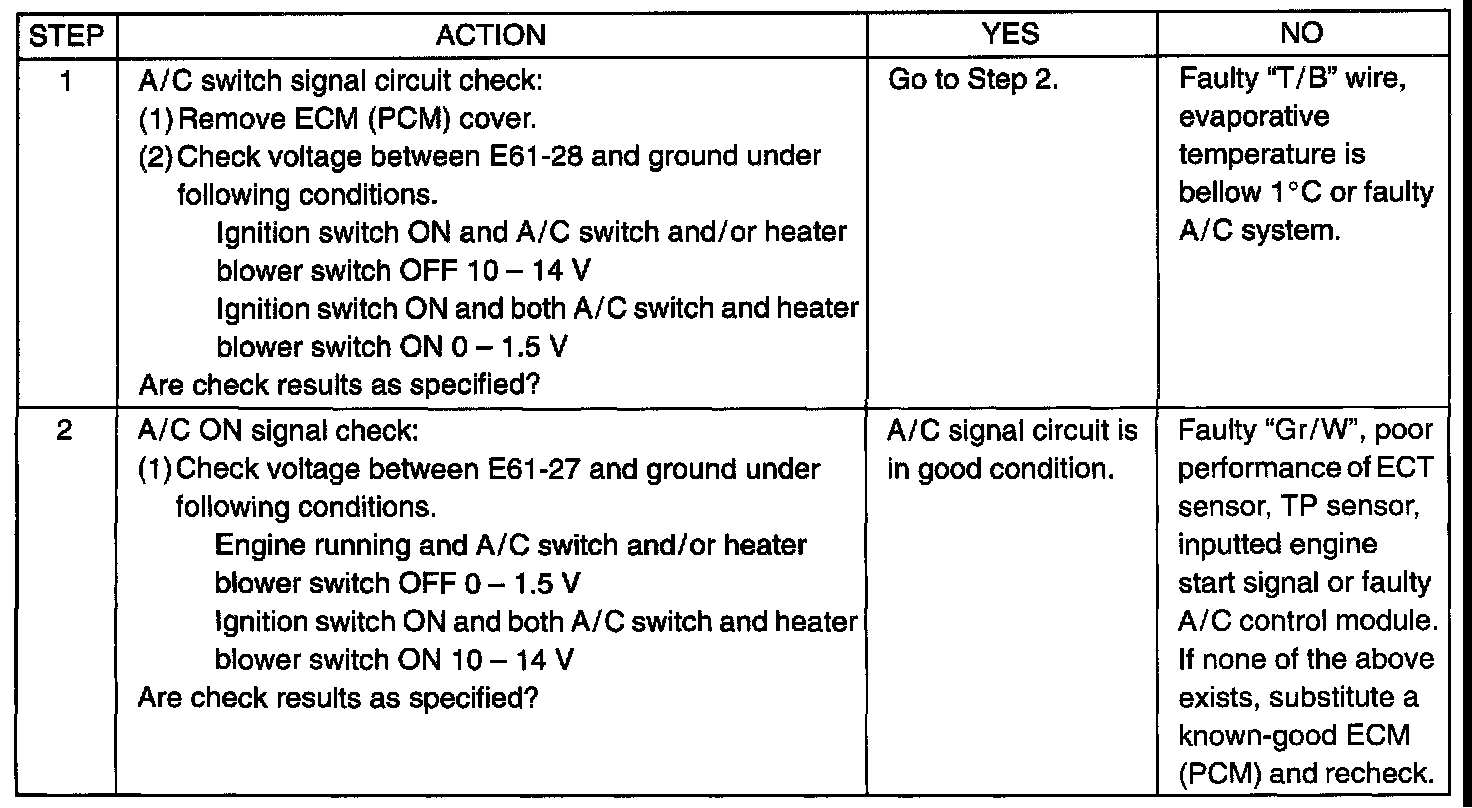

INSPECTION
