Subassembly

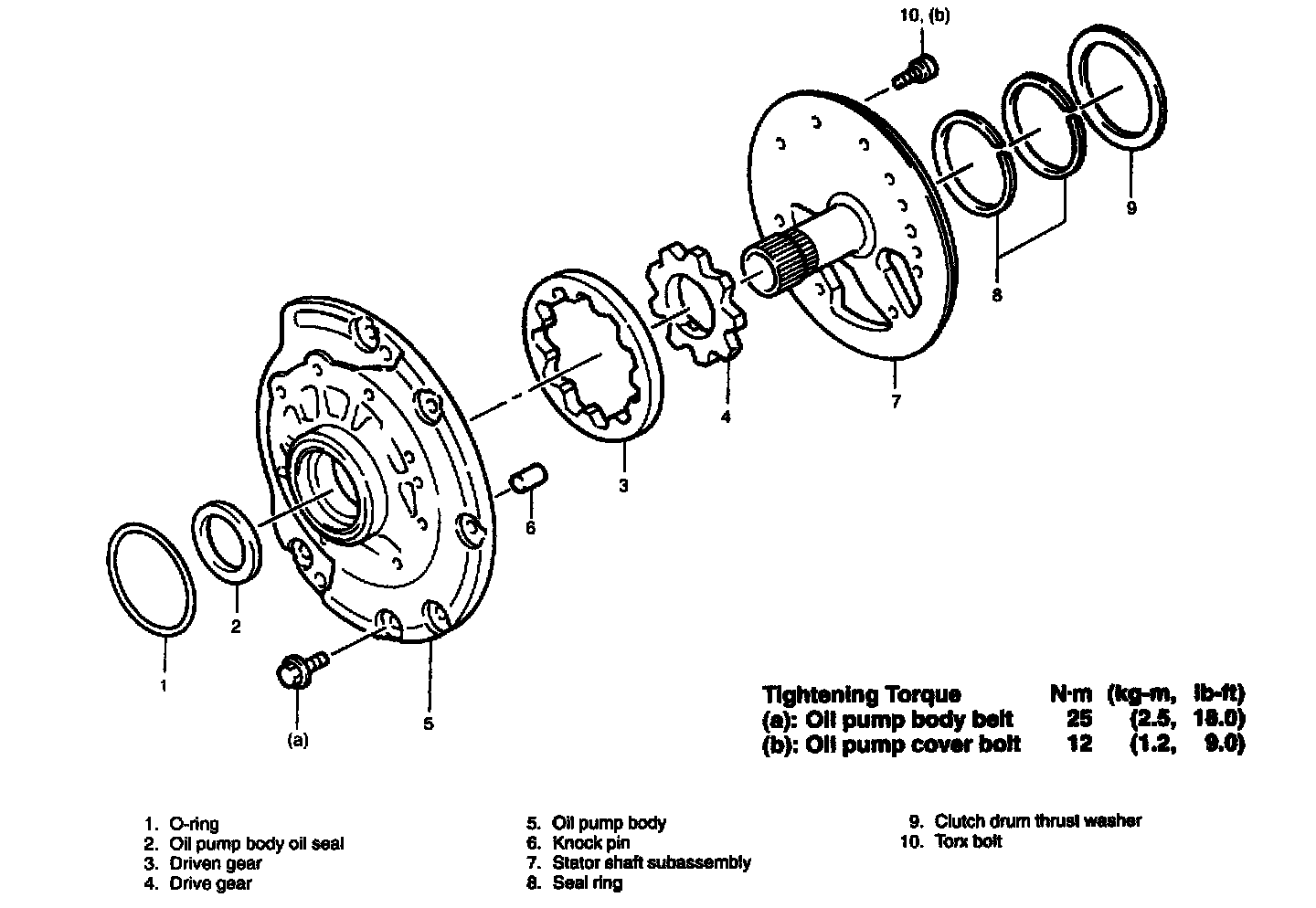

OIL PUMP

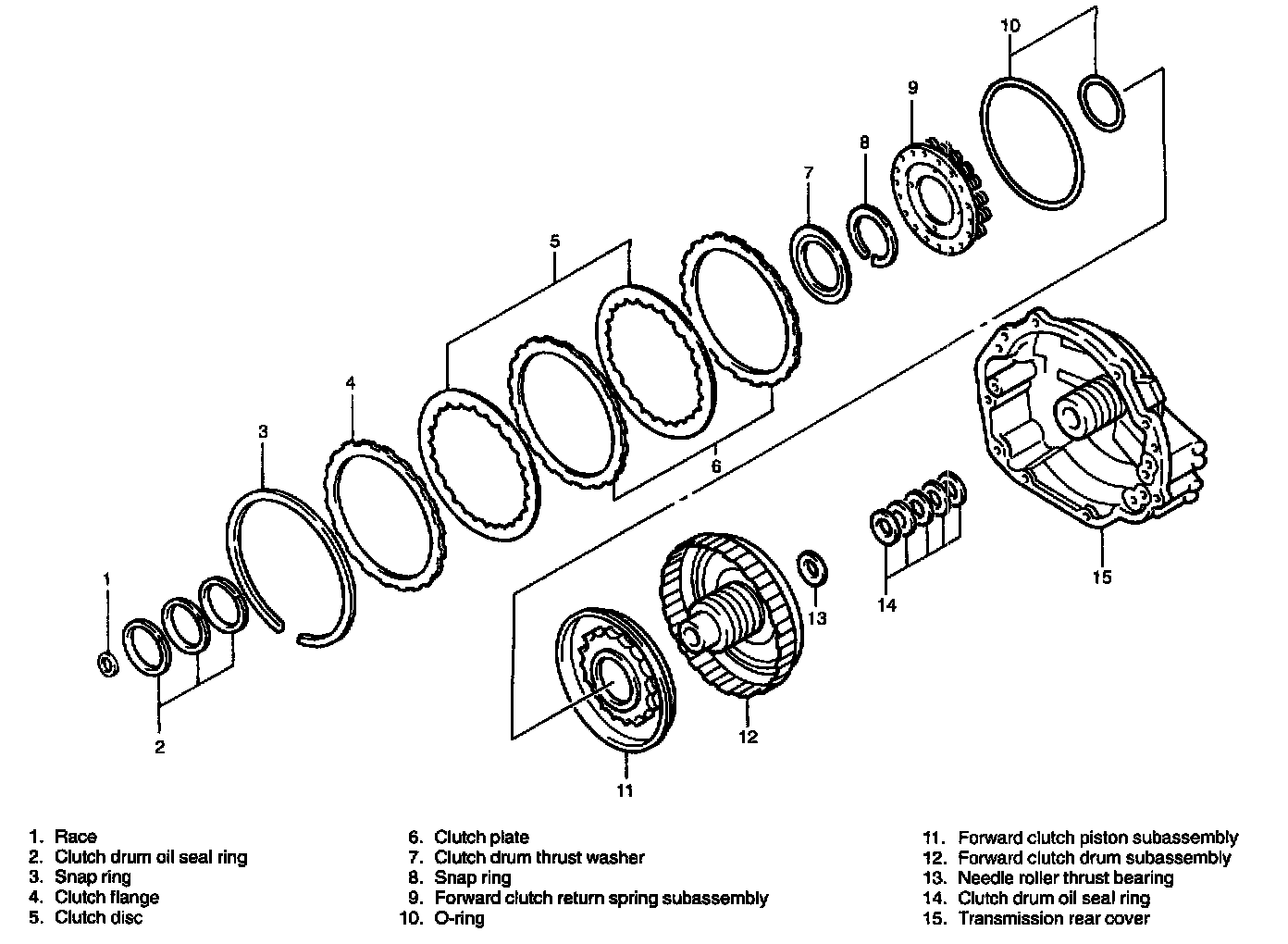

FORWARD CLUTCH

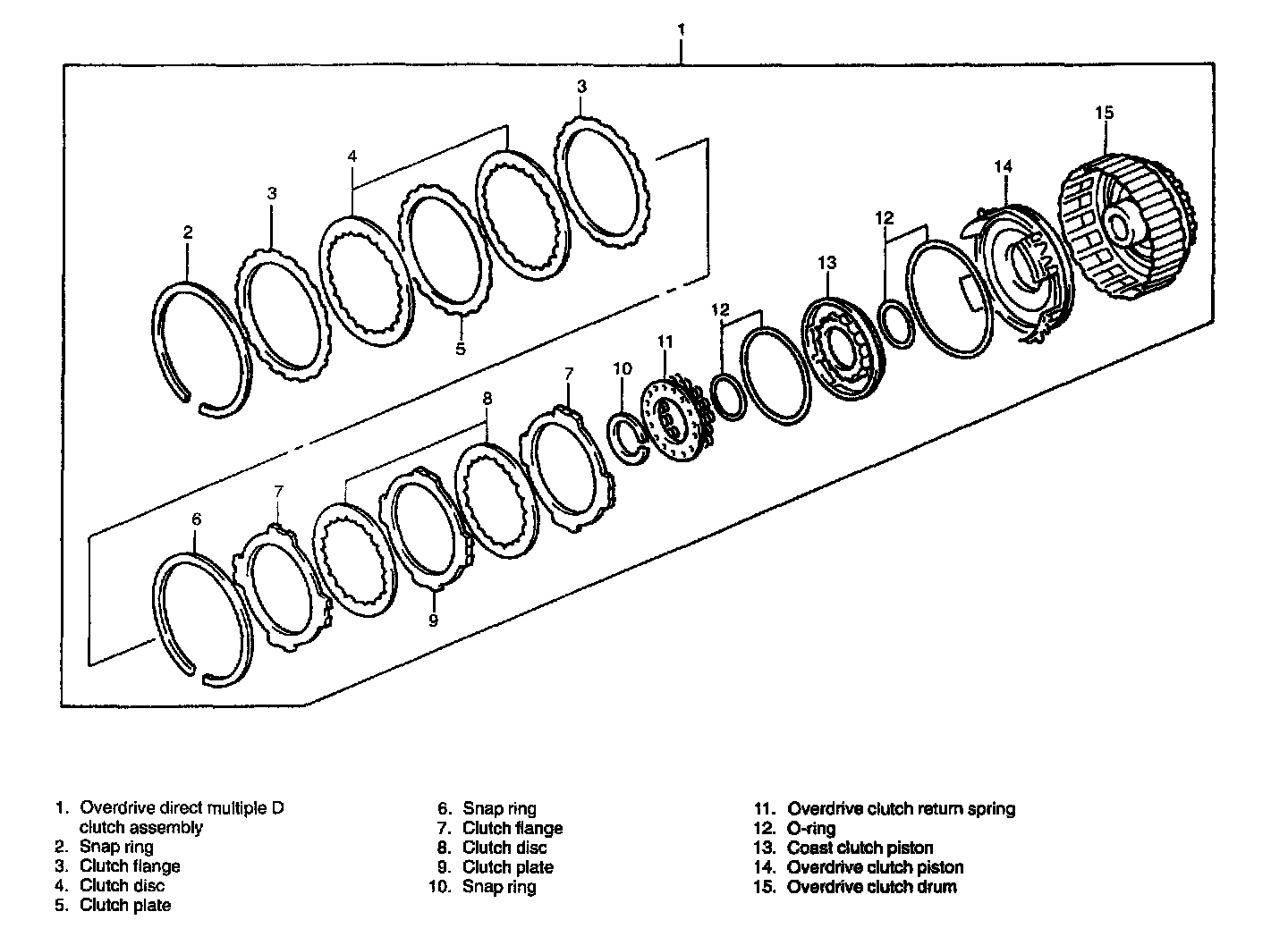

OVERDRIVE CLUTCH/COAST CLUTCH

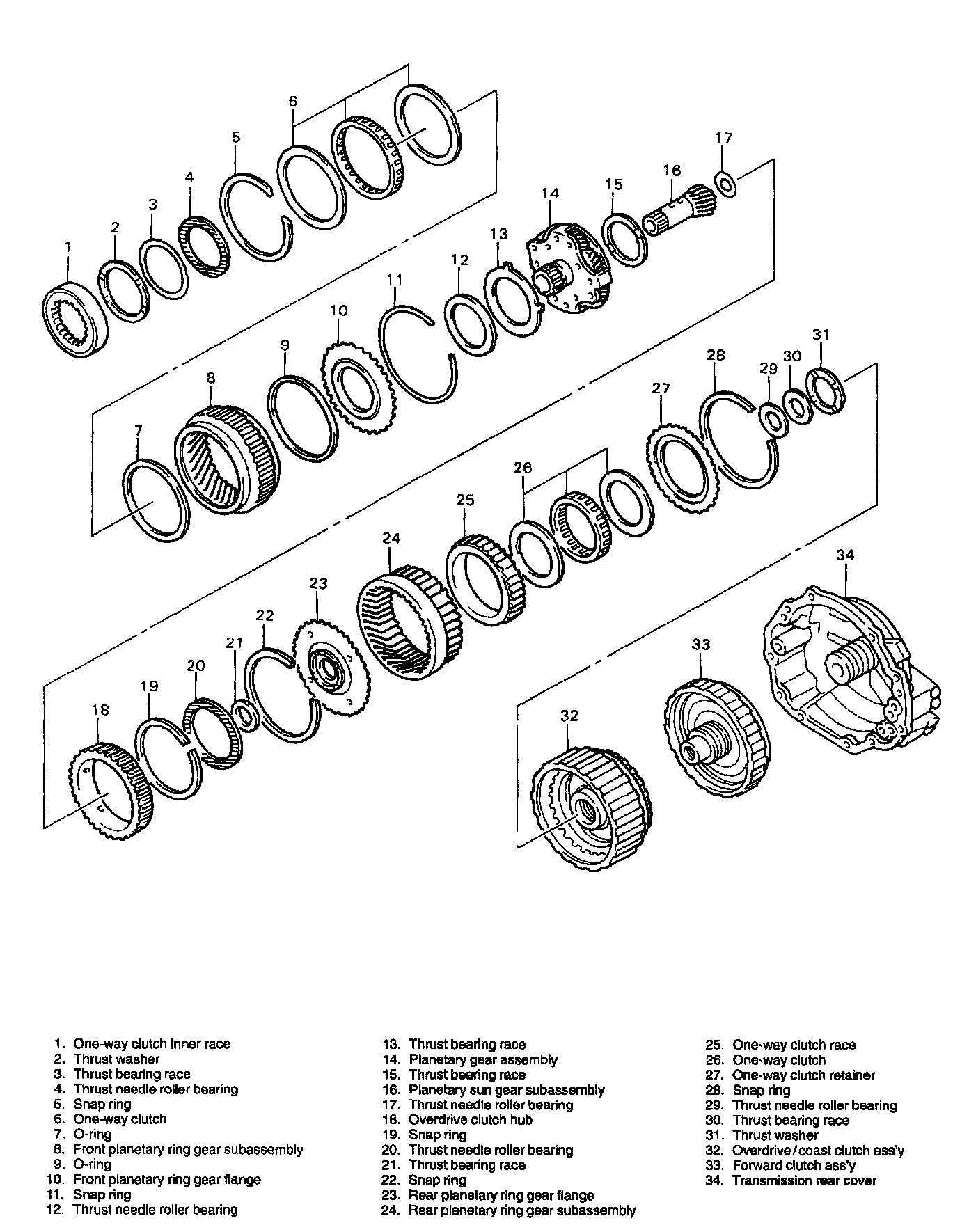

FRONT PLANETARY RING GEAR (F1), REAR PLANETARY RING GEAR (FO)

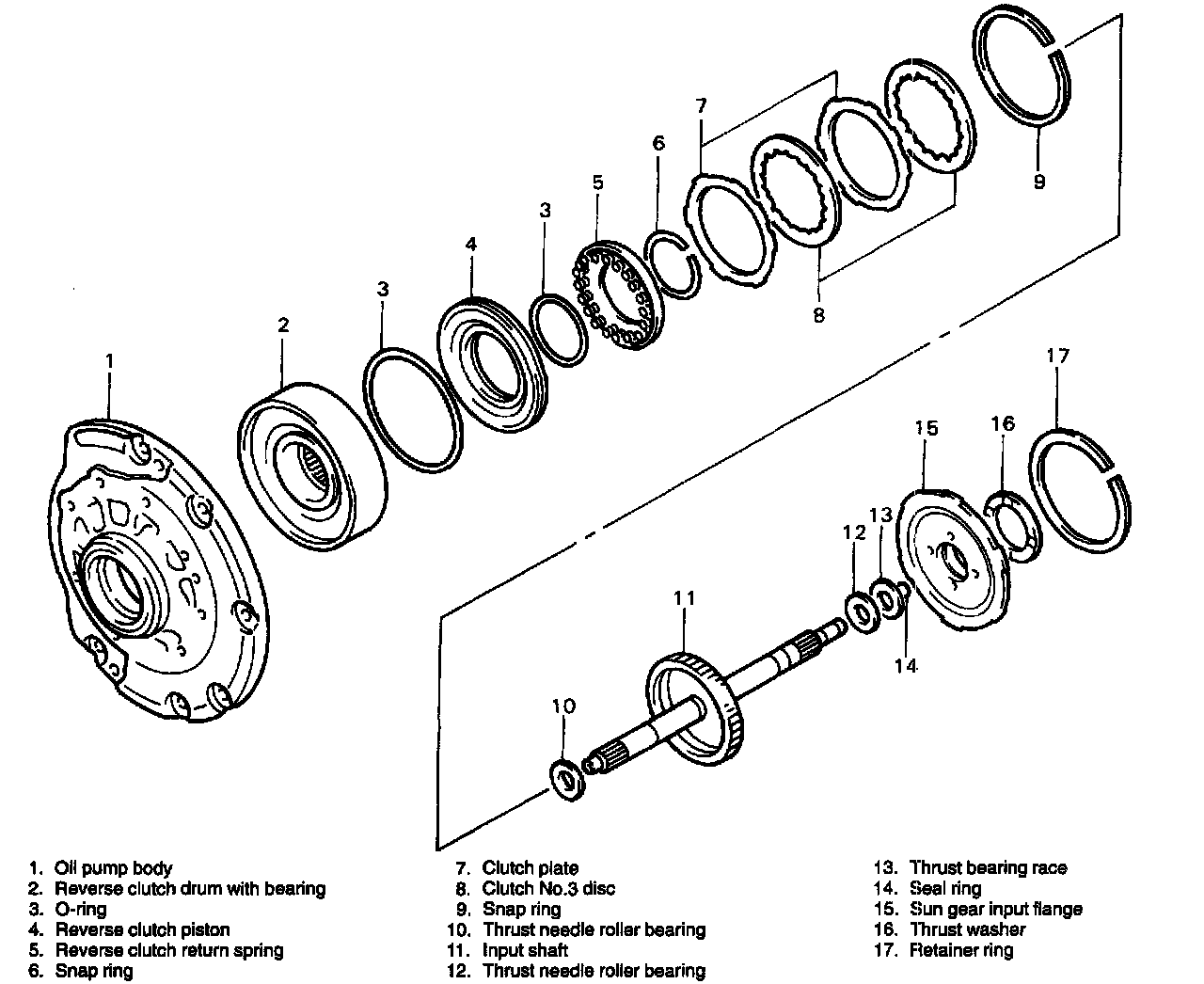

REVERSE CLUTCH

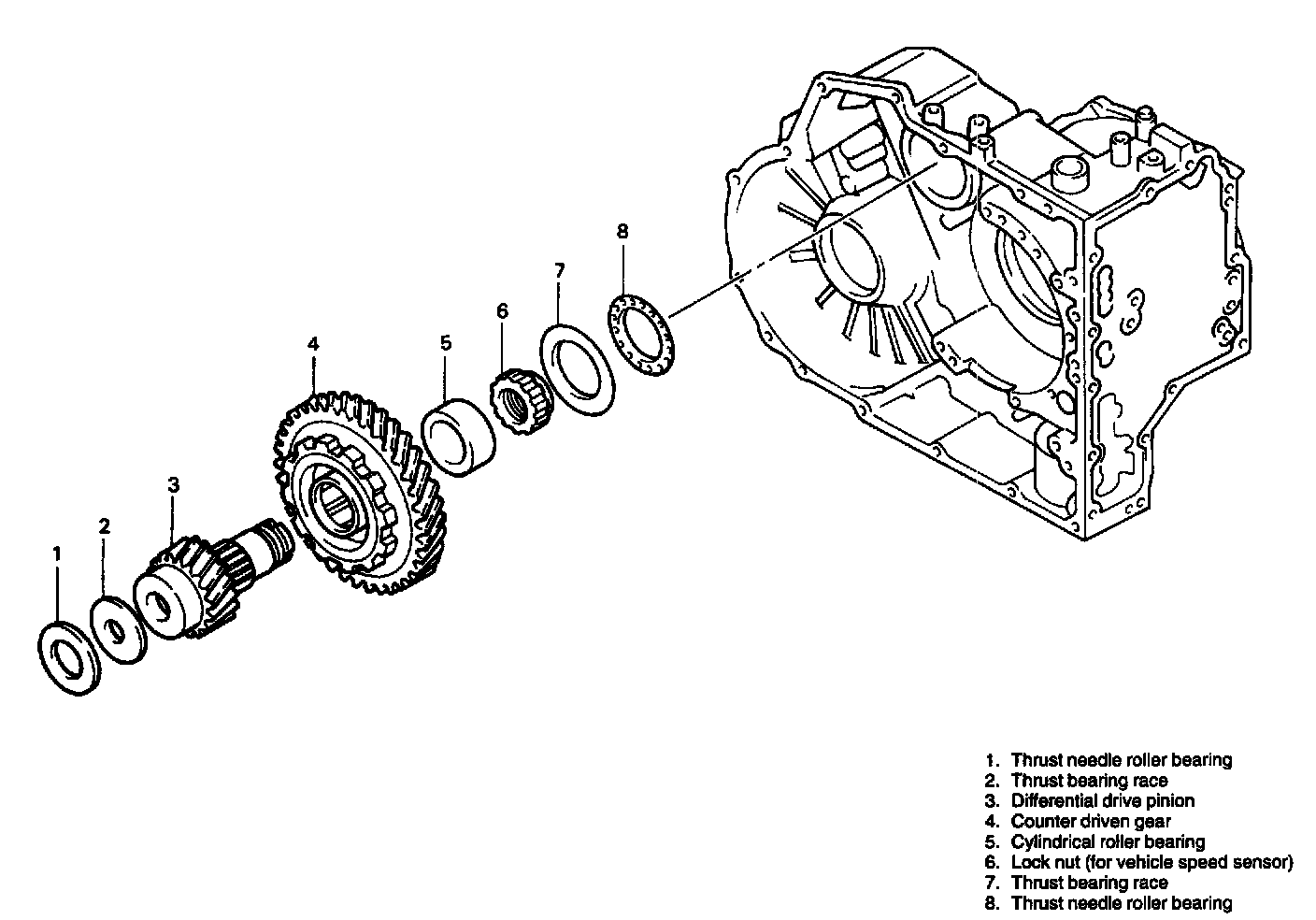

COUNTER DRIVEN GEAR





COUNTER DRIVE GEAR

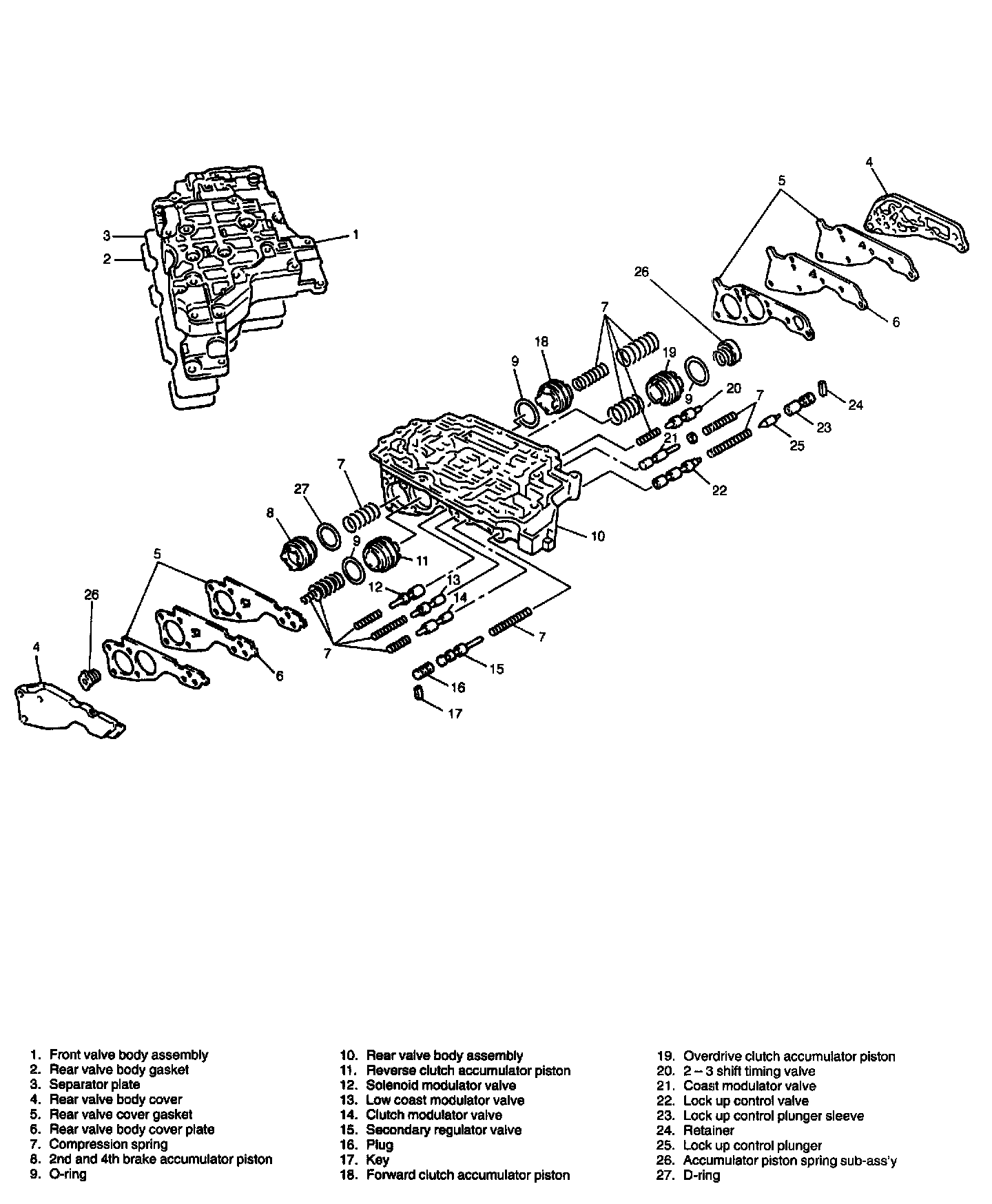

VALVE BODY

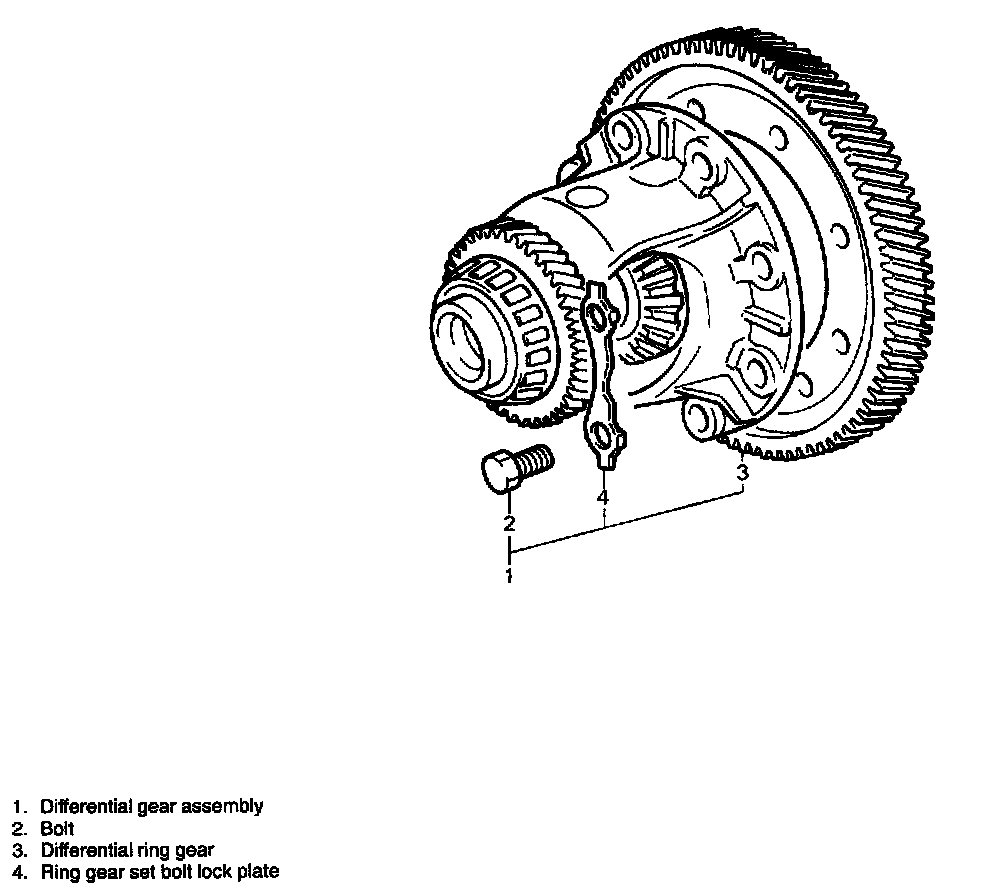

DIFFERENTIAL
