Jacking & Hoisting: Hoist

CAUTION: Follow hoist manufacturer's instructions. DO NOT allow hoist or adapters to contact suspension, exhaust or steering components.

Place adapters at 4 contact points. See Fig 1 -Fig 3 . Position adapters so they are centered on contact area. All 4 contact points must contact adapters. Ensure vehicle is stable. Raise vehicle

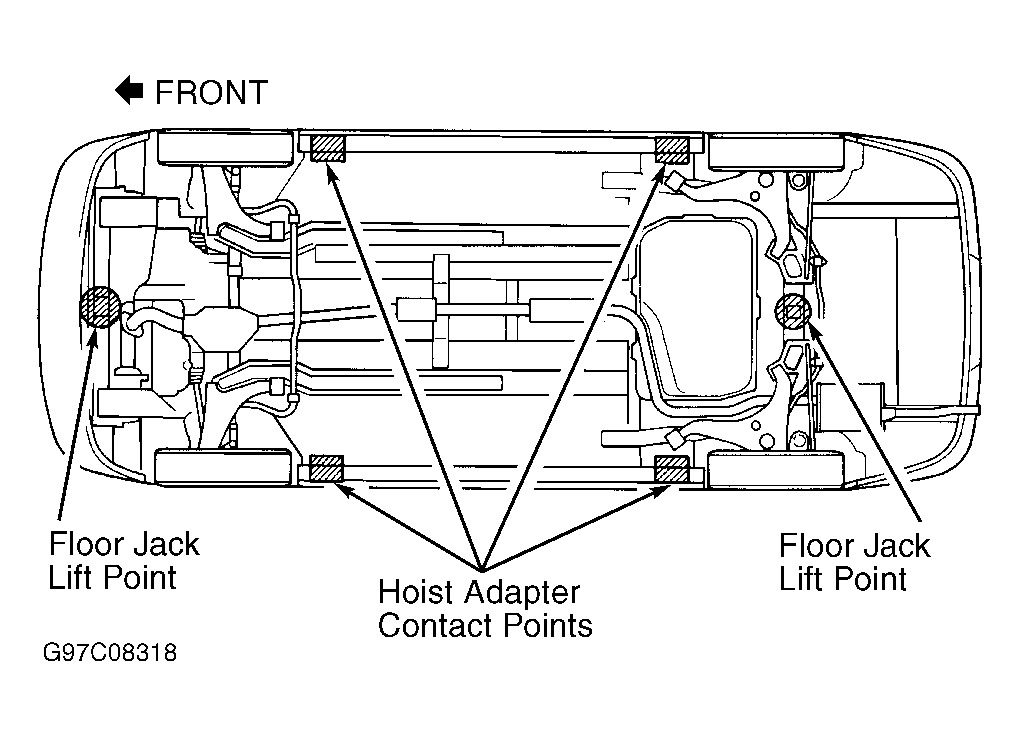

Fig 1: Identifying Lifting Points (Esteem)

Courtesy of SUZUKI OF AMERICA CORP.

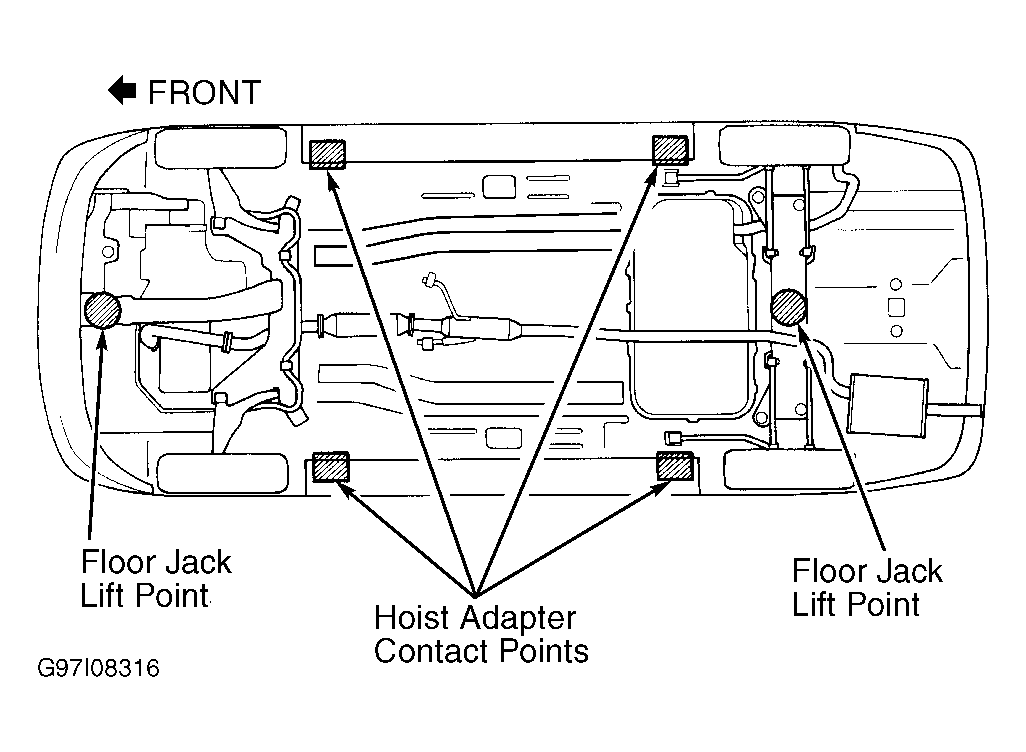

Fig 2: Identifying Lifting Points (Swift)

Courtesy of SUZUKI OF AMERICA CORP.

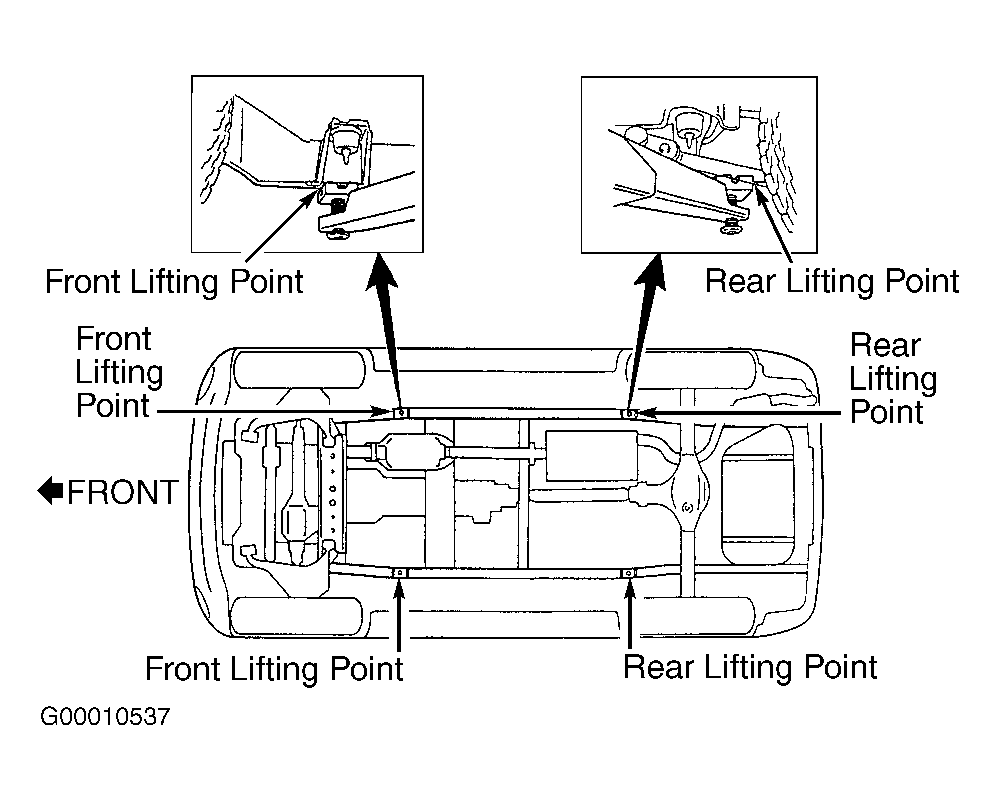

Fig 3: Identifying Lifting Points Using Frame Contact Hoist (Grand Vitara & Vitara)

Courtesy of SUZUKI OF AMERICA CORP.
