Programmable Keyless Entry System (TS 02 12164R)

Publication date: 2004-12-16
Reference number: TS 02 12164R

PROGRAMMABLE KEYLESS ENTRY SYSTEM

TECHNICAL SERVICE BULLETIN

Reference Number(s): TS 02 12164R, Date of Issue: December 16, 2004

SUZUKI:	2001-2002 ALL MODELS
SECTION:	General Info.

CONDITION

The Keyless Entry System is inoperative when using transmitter(s). Transmitter(s) battery is good.

CAUSE

The signals between the transmitter and the controller are no longer programmed together (unsynchronized).

CONDITION

2001 - 2002 models: Use the applicable Service Manual to diagnose the concern. If diagnostics determine the transmitters(s) or controller need to be replaced, install a new programmable Keyless Controller Set. Then use the programming procedure located in the KEYLESS ENTRY SYSTEM OWNER'S MANUAL SUPPLEMENT.

REVISION

2003 information removed due to confusion in the field. See appropriate Service Manual 2003 keyless entry system repair procedure.

PART(S) INFORMATION

Part Number	Description	Qty.	Notes
37190-54G51	Keyless Controller Set	1	2002 Aerio (includes controller, [2] transmitters, Keyless Entry System Owner's Manual Supplement)
37190-66D11	Keyless Controller Set	1	2001 - 2002 Grand Vitara, Vitara (includes controller, [2] transmitters, Keyless Entry System Owner's Manual Supplement)
37190-52D21	Keyless Controller Set	1	2001 - 2002 XL-7 (includes controller, [2] transmitters, Keyless Entry System Owner's Manual Supplement)
37190-69G31	Keyless Controller Set	1	2001 - 2002 Esteem (includes controller, [2] transmitters, Keyless Entry System Owner's Manual Supplement)
37180-54G22	Keyless Transmitter (1 key fob)	1	2001 - 2002 All Models (can be replaced separately with reprogrammable Controller only)

2001 - 2002 MODELS

All 2001-2002 models with keyless entry systems have a factory installed non-programmable controller assembly . This controller is identified by a white connector (Fig 1 ) and only supports the original two transmitters provided with the vehicle. When replacing any component of the system, it requires the replacement of the controller assembly and its transmitters as a set.

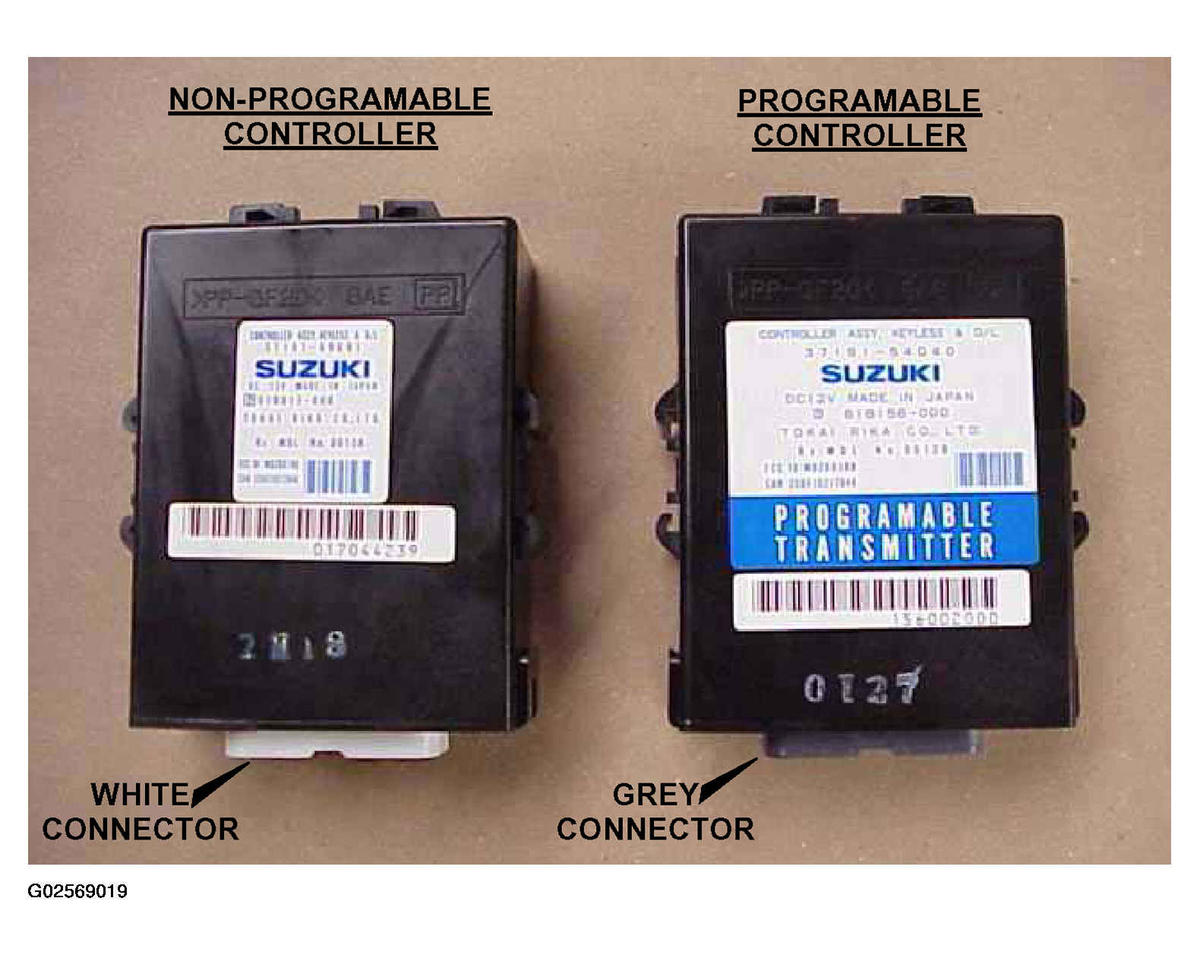

Fig 1: Controller Identification

Courtesy of SUZUKI OF AMERICA CORP.

A new programmable controller is now available as a set for these 2001 - 2002 vehicles. The programmable controller is identified by a label stating "PROGRAMMABLE TRANSMITTER" and a grey connector as shown in Fig 1 .

NOTE: The new controller can support up to 4 transmitters. Extra transmitters are available (see PARTS INFORMATION).

On these 2001-2002 models, perform the diagnostics located in the applicable Service Manual and if it states to replace the controller or transmitter(s), be sure to install the new programmable Keyless Controller Set . Then program up to four (4) transmitters to the controller using the Owner's Manual Supplement instructions which is packed with the controller set.

NOTE: After programming the transmitters to the controller, be sure to place the Keyless Entry System Owner's Manual Supplement in with the Vehicle Owner's Manual. The customer will then have the information available to program their transmitters to their controller, if needed.
