Circuit Protection Devices

CIRCUIT PROTECTION DEVICES LOCATION

Component Component Location

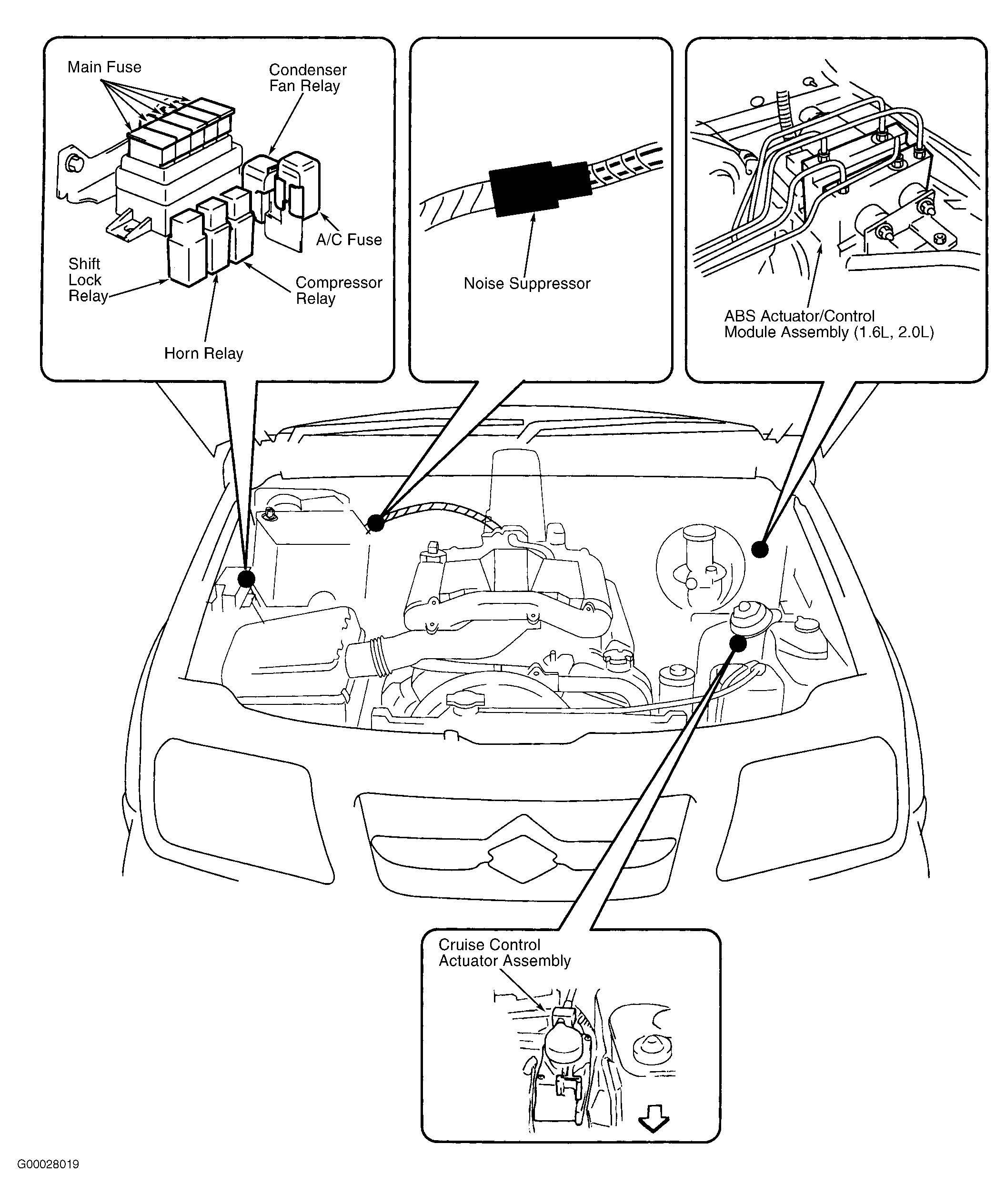

A/C Fuse In underhood fuse/relay box. See Figure .

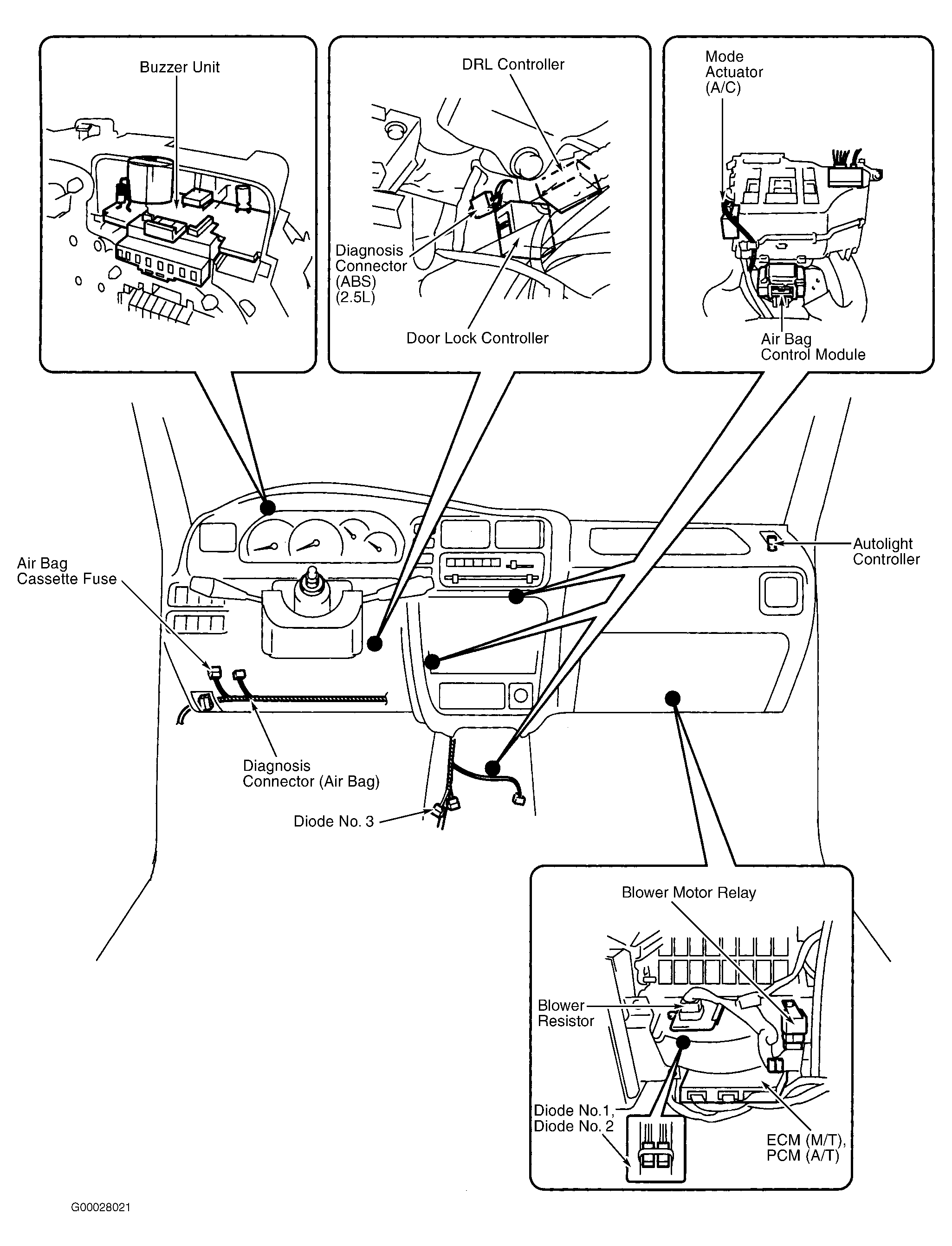

Air Bag Cassette Fuse Behind left side of dash. See Figure .
Main Fuse In underhood fuse/relay box. See Figure .
Underdash Fuse/Relay Box At lower left side of dash.
Underhood Fuse/Relay Box At right side of engine compartment.
