System Specifications

AUTOMATIC TRANSMISSION





GENERAL SPECIFICATIONS

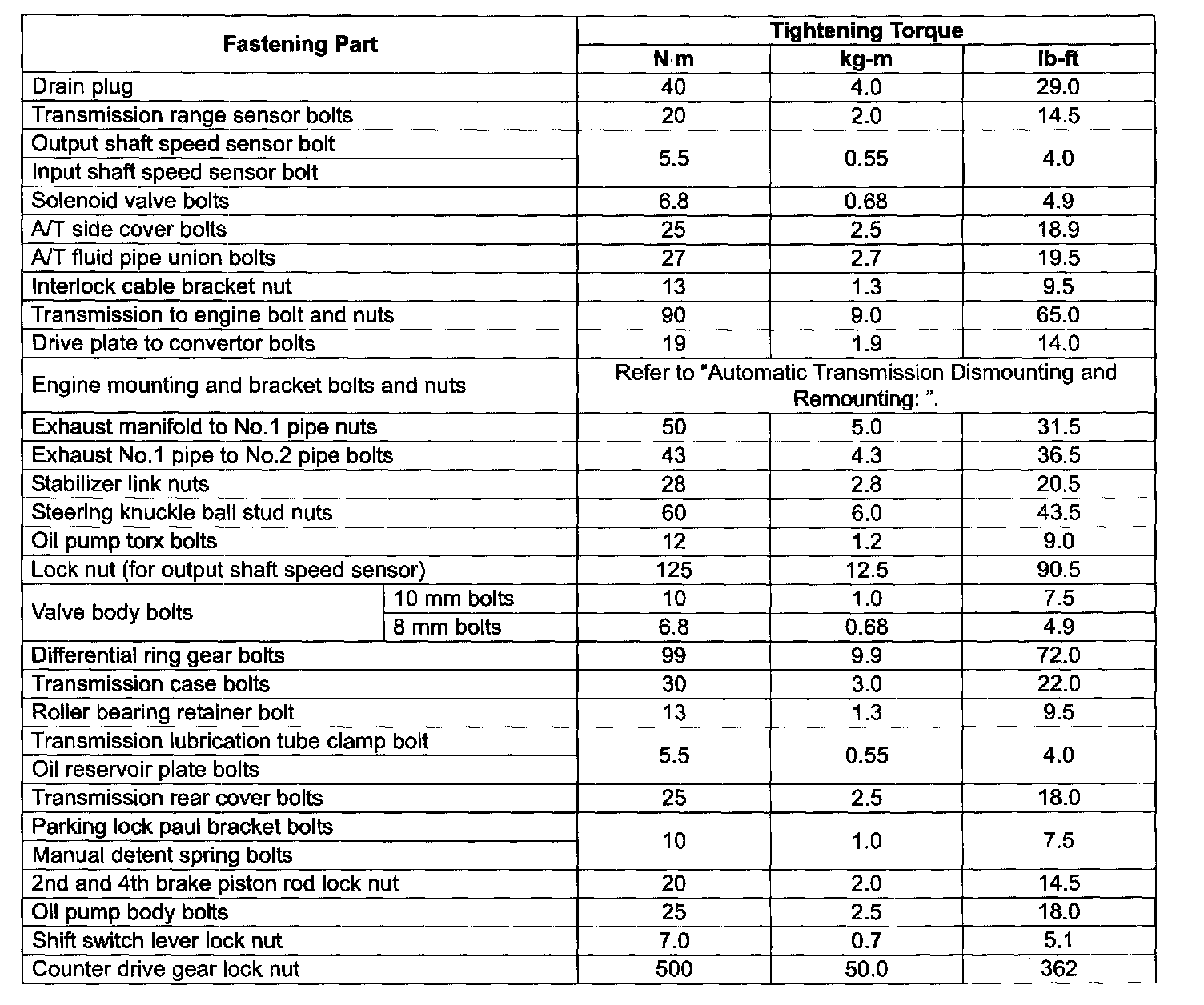

TIGHTENING TORQUE SPECIFICATIONS

COMPONENTS

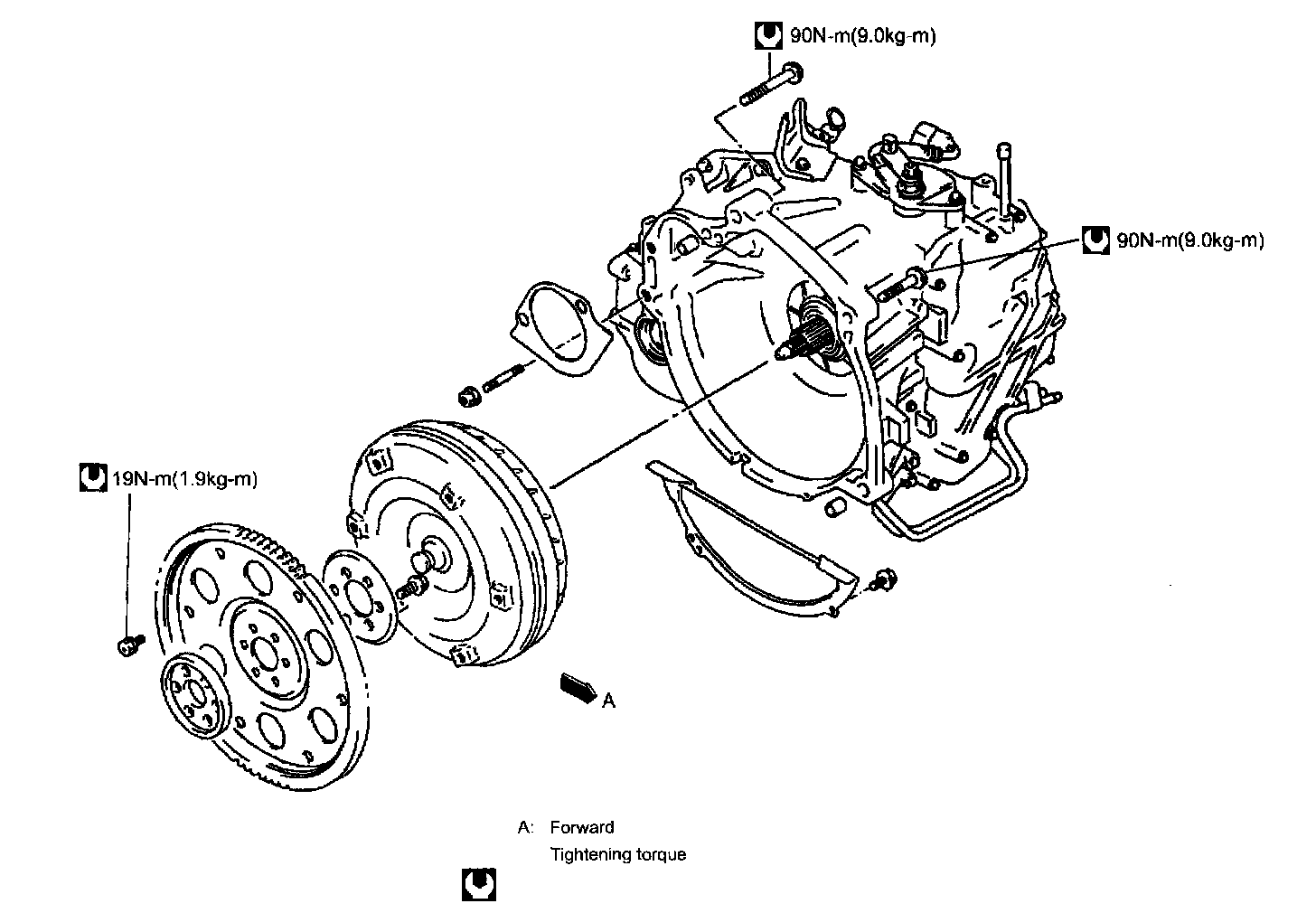

AUTOMATIC TRANSMISSION COMPONENTS





AUTOMATIC TRANSMISSION UNIT COMPONENTS





OIL PUMP COMPONENTS
