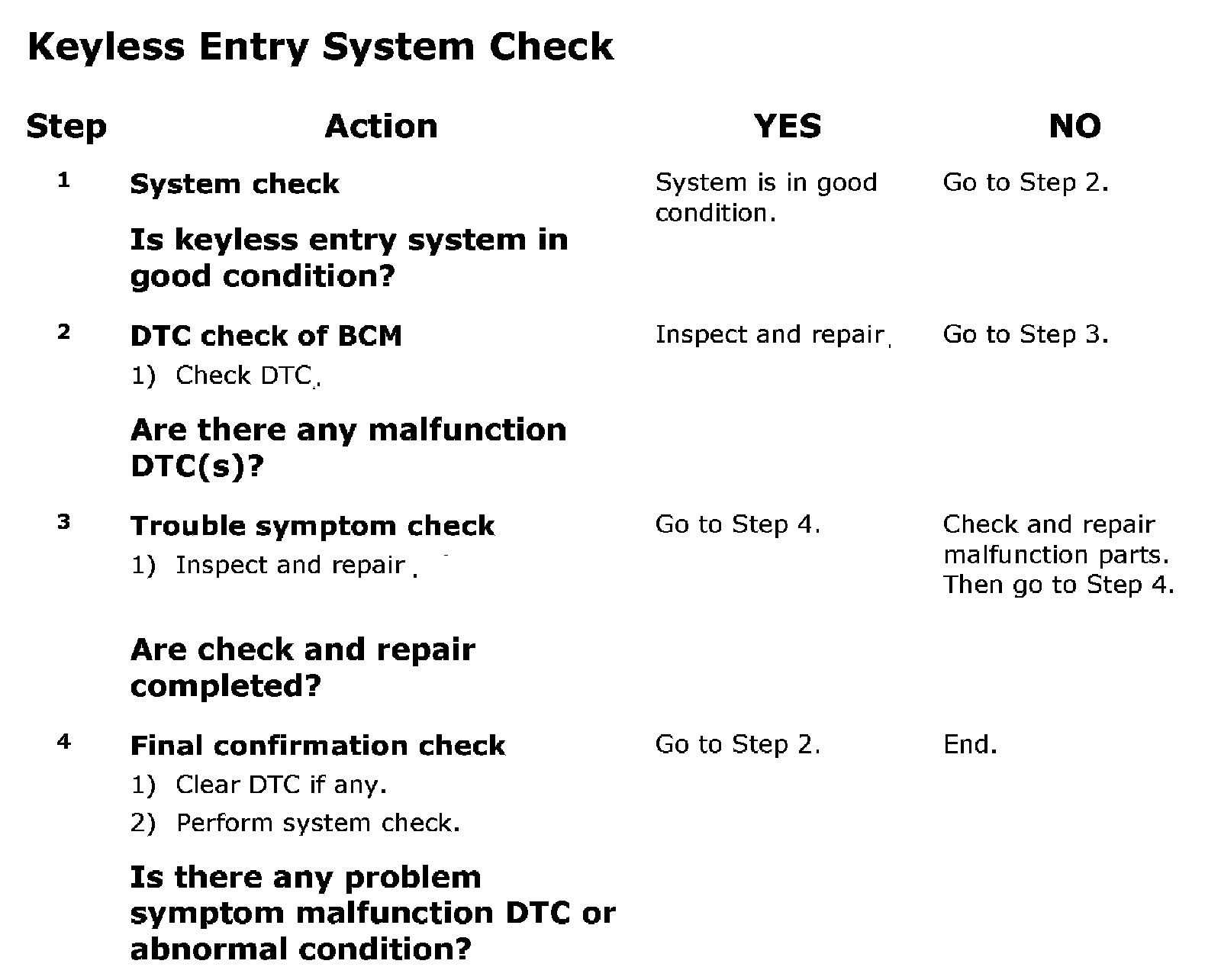

Keyless Entry System Check
The content of this article/image reflects the changes identified in TSB-TS 19 04286
Steps 1 - 4:
