Fuse: Locations

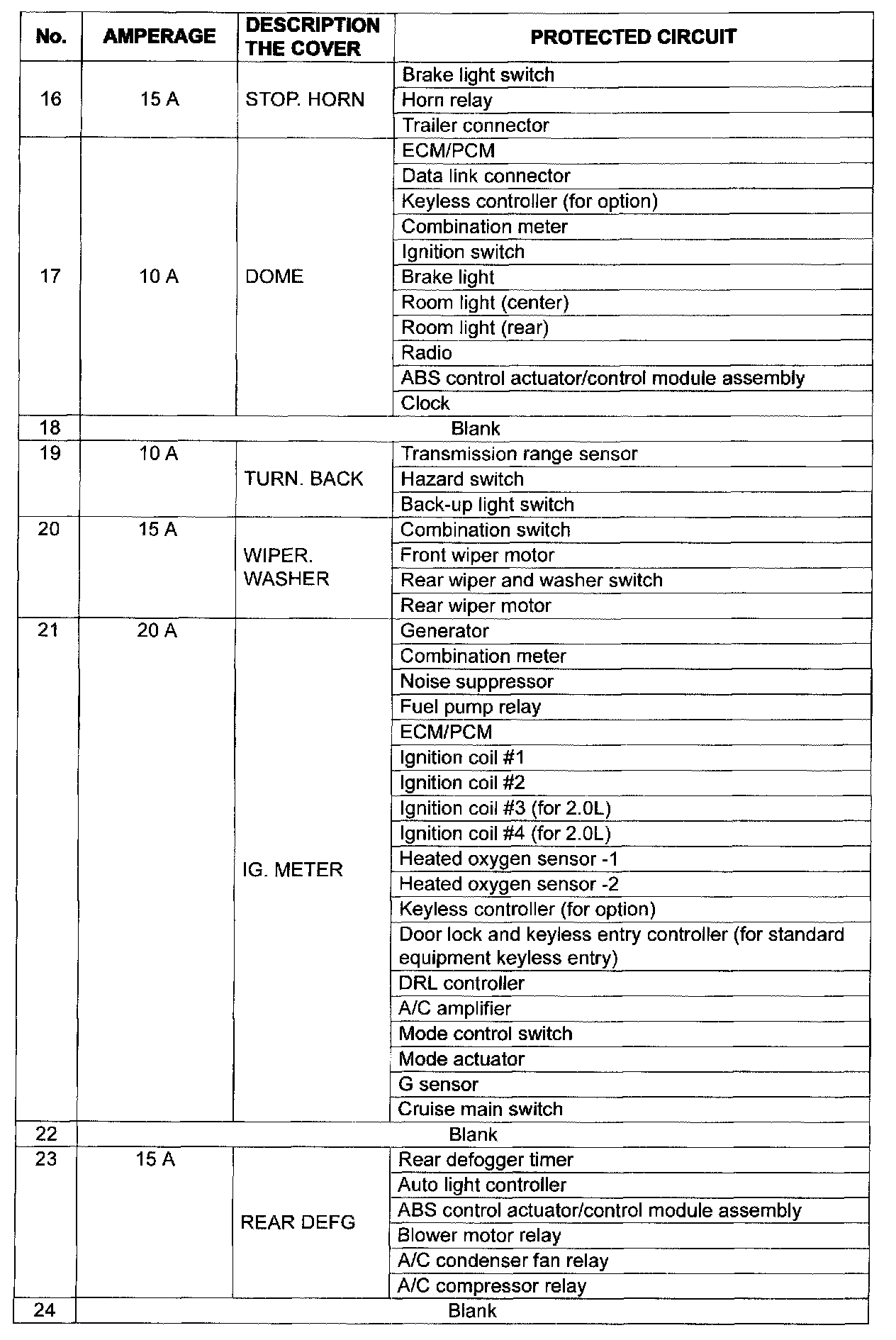

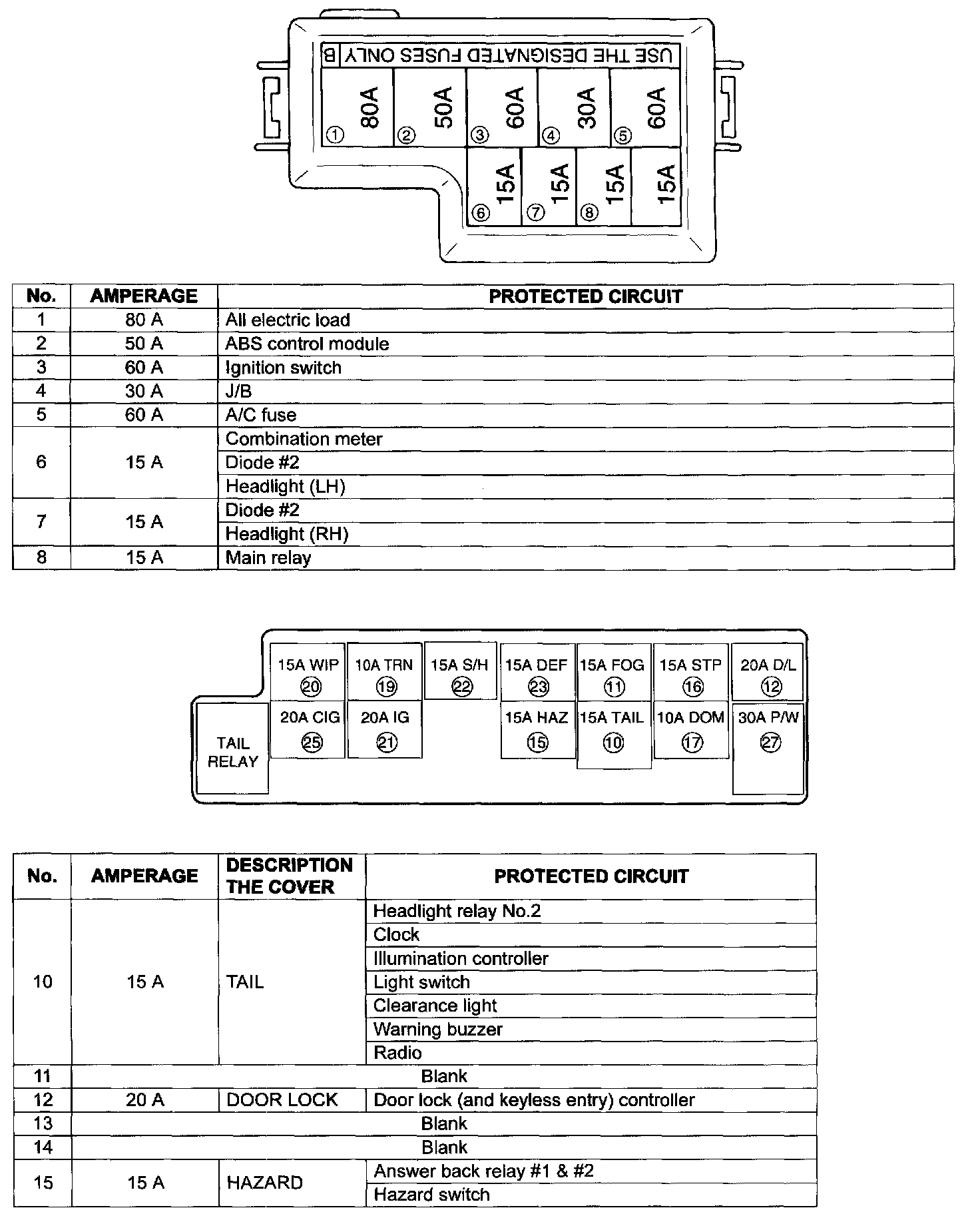

Fuses In Main Fuse Box Part 1:



Fuses In Main Fuse Box Part 2:



Fuses In Main Fuse Box Part 3:



Engine Room Part 1:
