Windows: Diagrams

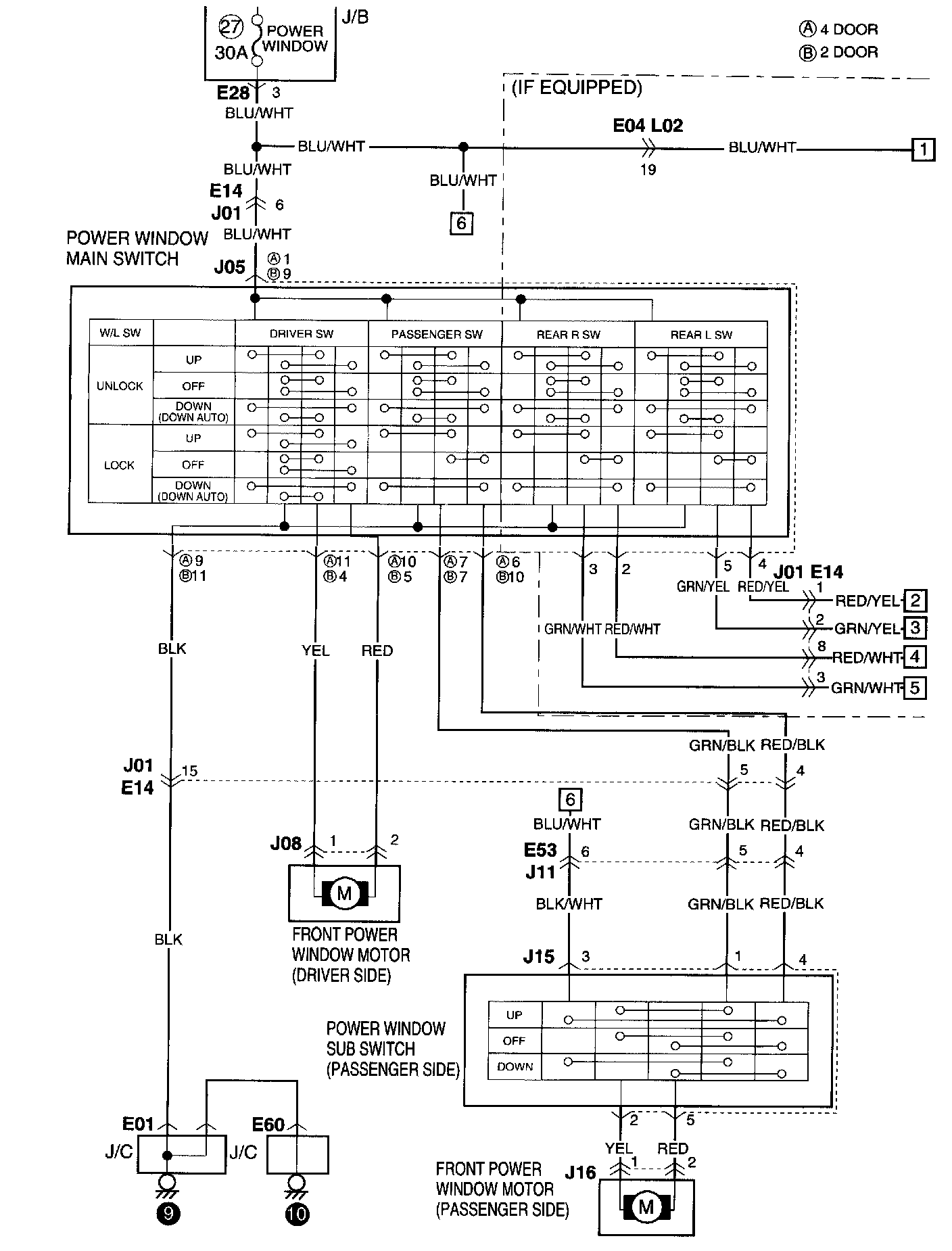

Power Door Lock Circuit Diagram-Power Window Circuit Diagram 1:

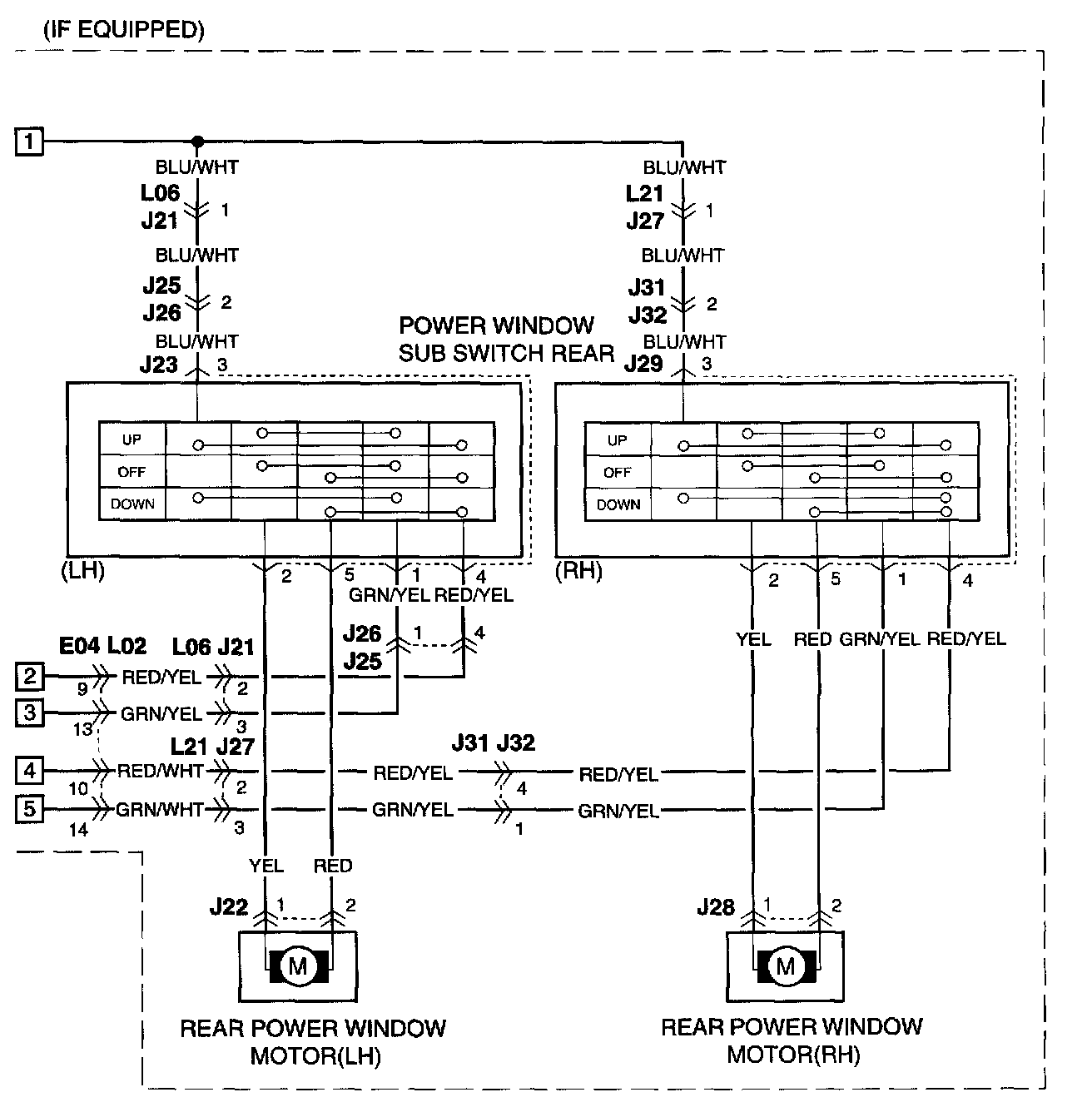

Power Door Lock Circuit Diagram-Power Window Circuit Diagram 2:
