BCM and Related System Location

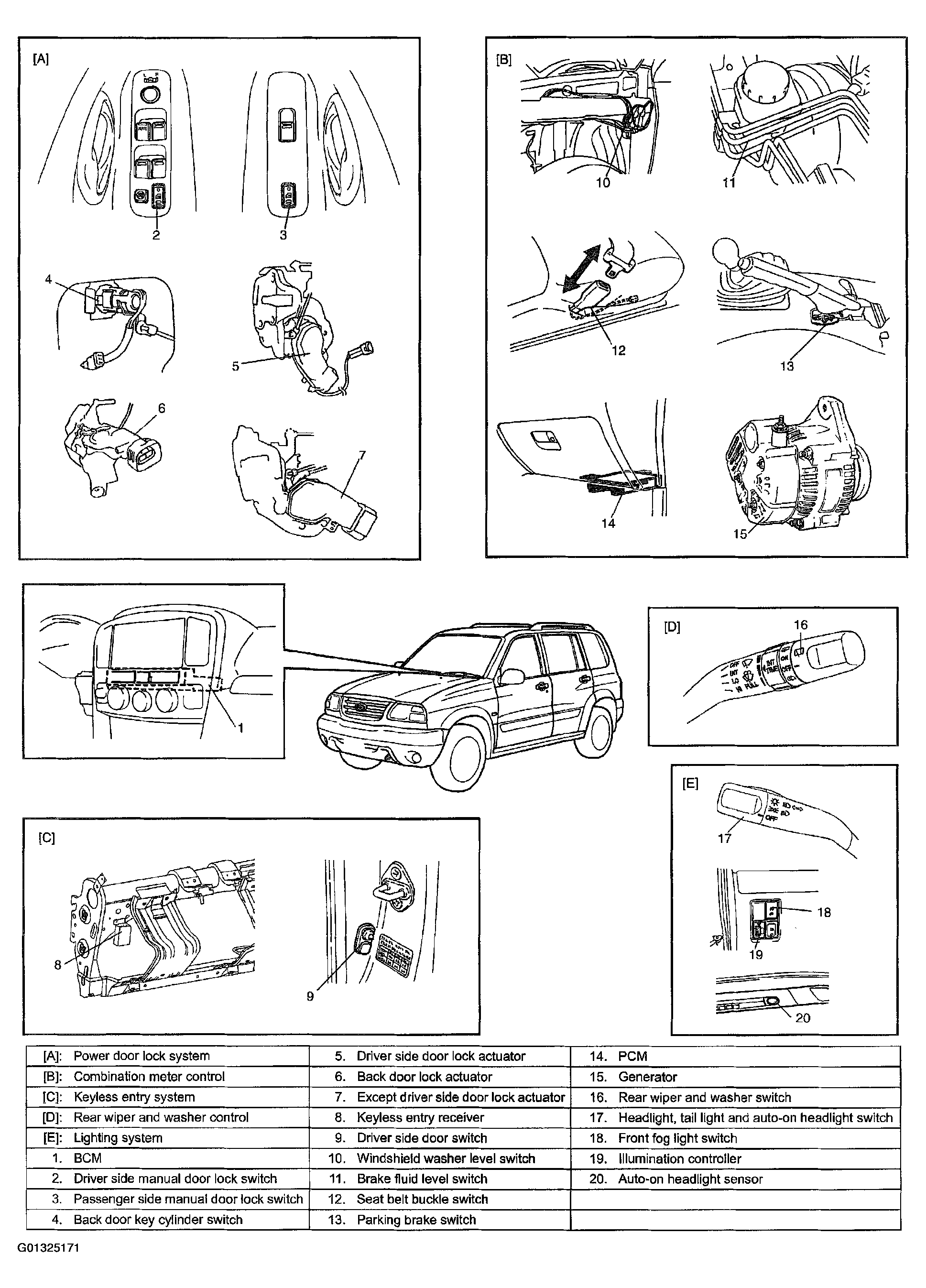

Fig 1: Locating BCM and Related System Components
Courtesy of SUZUKI OF AMERICA CORP.
