ABS Check: Notes

Refer to the following chart for the details of each step.

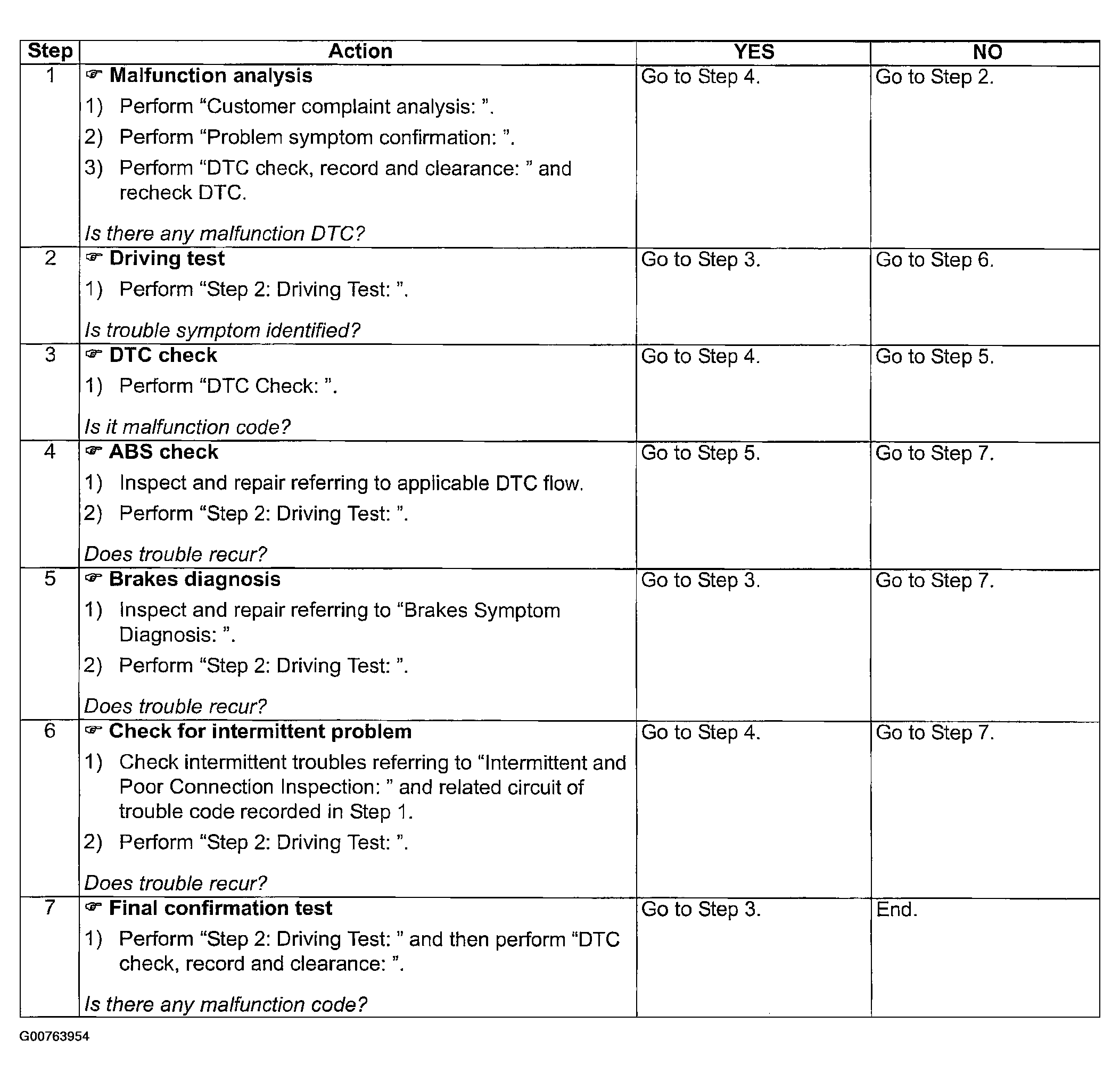

Fig 1: ABS Check Details Chart
G00763954Courtesy of SUZUKI OF AMERICA CORP.
