Engine and Emission Control System Check: Notes

Refer to the following items for the details of each step.

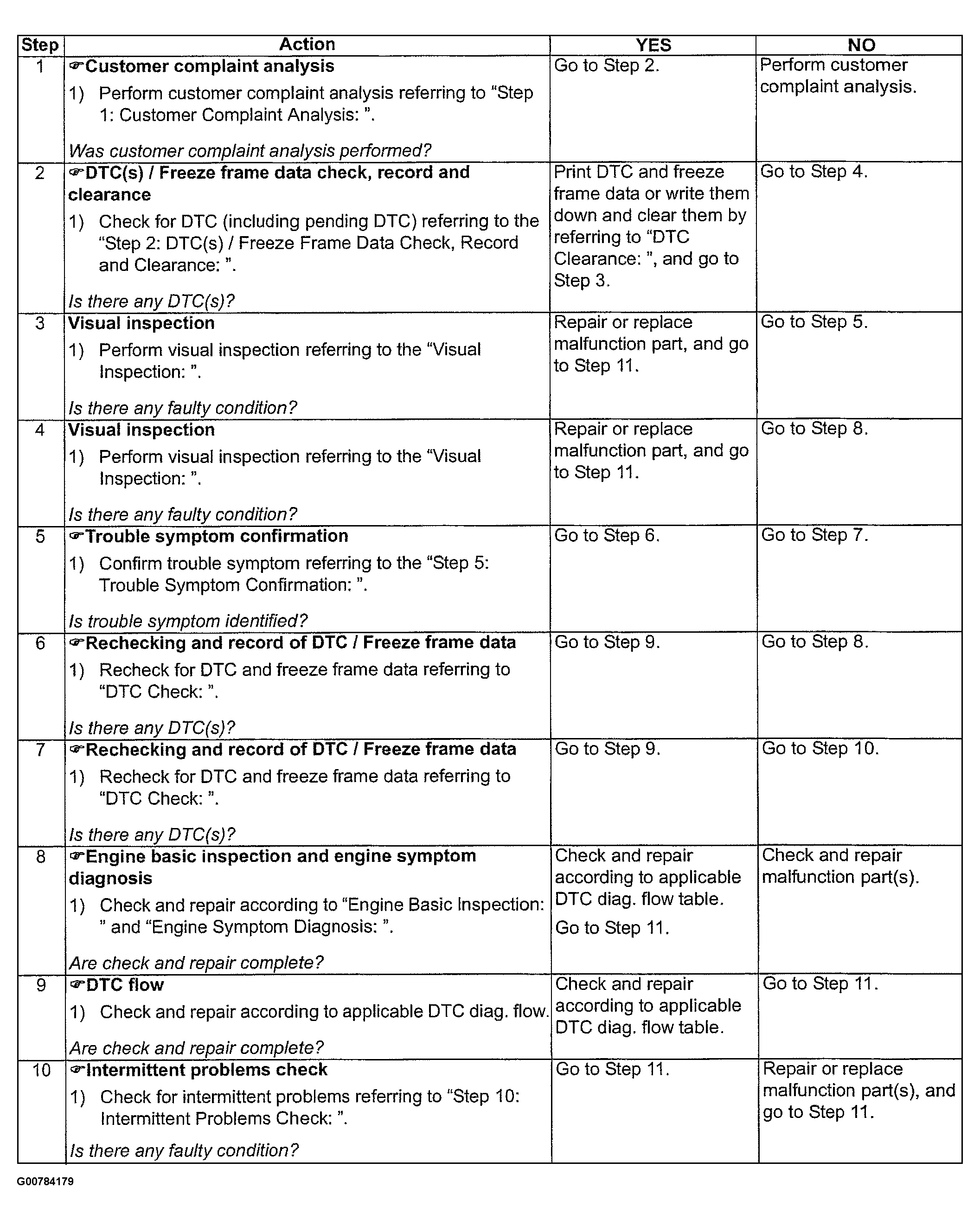

Fig 1: Checking Engine & Emission Control System (1 of 2)
G00784179Courtesy of SUZUKI OF AMERICA CORP.

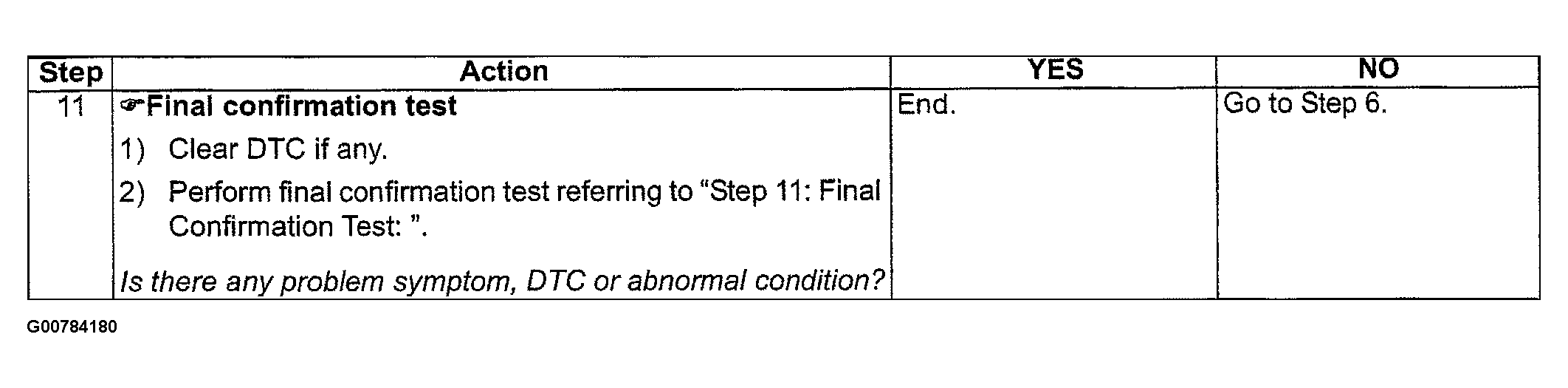

Fig 2: Checking Engine & Emission Control System (2 of 2)
G00784180Courtesy of SUZUKI OF AMERICA CORP.
