ABS Hydraulic Unit/Control Module Assembly Removal and Installation: Removal

NOTE: Before removal, inspect the parts referring to ABS Hydraulic Unit/Control Module Assembly On-Vehicle Inspection  .

1. Disconnect negative cable from battery.
2. Disconnect ABS hydraulic unit/control module assembly connector (1) by pull down the lock (2).

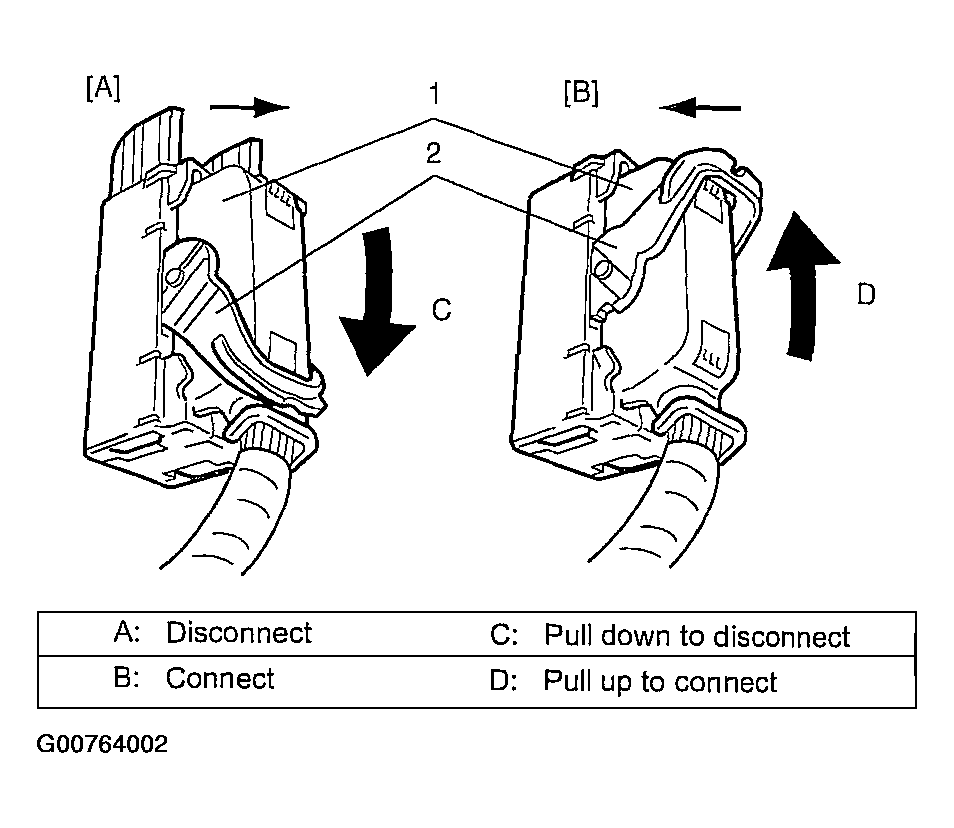

   Fig 1: Disconnecting ABS Hydraulic Unit/Control Module Assembly Connector

   Courtesy of SUZUKI OF AMERICA CORP.
3. Using special tool (09950-78220), loosen flare nuts (1) and disconnect brake pipes (2) from ABS hydraulic unit/control module assembly (3).
   Fig 2: Special Tool (09950-78220)

   Courtesy of SUZUKI OF AMERICA CORP.
   NOTE: Put bleeder plug cap or the like onto pipe to prevent fluid from spilling. Do not allow brake fluid to get on painted surfaces.
4. Remove three bolts and disconnect take out ABS hydraulic unit/control module assembly (1) from bracket using flat end rod or the like (2).

CAUTION:

• Do not give an impact to hydraulic unit.
• Use care not to allow dust to enter hydraulic unit.
• Do not place hydraulic unit on its side or upside down. Handling it in inappropriate way will affect its original performance.

Fig 3: Removing ABS Hydraulic Unit/Control Module Assembly

Courtesy of SUZUKI OF AMERICA CORP.
