Electronic Control System Components Location

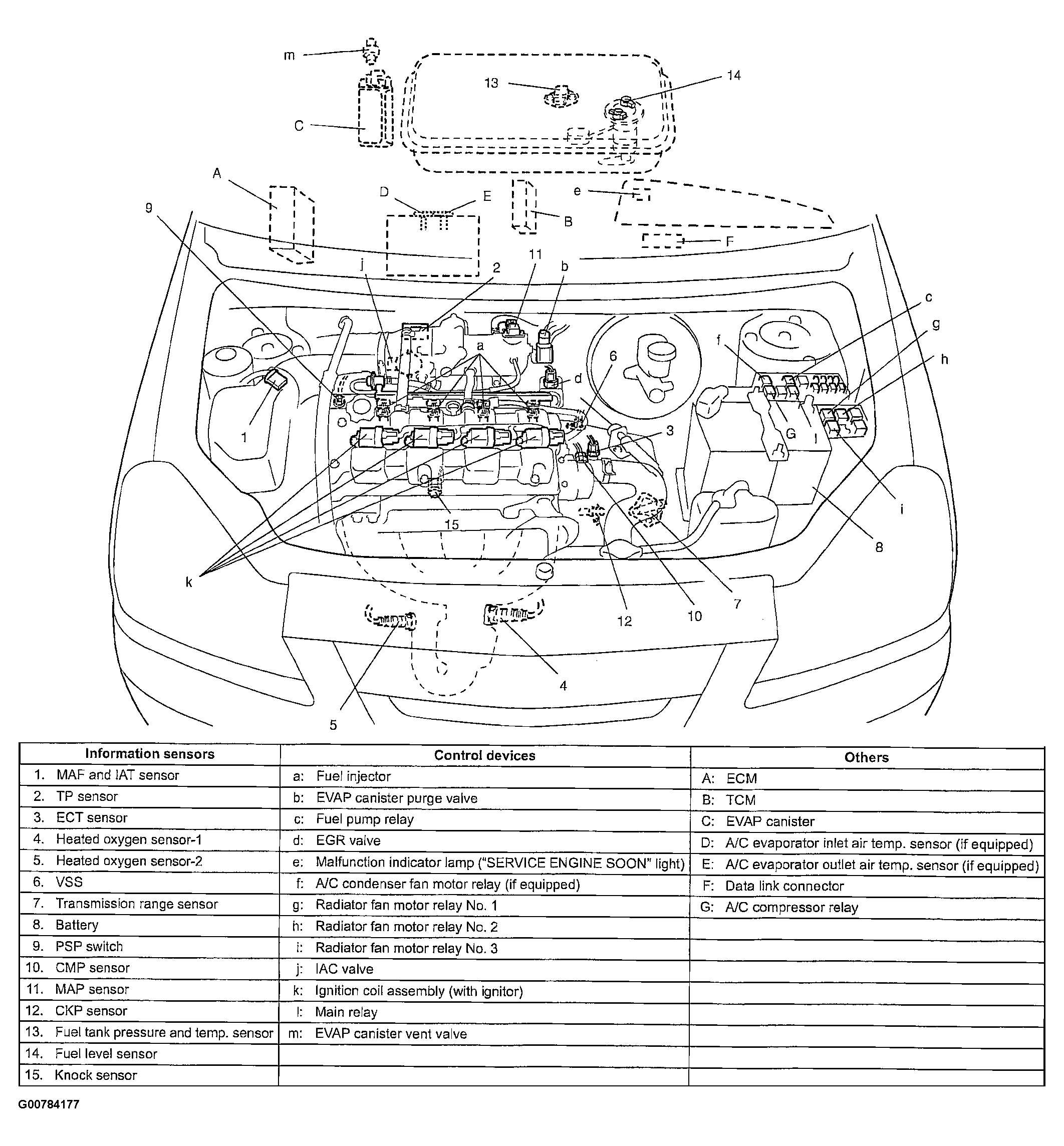

Fig 1: Electronic Control System Components Locations
G00784177Courtesy of SUZUKI OF AMERICA CORP.
