Speed Sensitive Power Steering Control Module Removal and Installation: Removal

  1. Disconnect negative battery cable.
  2. Remove the glove box.
  3. Slide the speed sensitive power steering (SSPS) control module off from the control module bracket.
  4. Disconnect the electrical connector from the SSPS control module.

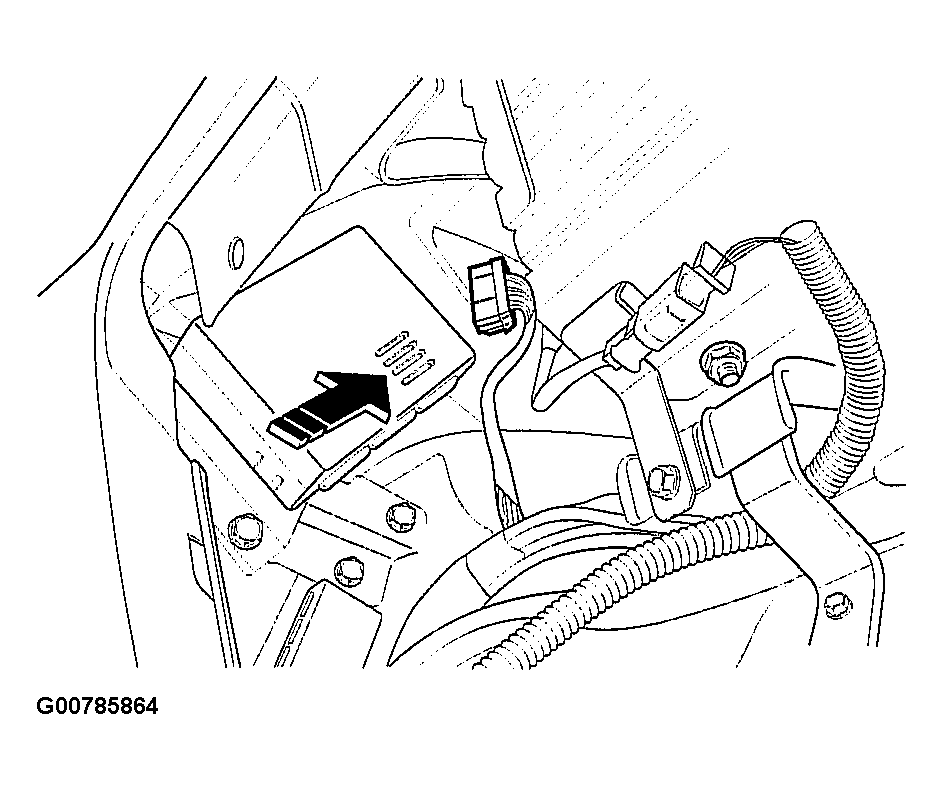

    Fig 1: Removing SSPS Module
    G00785864Courtesy of SUZUKI OF AMERICA CORP.
