Diagnostic Aids

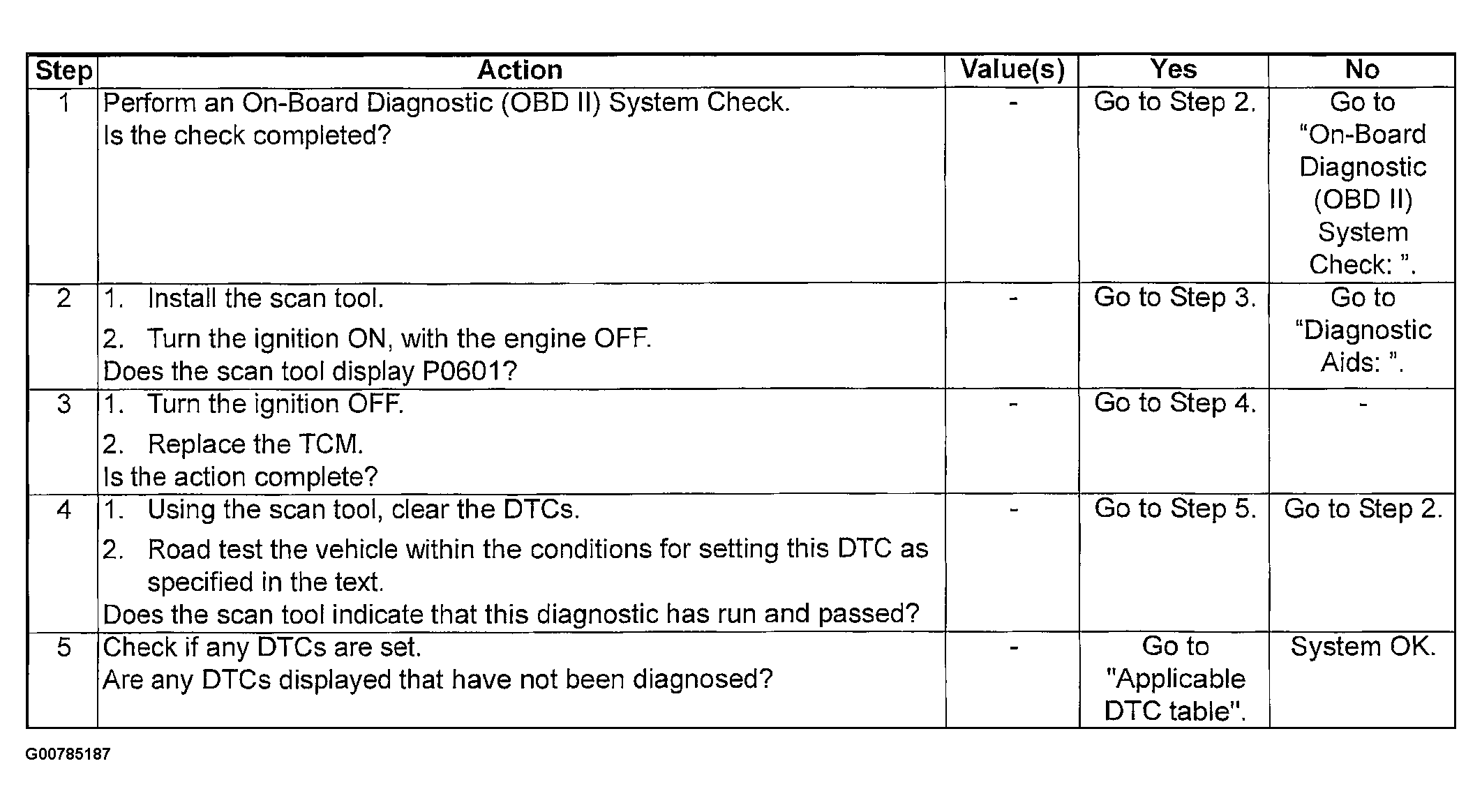

Fig 1: DTC P0601 Internal Control Module Memory Checksum Error Diagnostic Chart
G00785187Courtesy of SUZUKI OF AMERICA CORP.
