DTC P0601: Internal Control Module Memory Checksum Error: Notes

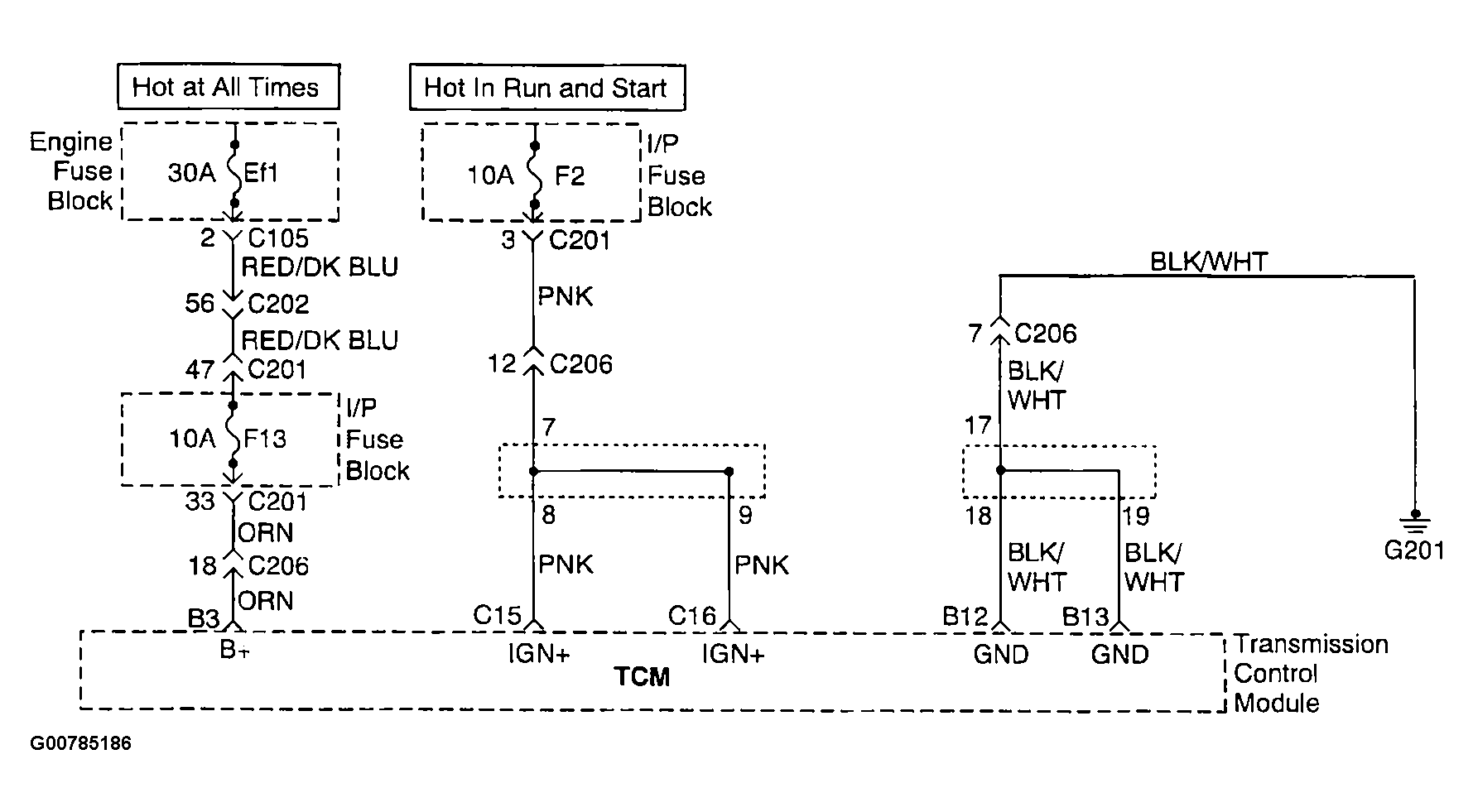

Fig 1: DTC P0601 Internal Control Module Memory Checksum Error - Diagnostic Wiring Diagram
G00785186Courtesy of SUZUKI OF AMERICA CORP.
