Diagnostic Aids

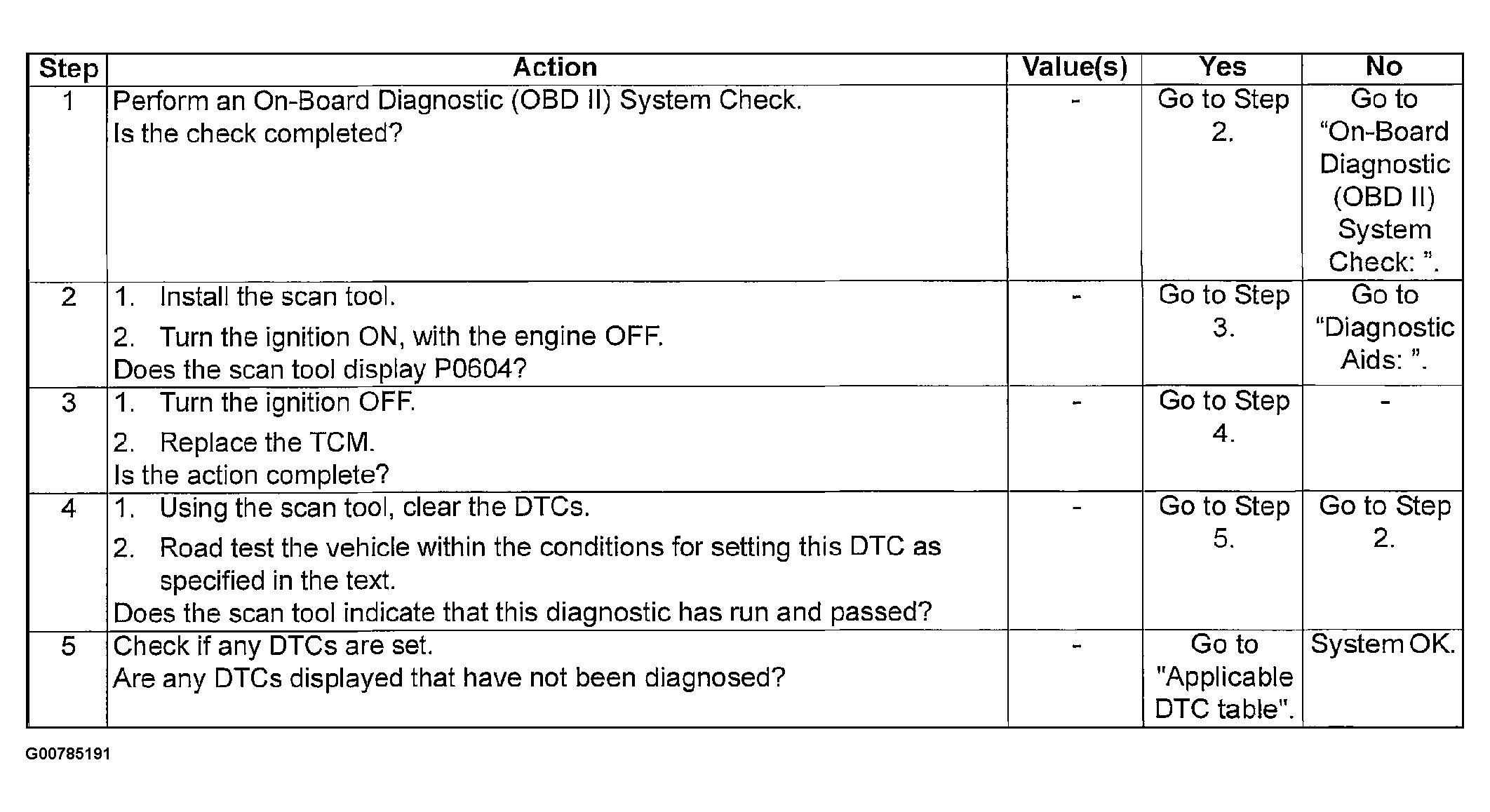

Fig 1: DTC P0604 Internal Control Module Random Access Memory (RAM) Error Diagnostic Chart
G00785191Courtesy of SUZUKI OF AMERICA CORP.
