DTC P0606: Transaxle Control Module Processor Fault: Notes

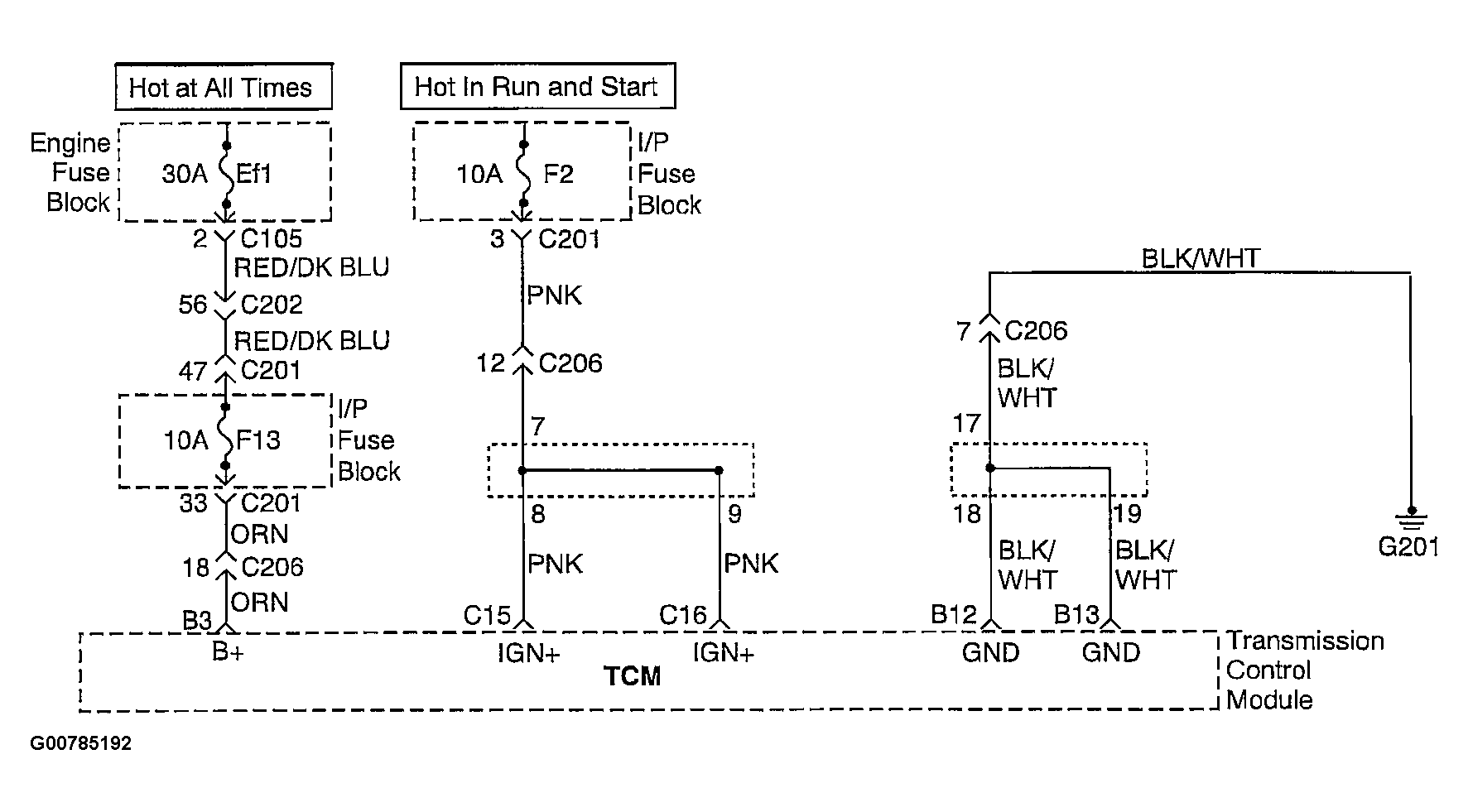

Fig 1: DTC P0606 Transaxle Control Module Processor Fault - Diagnostic Wiring Diagram
G00785192Courtesy of SUZUKI OF AMERICA CORP.
