Transaxle Components

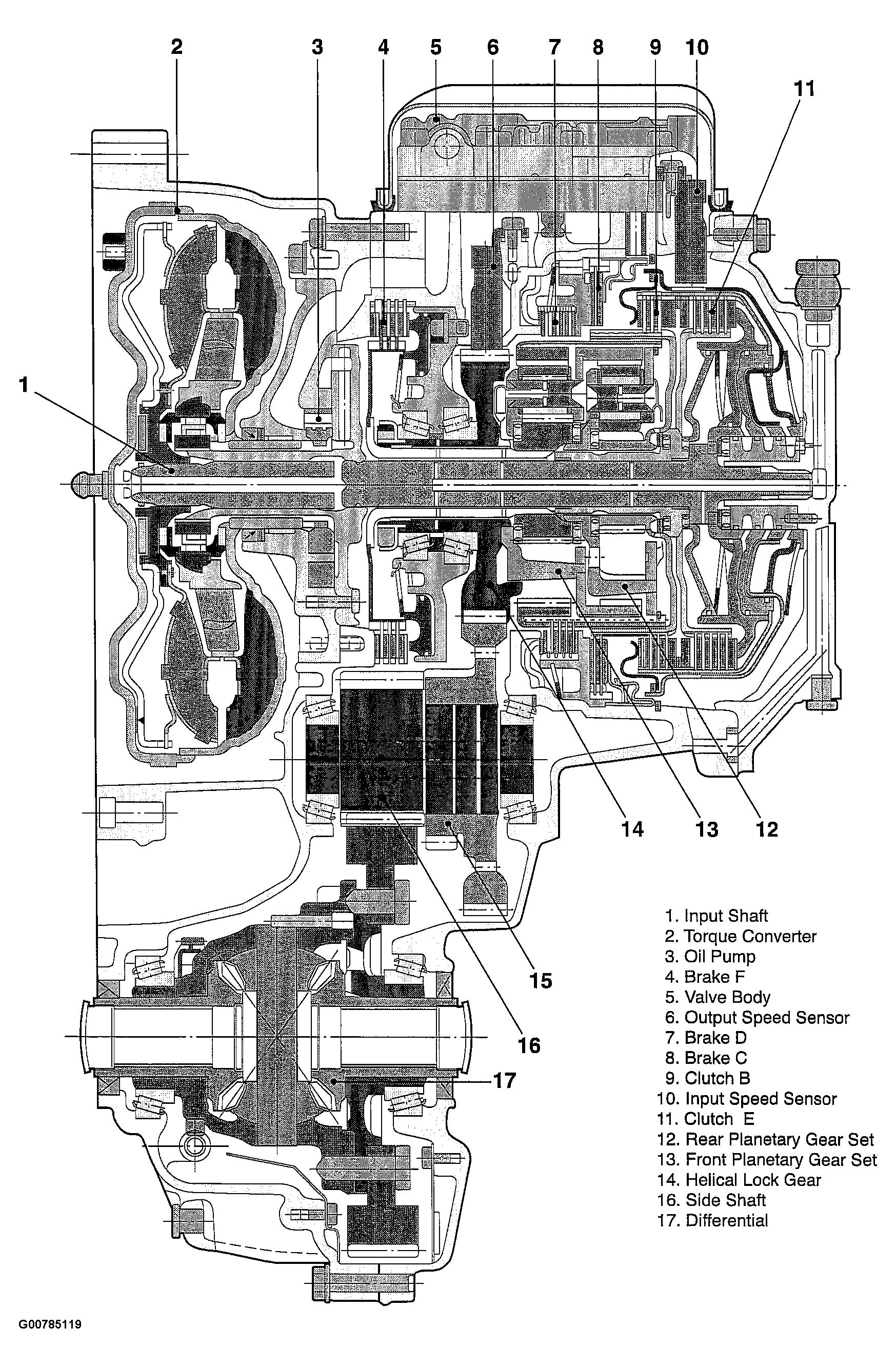

Fig 1: Cut-Away View Of ZF 4HP 16 Automatic Transaxle

G00785119

Courtesy of SUZUKI OF AMERICA CORP.
