Transaxle Control Module (TCM) Removal and Installation: Installation

  1. Install the TCM into the bracket.

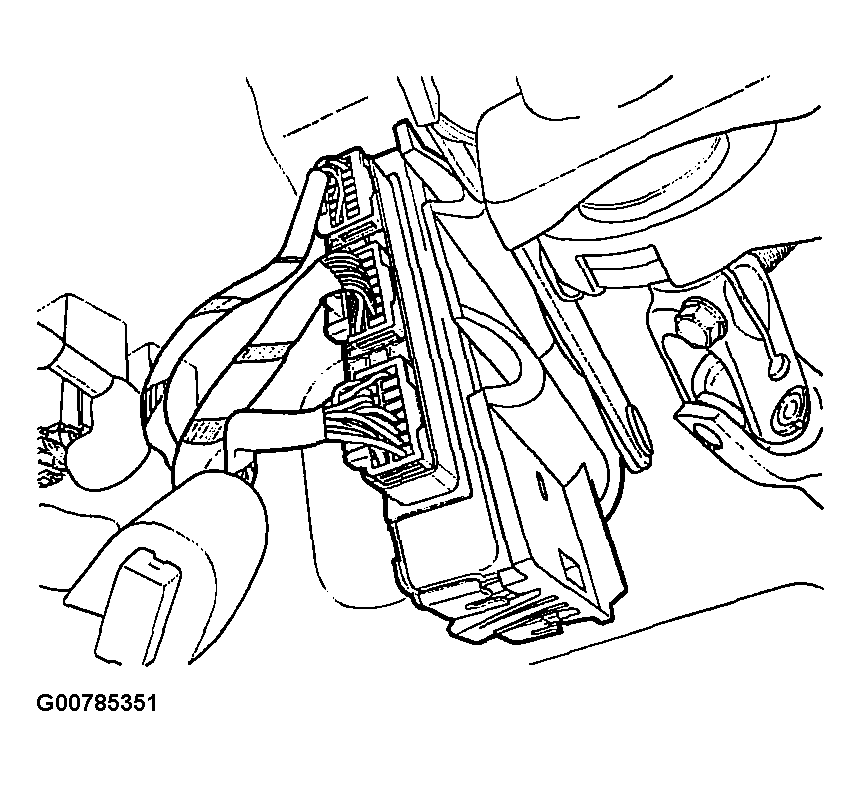

    Fig 1: Installing The TCM
    G00785351Courtesy of SUZUKI OF AMERICA CORP.
  2. Connect the wiring connectors.
  3. Connect the negative battery cable.
