Computers and Control Systems

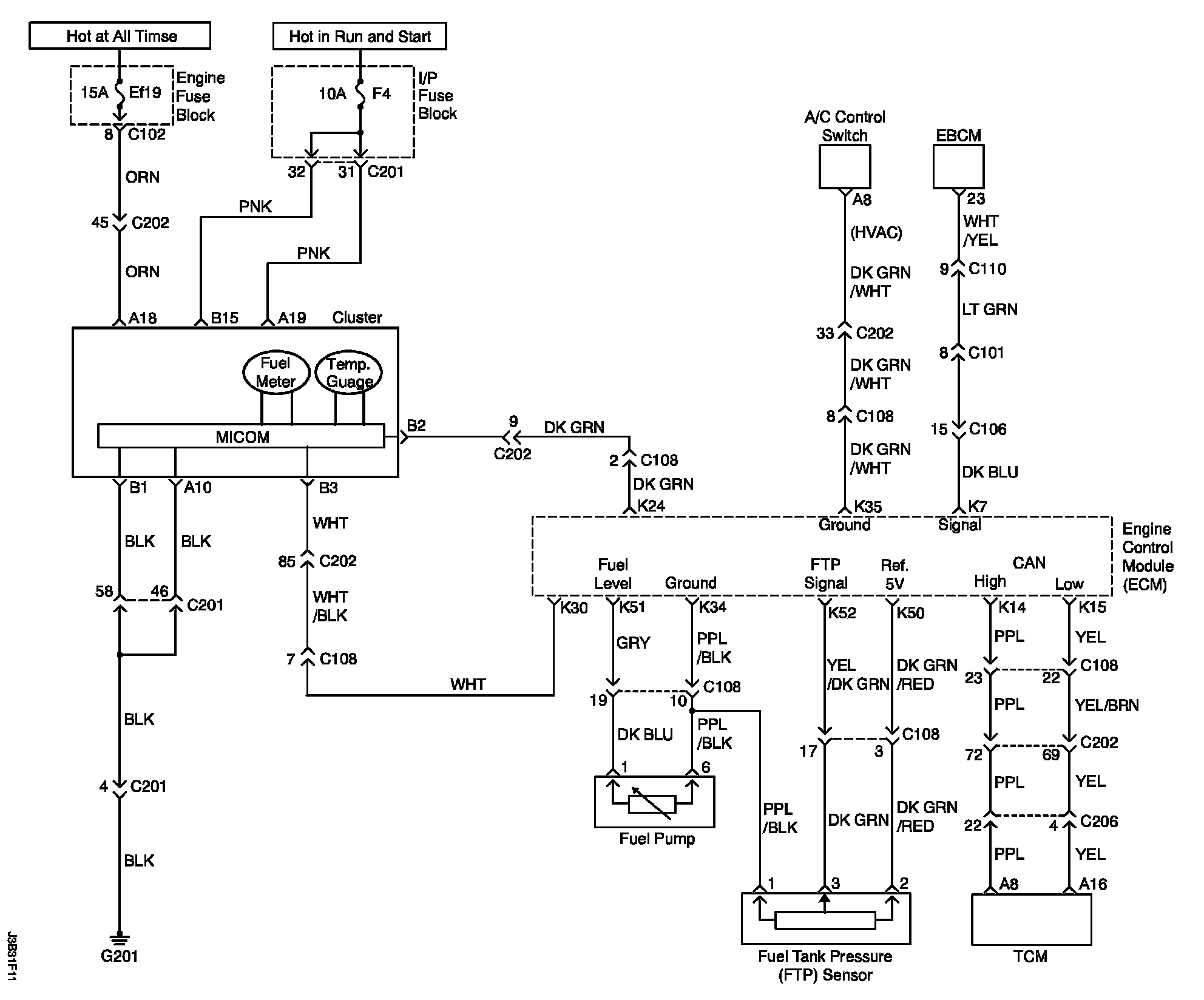

ECM Wiring Diagram - Part 1:

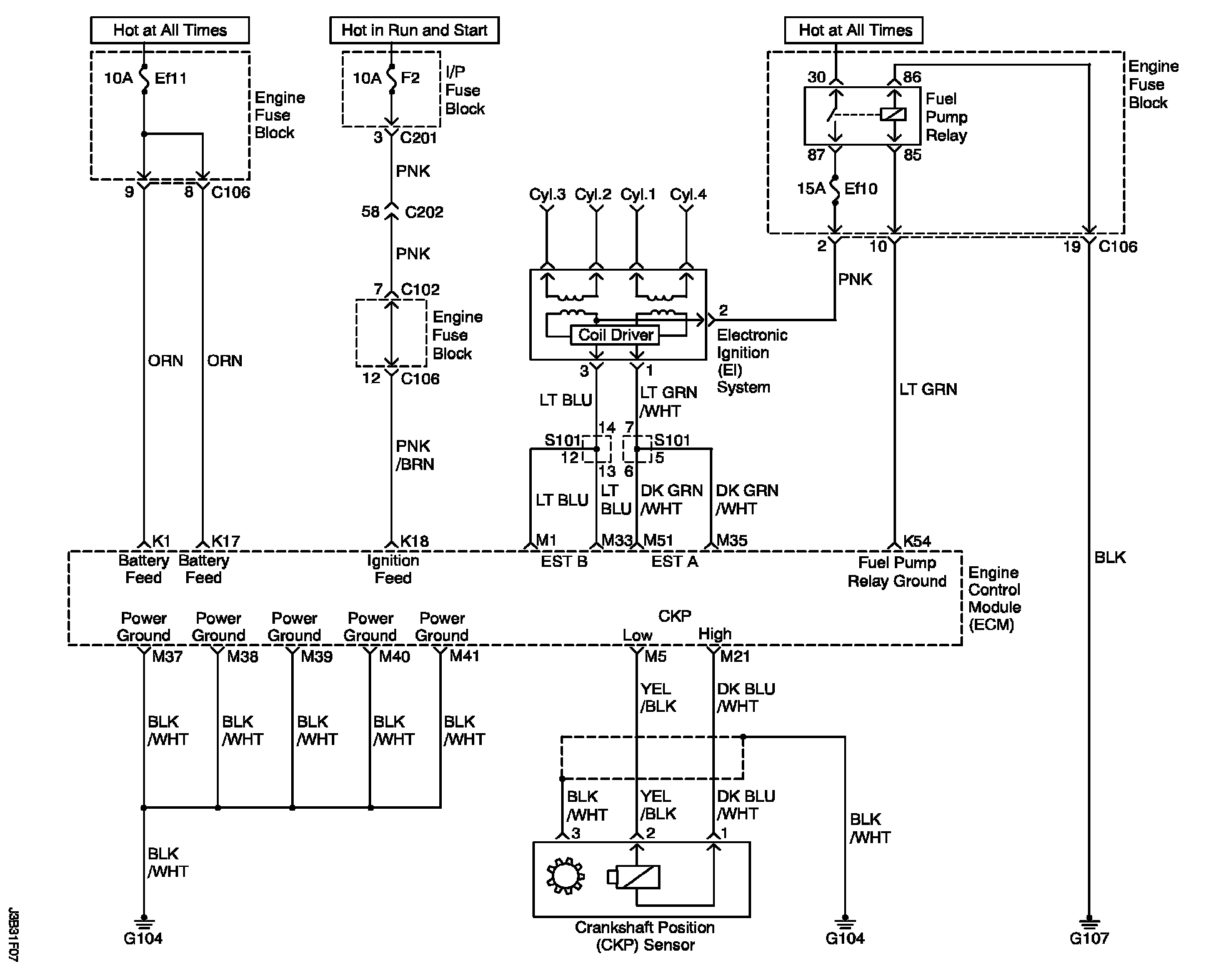

ECM Wiring Diagram - Part 2:

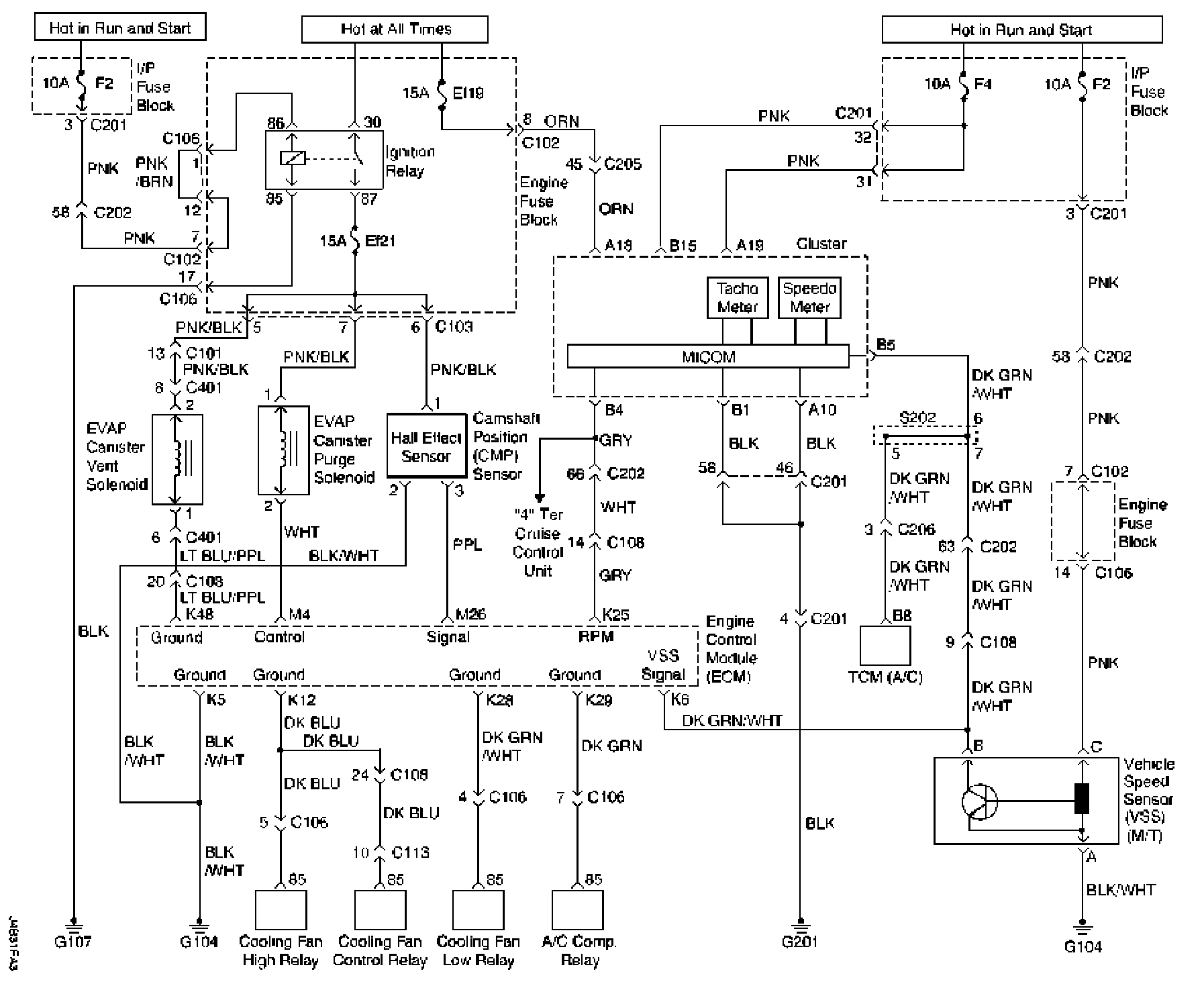

ECM Wiring Diagram - Part 3:

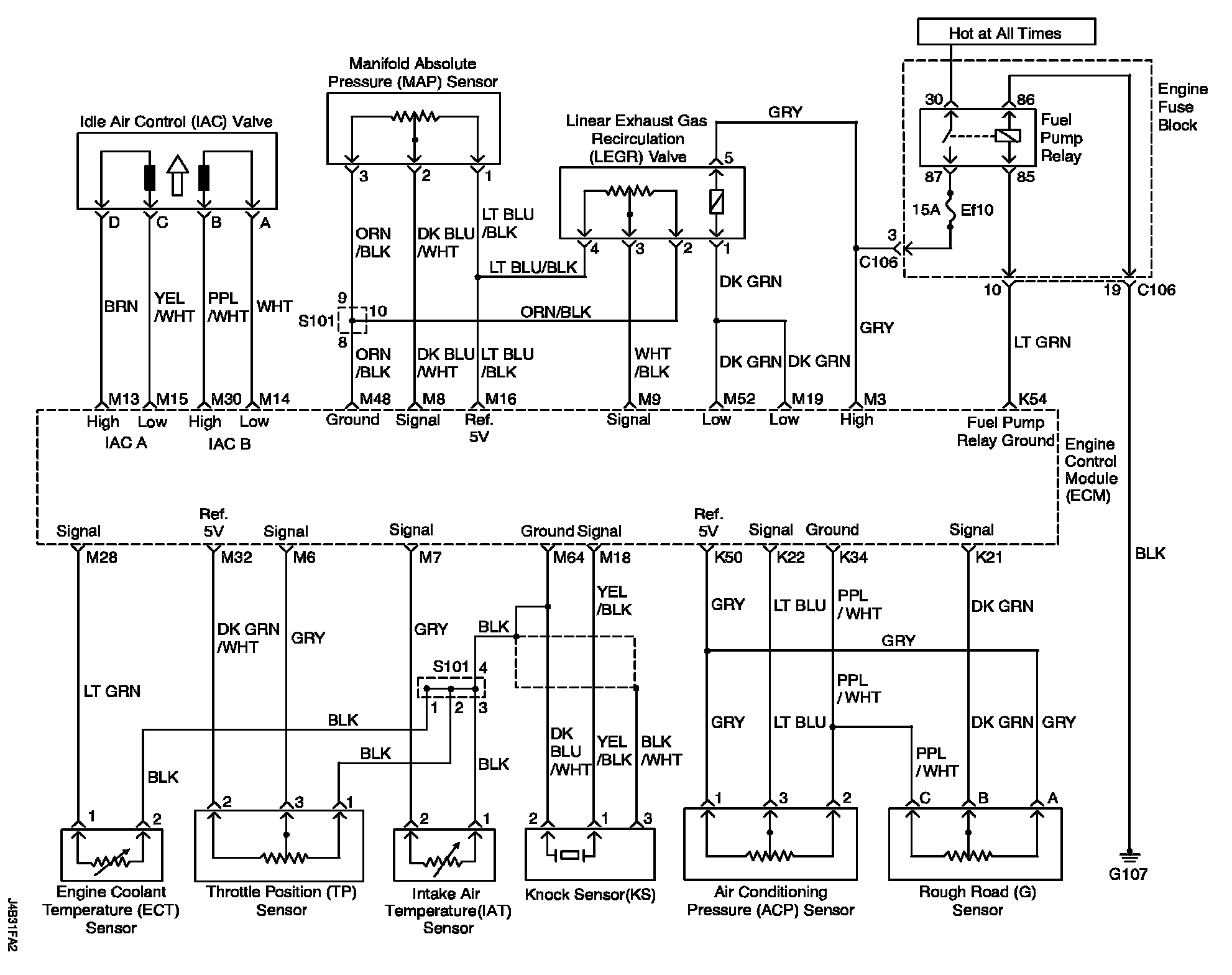

ECM Wiring Diagram - Part 4:




ECM Wiring Diagram - Part 5:

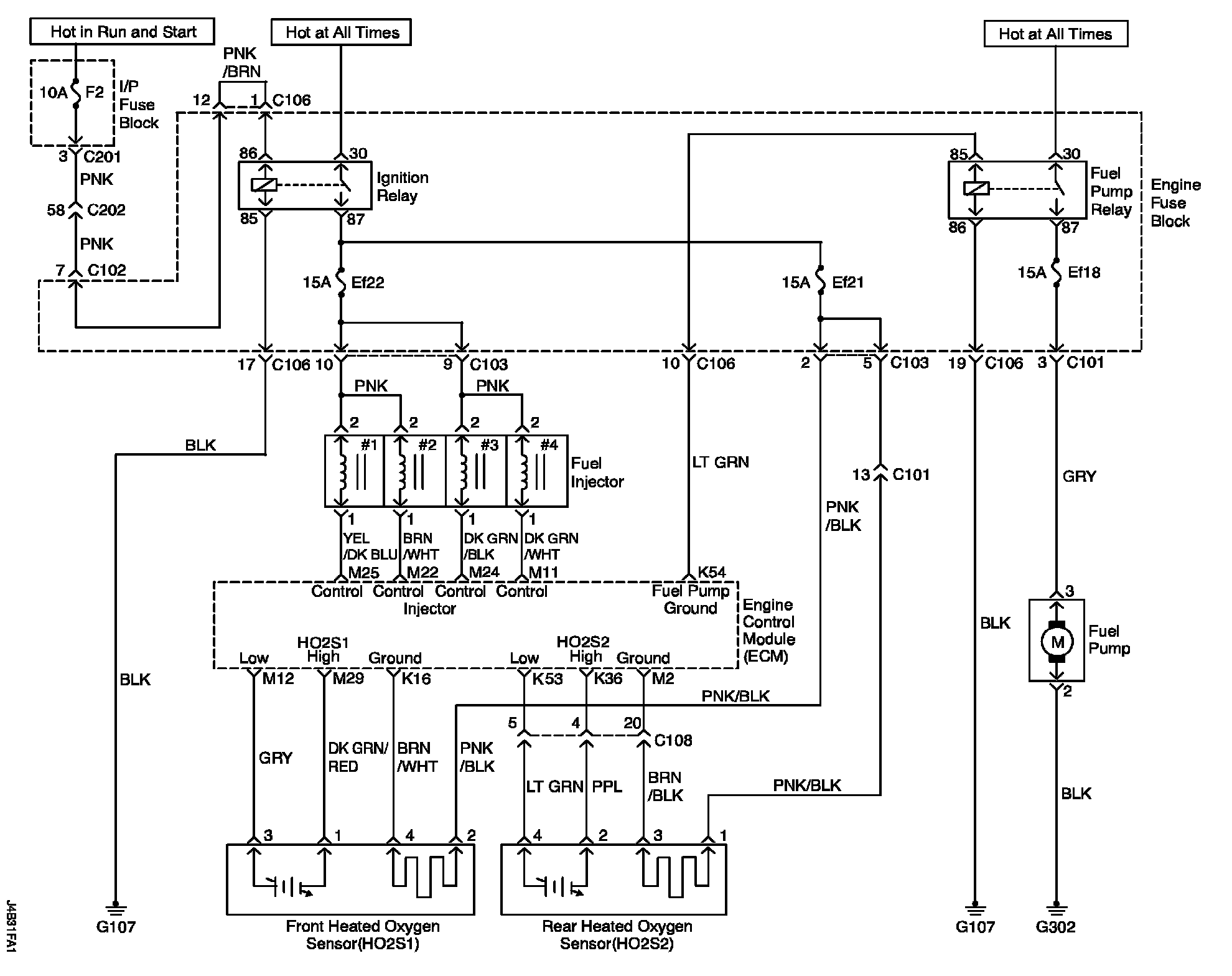

ECM Wiring Diagram - Part 6:
