Engine Data Display

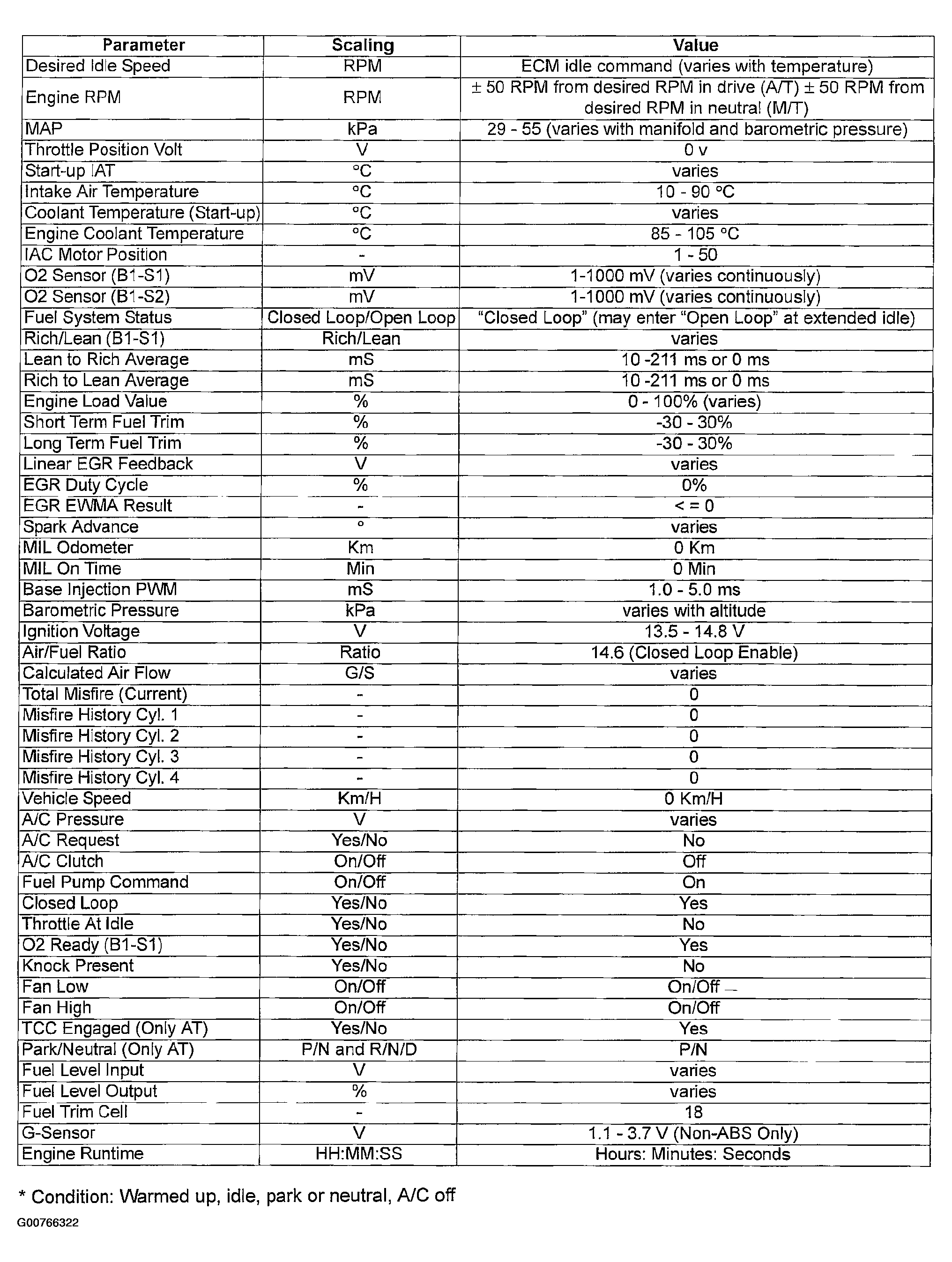

Fig 1: Engine Data Display Chart
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
