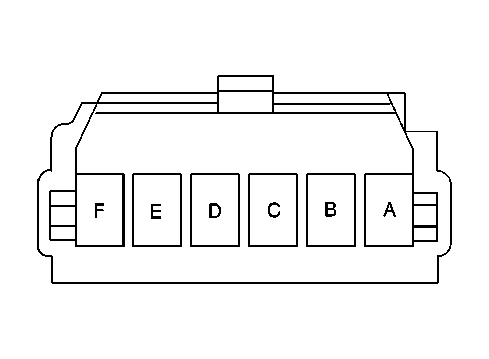

Lamp Driver Module Connector End Views

Lamp Driver Module (DBC7 ABS)

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		AK 36636 6-Way P/C Edgeboard - Standard (GY)
Pin	Wire Color	Circuit No.	Function
A	BN/WH	133	Park Brake Switch Signal
B	RD	241	Ignition 3 Voltage
C	GY	875	Base Brake Failure Signal
D	BK	450	Ground
E	PU	867	ABS Indicator Failure Control
F	D-BU	874	ABS Indicator Signal

Lamp Driver Module (Mando ABS)

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		AK 368530-1 6-Way F Econoseal J-Mark II + 6P (BK)
Pin	Wire Color	Circuit No.	Function
1	BK	50	Ground
2	RD	242	Battery Positive Voltage
3	BN	33	Brake Warning Indicator Control
4	-	-	Not Used
5	GY	875	Base Brake Failure Signal
6	L-GN	867	ABS Failure Indicator Signal
