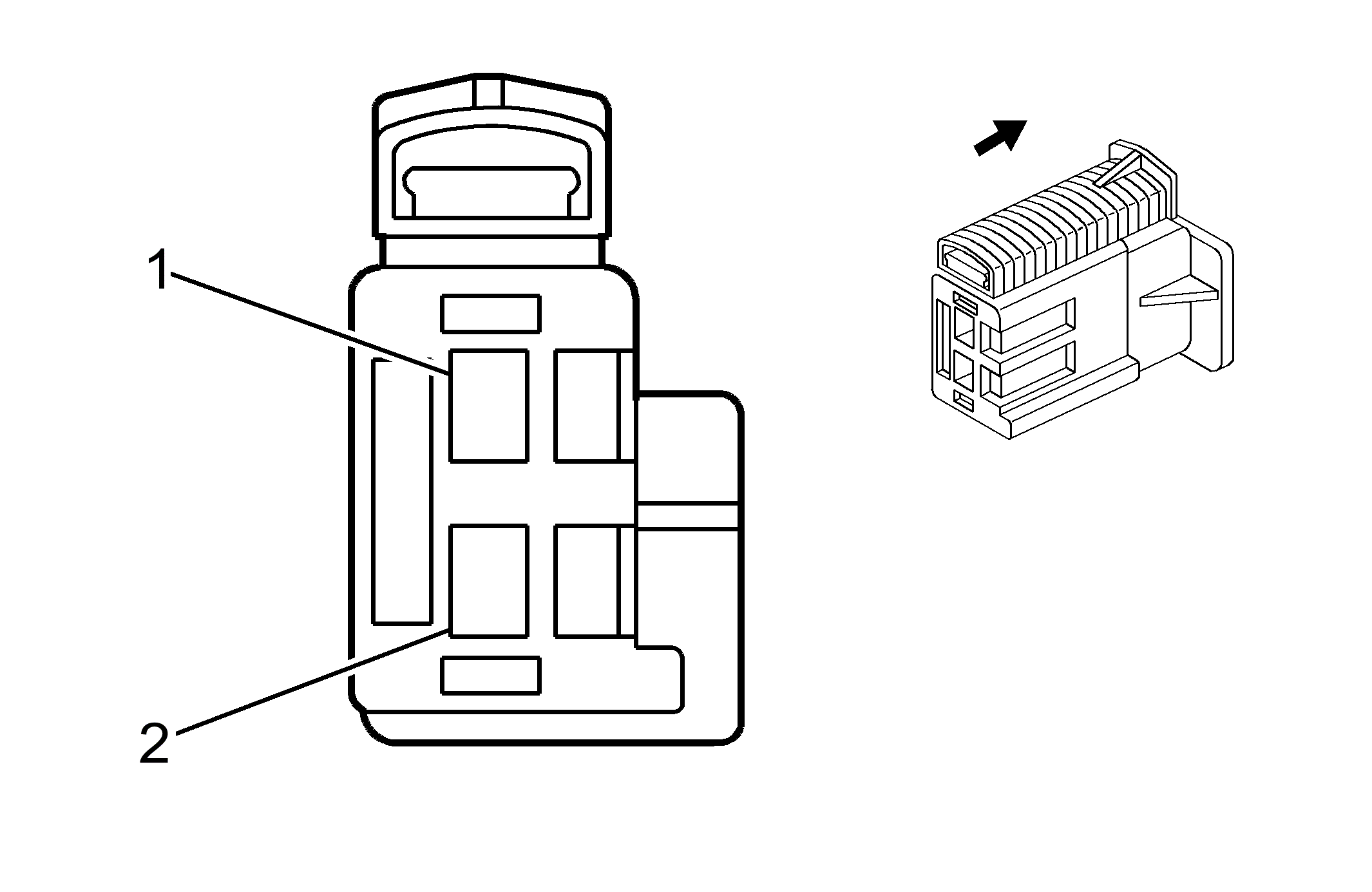

Inflatable Restraint I/P Module Connector End View
Inflatable Restraint I/P Module
 Courtesy of GENERAL MOTORS CORP.
|
| Connector Part Information |
- FC 160201704
- 2-Way Connector (YE)
|
| Pin |
Wire Color |
Circuit No. |
Function |
| 1 |
D-GN |
347 |
Instrument Panel Module - High Control |
| 2 |
BN |
348 |
Instrument Panel - Low Control |
