Engine Electrical Component Views

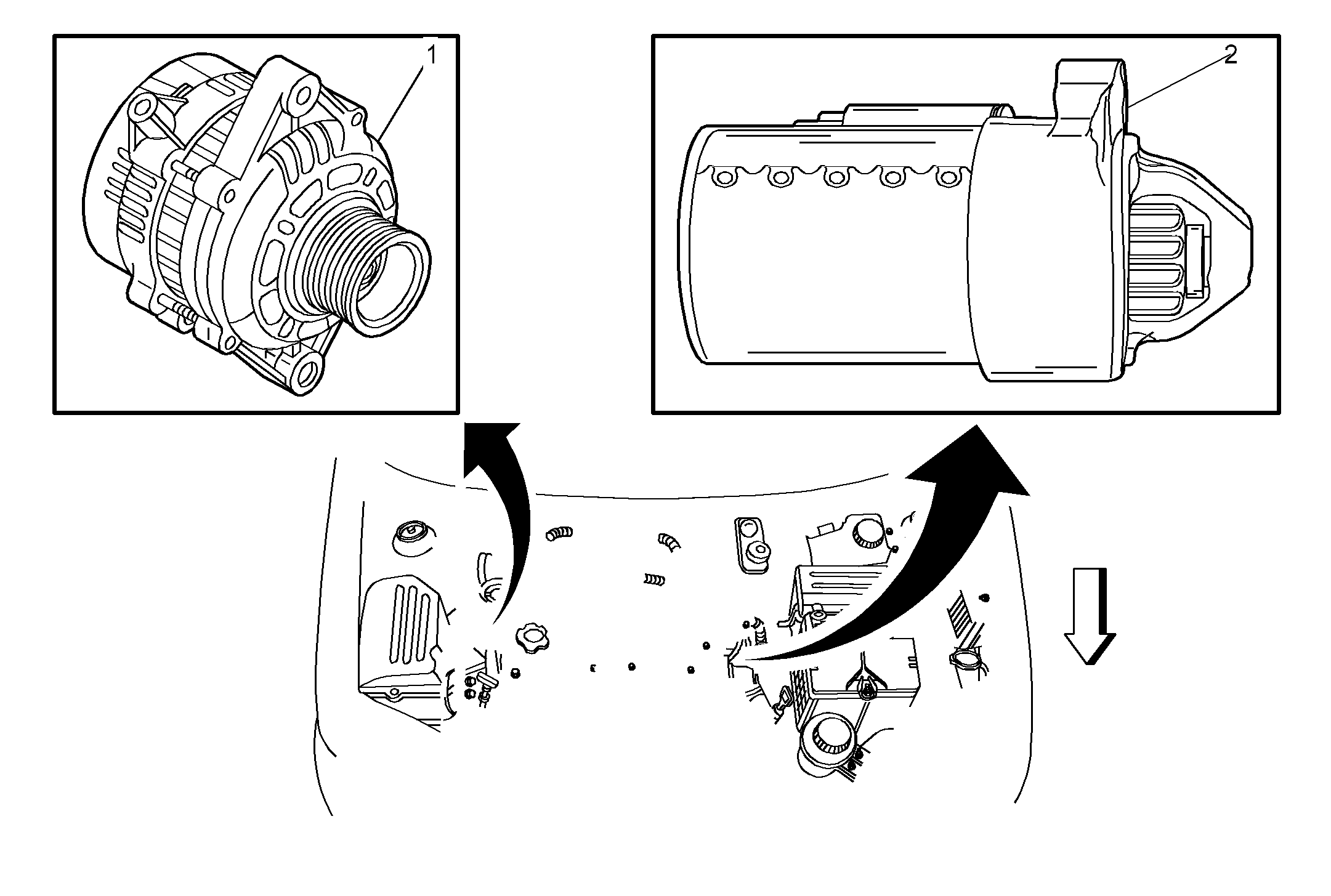

Fig 1: Generator and Starter Component Views
GM1467214Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Generator
2 Starter

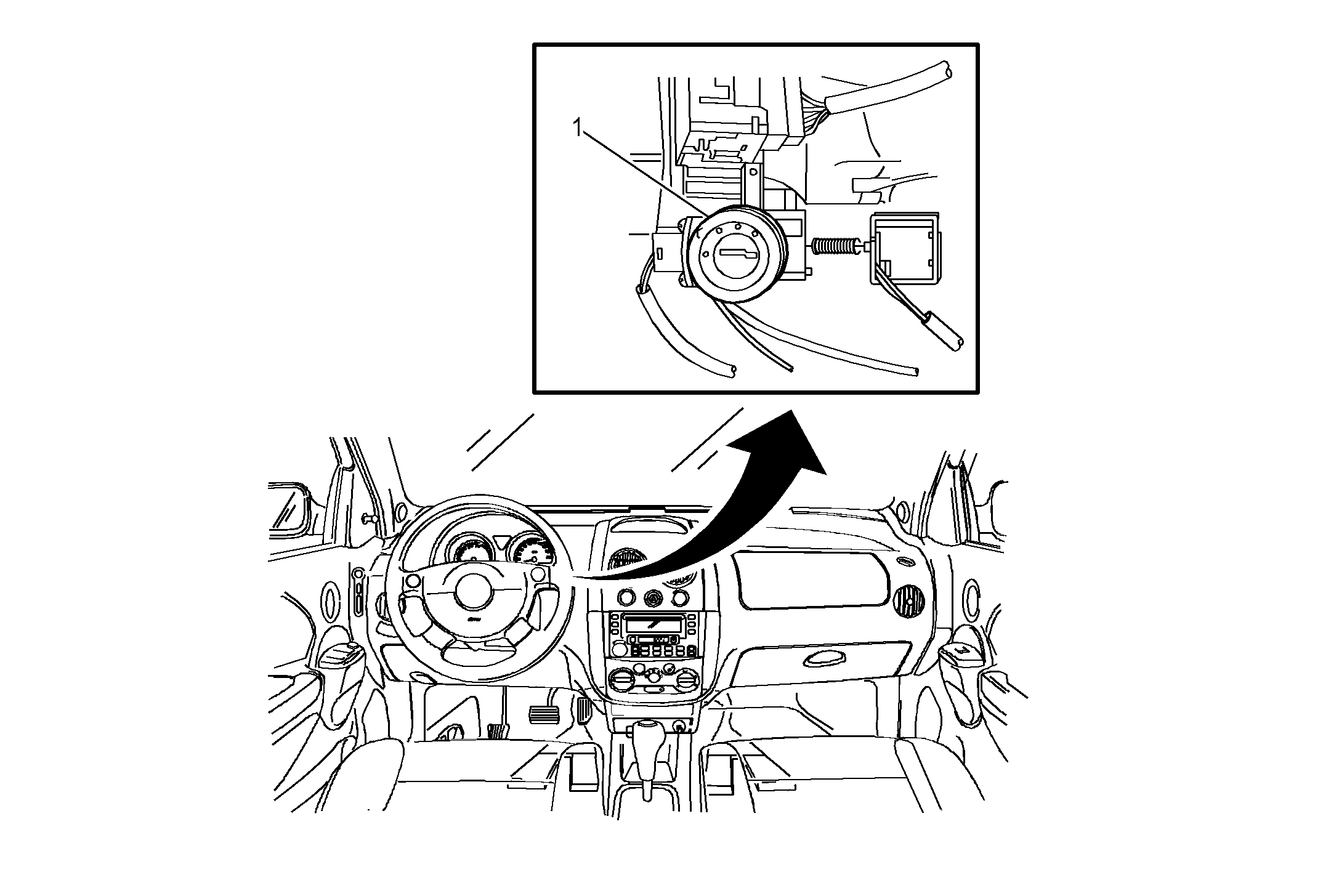

Fig 2: Ignition Switch Component Views
GM1495955Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Ignition Switch
Fig 3: I/P Fuse Block Component Views
GM1495957Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Ignition Lock Module (North America)
1 Rear Fog Relay (LHD - w/Rear Fog)
2 Defog Relay (RHD)
2 Turn Signal/Hazard Flasher (LHD)
3 Wiper Relay
4 Park/Neutral Position (PNP) Relay (RHD)
4 Daytime Relay Lamp (DRL) Relay (Scandanavian)
5 Blink Relay
6 Blower Relay
7 Turn Signal/Hazard Flasher (RHD)
7 Park/Neutral Position (PNP) Relay (LHD)
8 Defog Relay (LHD)
8 Rear Fog Relay (RHD)
9 Fuse Block - I/P
Fig 4: Starter Motor Assembly 1.4/1.5L SOHC And 1.4/1.6L DOHC Component Views
GM1291917Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Starter Motor Assembly
2 Starter Solenoid Assembly
3 Starter Housing
4 Shift Lever
5 Armature Set
6 Armature
7 Pinion Gear Assembly
8 Ring Set
9 Field Frame Assembly
10 Brush Holder Assembly
11 Contact End Frame Assembly
12 Starter Through-Bolts
Fig 5: Generator Assembly 1.4/1.5L SOHC & 1.4/1.6L DOHC Component Views
GM1282553Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Generator Assembly
2 Generator Drive End Nut
3 Generator Pulley
4 Generator Collar
5 Generator Front Bracket
6 Front Bearing
7 Generator Stator Assembly
8 Fan
9 Generator Rotor Assembly
10 Generator Rear Bracket
11 Rectifier Assembly
12 Cover
13 Voltage Regulator/Brush Holder Assembly
