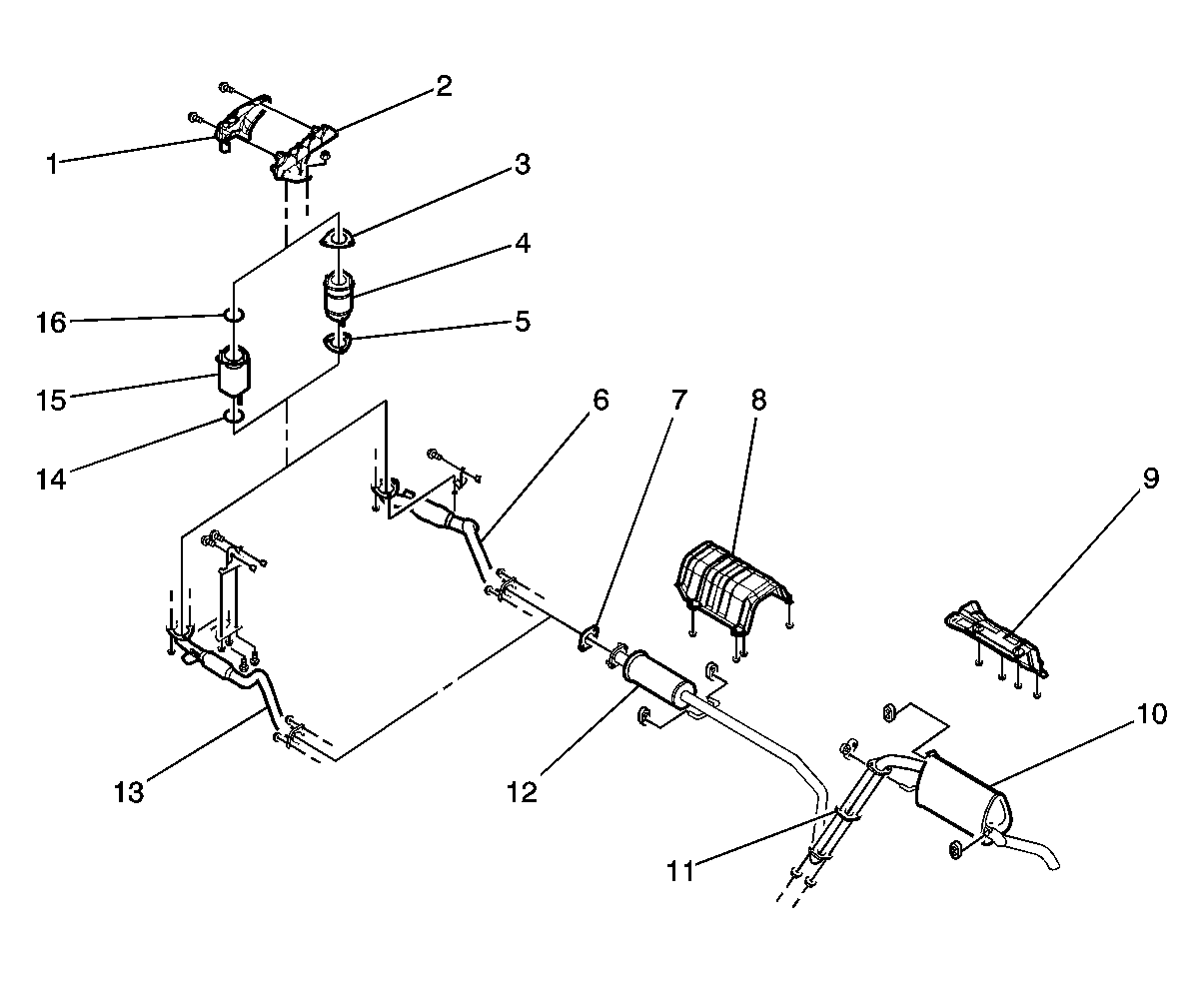

| 1 |
Exhaust Manifold Shield |
| 2 |
Exhaust Manifold |
| 3 |
Exhaust Front Pipe Gasket (Upper) |
| 4 |
Exhaust Pup Converter (1.4/1.5L SOHC and 1.4/1.6L DOHC) |
| 5 |
Exhaust Front Pipe Gasket (Lower) |
| 6 |
Muffler Gasket |
| 7 |
Exhaust Front Pipe (1.4/1.5L SOHC and 1.4/1.6L DOHC) |
| 8 |
Underbody Protective Shield (Front Muffler) |
| 9 |
Underbody Protective Shield (Rear Muffler) |
| 10 |
Exhaust Rear Muffler |
| 11 |
Muffler Gasket |
| 12 |
Exhaust Front Muffler |
| 13 |
Exhaust Front Pipe (1.2L SOHC) |
| 14 |
Pup Converter Gasket (Lower) |
| 15 |
Exhaust Pipe Converter (1.2L SOHC) |
| 16 |
Pup Converter Gasket (Upper) |
