Lighting Systems Component Views

WARNING: This page is about a different car, the 2005 Suzuki Swift +, 2005 Pontiac Wave, and 2005 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

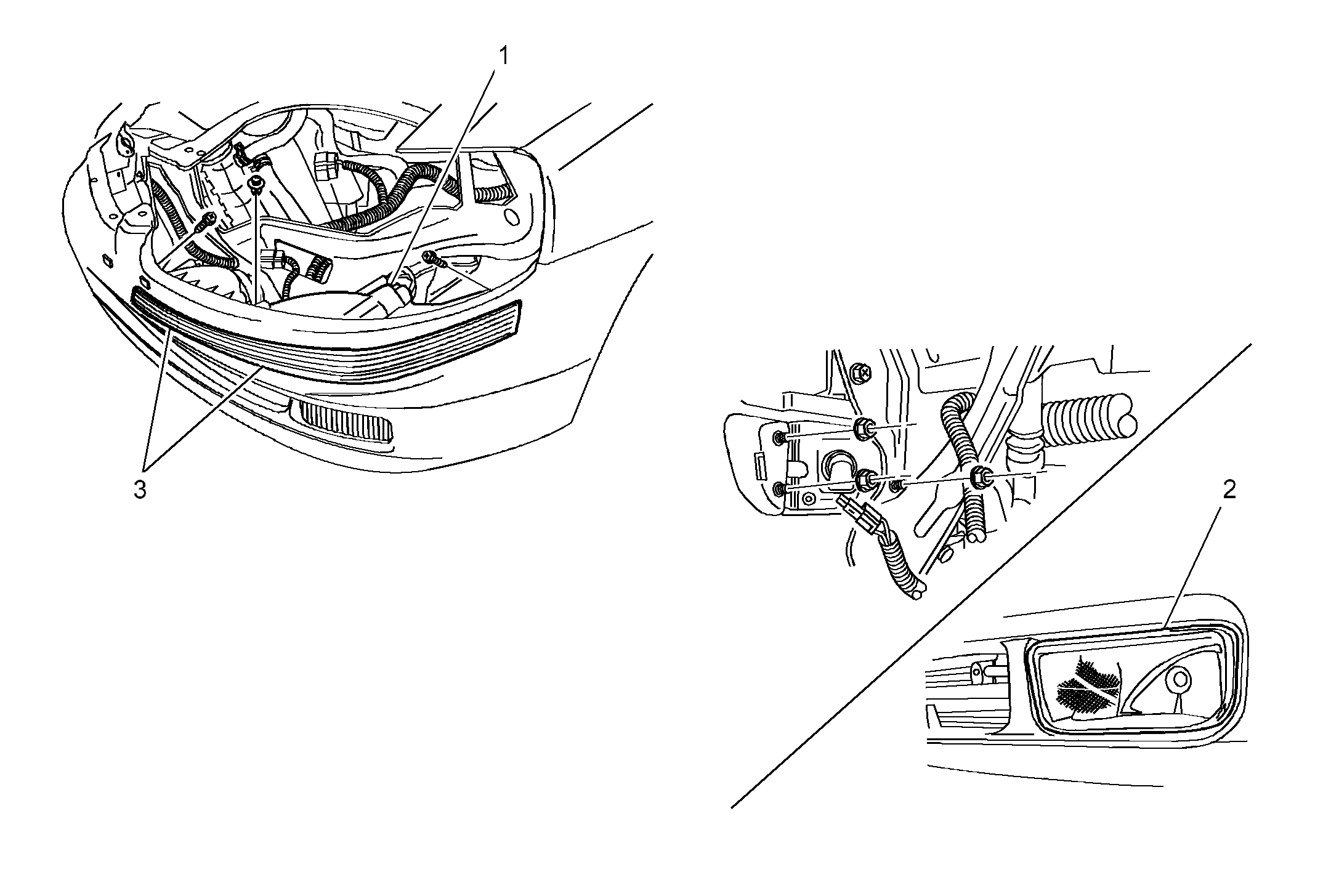

Fig 1: Front Turn Signal and Fog Lamps Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Turn Signal Lamp Assembly (Left Side Shown, Right Side Similar)
2	Fog Lamp (Left Side Shown, Right Side Similar)
3	Park/Turn Signal Lamp (North America - Left Side Shown, Right Side Similar)

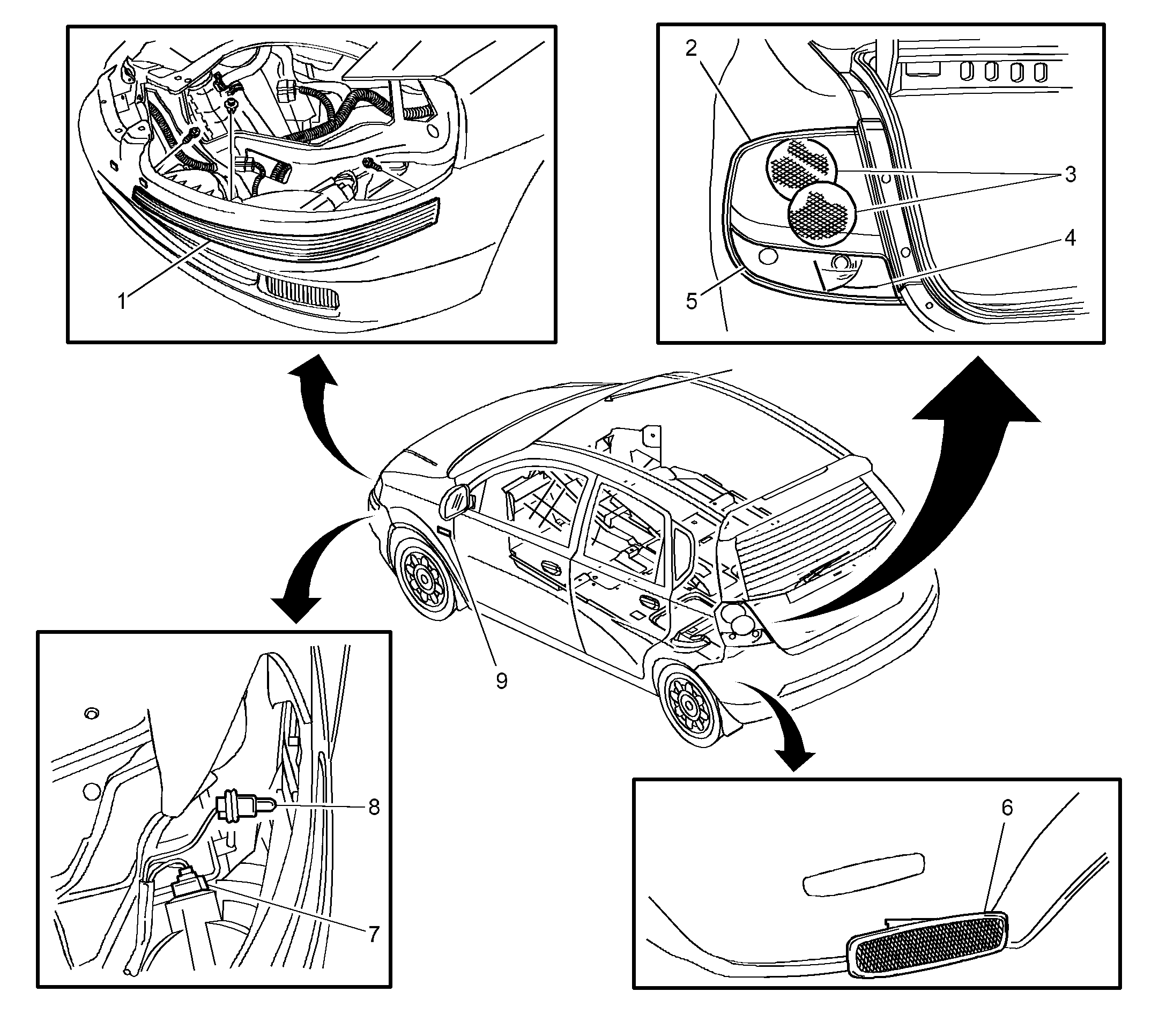

Fig 2: Exterior Lamps Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Turn Signal Lamp Assembly - Front (Left Side Shown, Right Side Similar)
2	Tail Lamp Assembly (Left Side Shown, Right Side Similar)
3	Tail/Stop Lamps (Left Side Shown, Right Side Similar)
4	Backup Lamp/Rear Fog Lamp (Left Side Shown, Right Side Similar)
5	Turn Signal Lamp - Rear (Left Side Shown, Right Side Similar)
6	Side Marker Lamp - Rear (Left Side Shown, Right Side Similar)
7	Park/Turn Signal Lamp - Front (Left Side Shown, Right Side Similar)
8	Side Marker Lamp - Front (Left Side Shown, Right Side Similar)
9	Turn Signal Repeater Lamp (Left Side Shown, Right Side Similar)

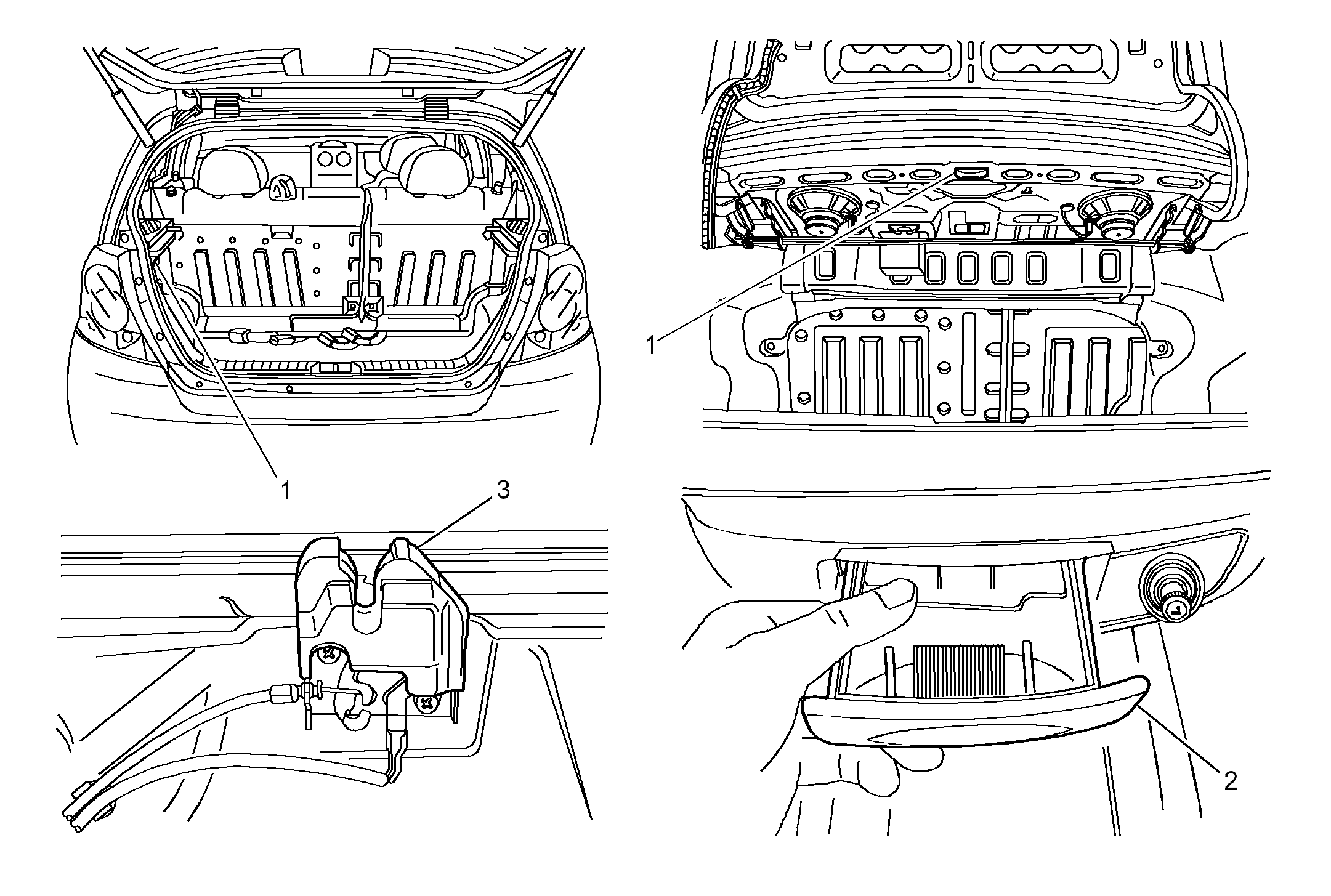

Fig 3: Ashtray and Rear Compartment Lamp Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Compartment Lamp
2	Ashtray Lamp (Optional)
3	Rear Compartment Lid Switch

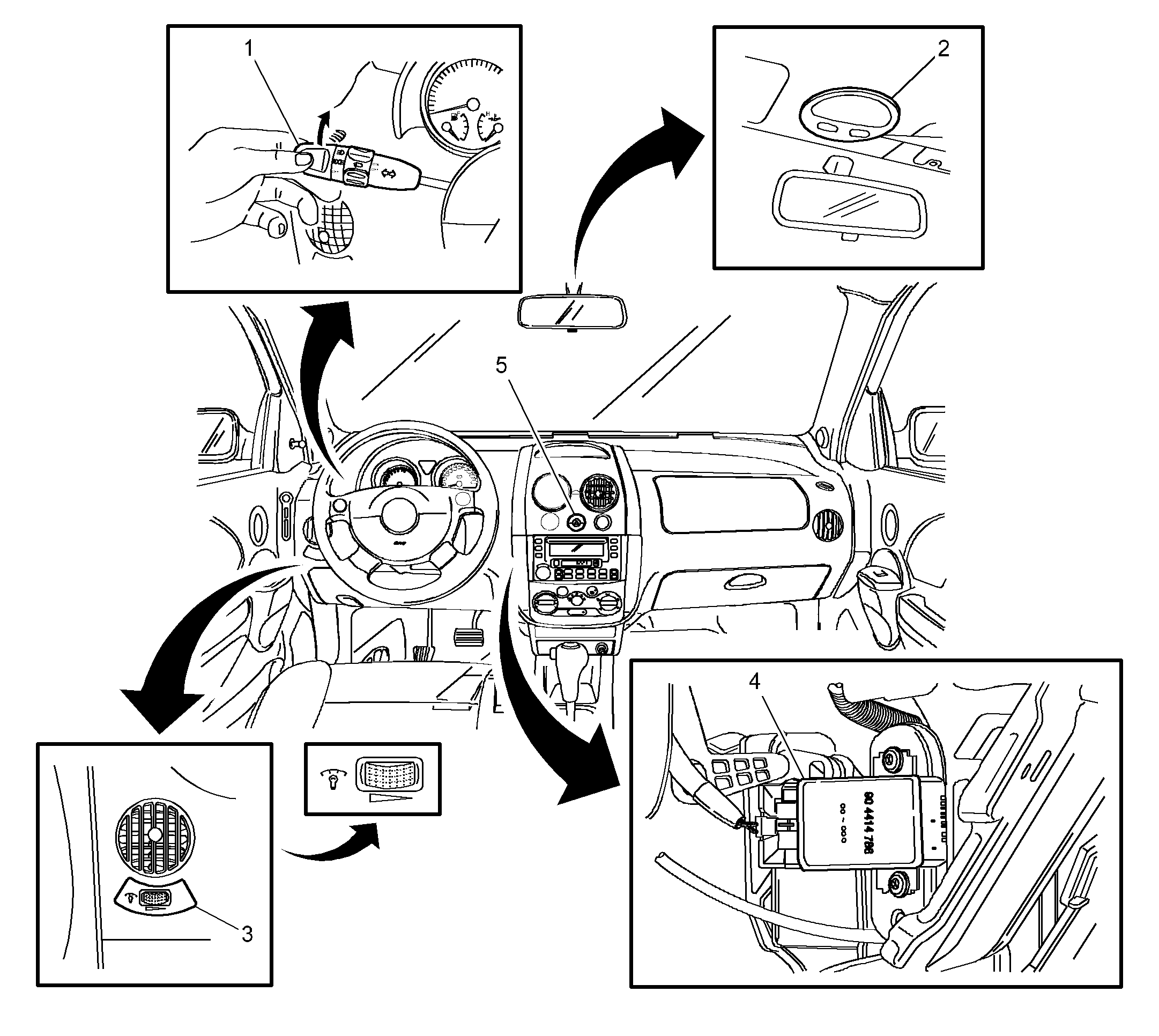

Fig 4: Headlamp Switch, I/P Dimmer Switch, Dome Lamp, Daytime Running Lamps (DRL) Module Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Headlamp Switch, Turn Signal Switch
2	Dome Lamp
3	I/P Dimmer Switch
4	Daytime Running Lamps (DRL) Control Module
5	Hazard Switch

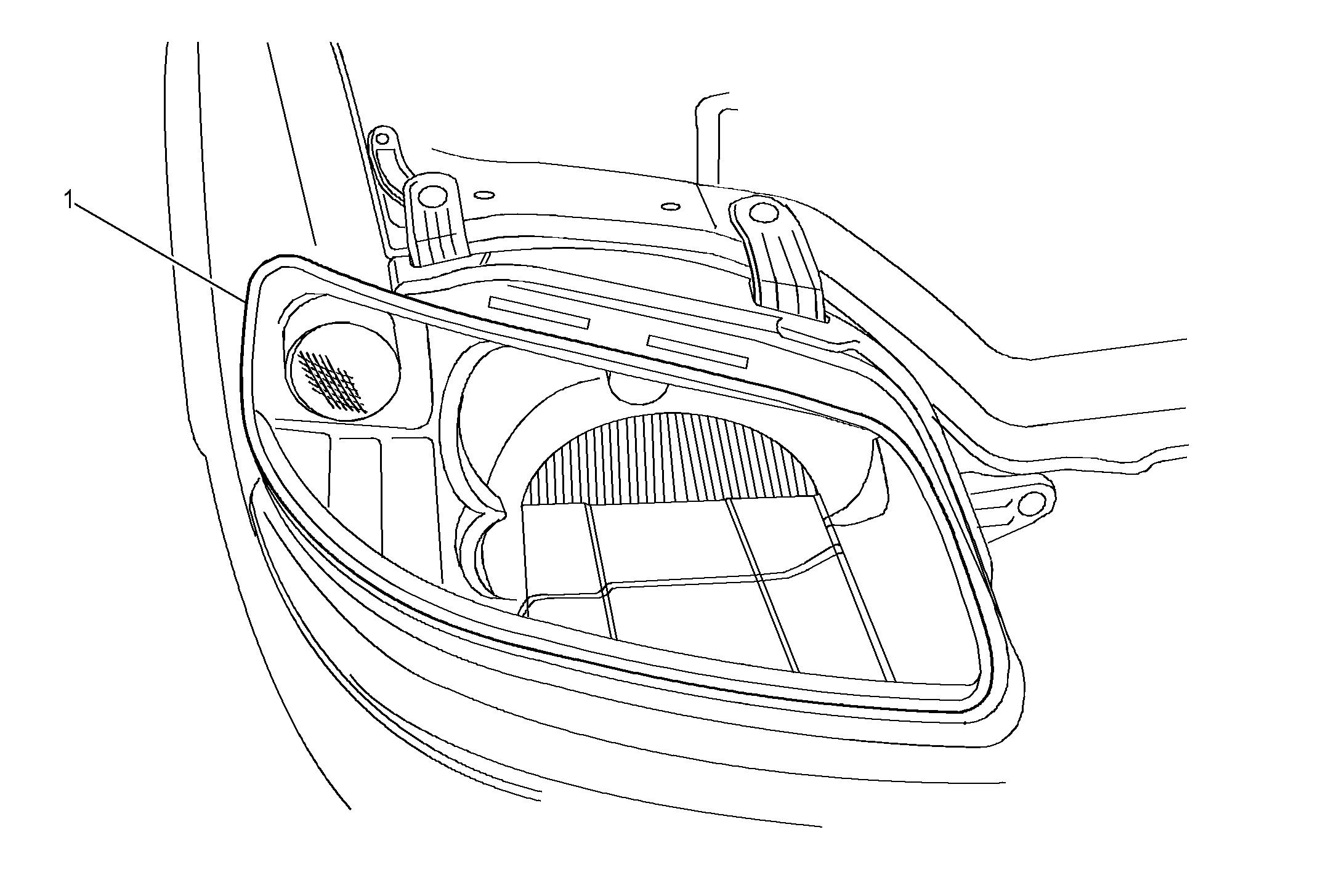

Fig 5: Headlamps Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Headlamp (Right Side Shown, Left Similar)

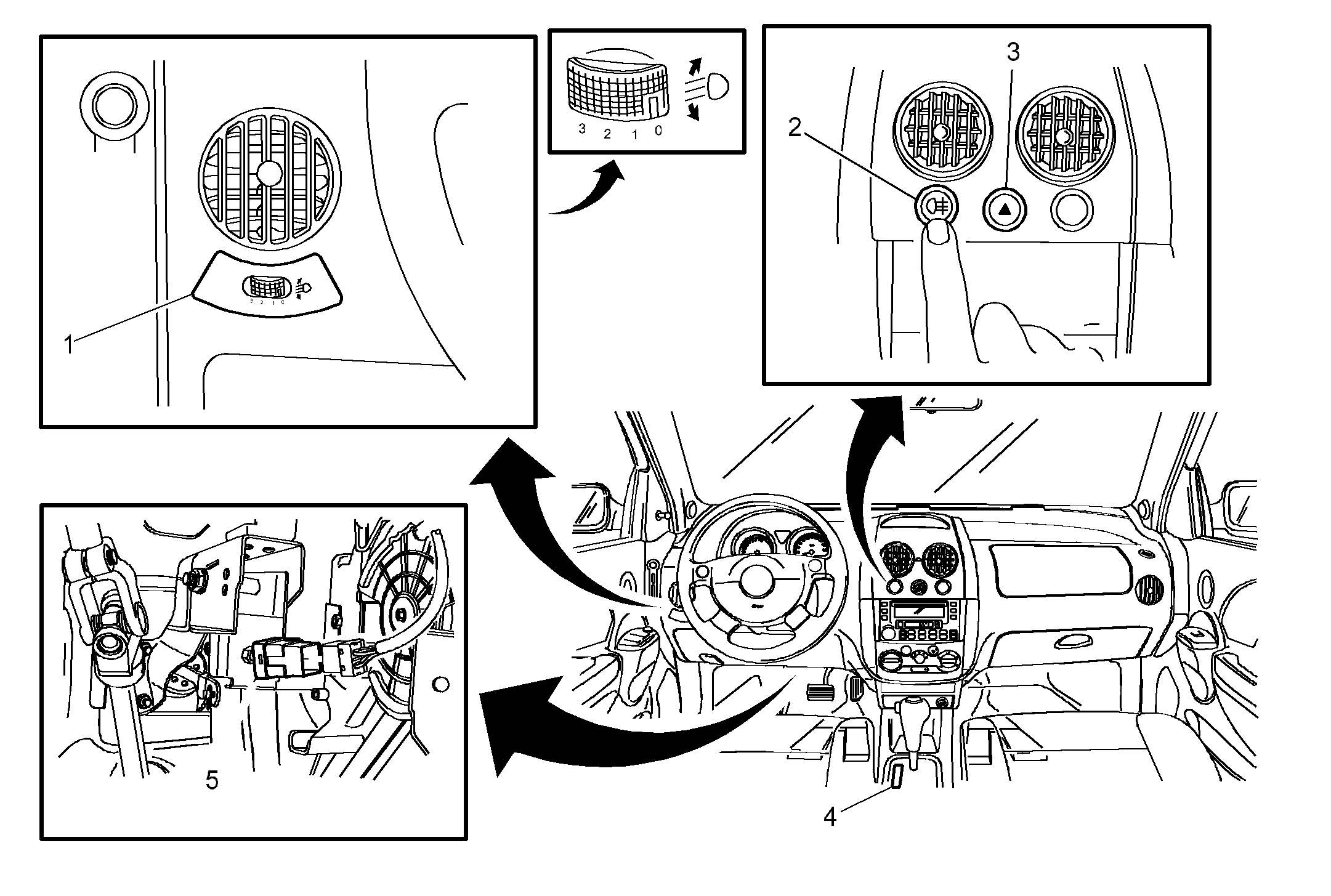

Fig 6: Rear Fog Lamp and Headlamp Level Switches (Except North America) Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Headlamp Level Switch (Except North America)
2	Fog Lamp Switch - Rear (Except North America)
3	Shift Indicator Lamp
4	Stop Lamp Switch

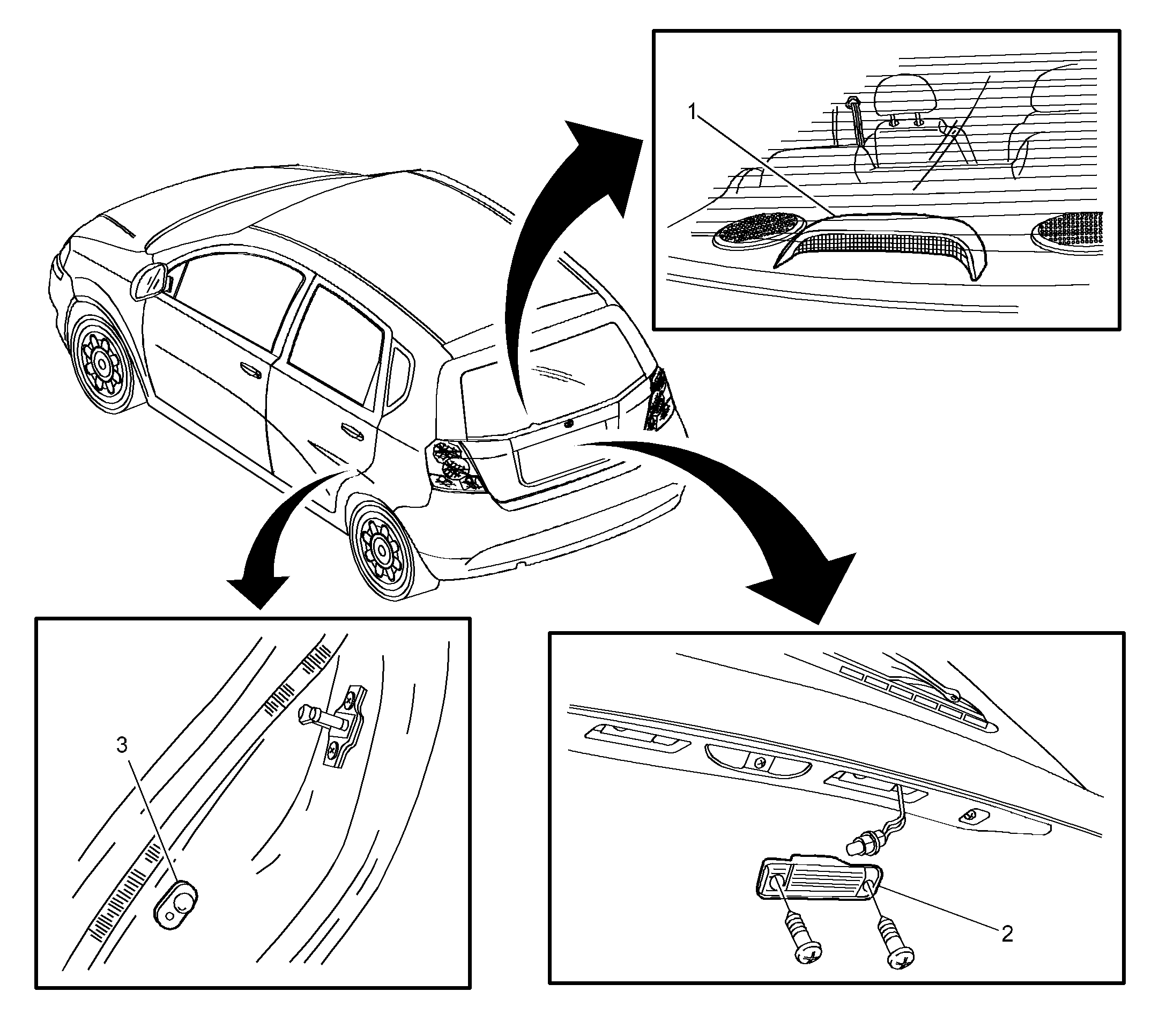

Fig 7: CHMSL and License Lamps Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Center High Mounted Stop Lamp
2	License Plate Lamp
3	Door Jamb Switch - (Left Rear Shown, Right Rear and Front Switches Similar)

Fig 8: I/P Components Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Multifunction Alarm Module
2	Ignition Key Alarm Switch
3	Defogger Switch
4	Clock/Tele Tail
5	Cluster
6	Radio
7	Tweeter Right/Left Similar
8	Cigar Lighter
9	Wiper Switch
10	Blower Switch
11	Horn Switch
12	Headlamp Switch

Fig 9: I/P Fuse Block Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Ignition Lock Module (North America)
1	Rear Fog Relay (LHD - w/Rear Fog)
2	Defog Relay (RHD)
2	Turn Signal/Hazard Flasher (LHD)
3	Wiper Relay
4	Park/Neutral Position (PNP) Relay (RHD)
4	Daytime Relay Lamp (DRL) Relay (Scandinavian)
5	Blink Relay
6	Blower Relay
7	Turn Signal/Hazard Flasher (RHD)
7	Park/Neutral Position (PNP) Relay (LHD)
8	Defog Relay (LHD)
8	Rear Fog Relay (RHD)
9	Fuse Block - I/P
